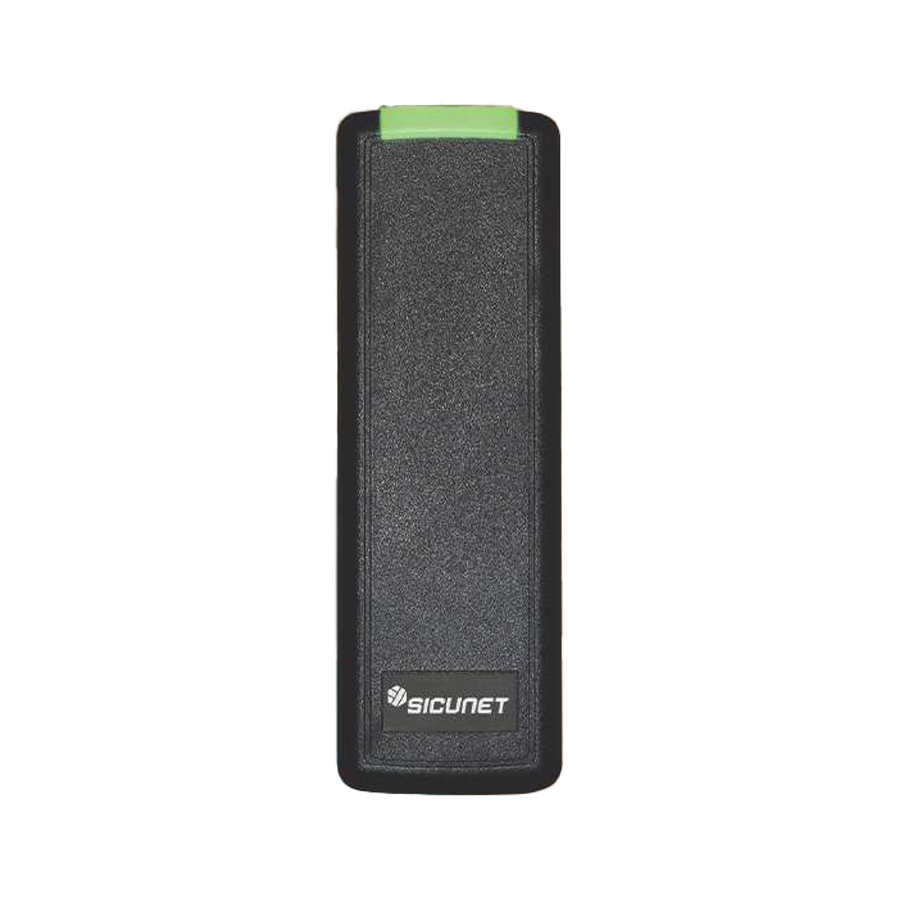

Sicunet Inc. SC-ET10 Mullion Reader with Prox + HF + Bluetooth Low Energy offers a cutting-edge solution for modern access control needs. This versatile reader supports multiple technologies, including Proximity (125 kHz), Smart (13.56 MHz), NFC, and Bluetooth Low Energy (BLE), allowing for a smooth transition to secure credentials and systems. Designed for both indoor and outdoor environments, the SC-ET10 boasts an IP55 rating, ensuring reliable performance under various conditions. Its Automatic Credential Issuance (ACI) feature simplifies the management of mobile credentials, enabling administrators to issue invites with just one click, significantly reducing total cost of ownership (TCO). The reader is equipped with OSDP Secure channel and remote firmware upgradability, offering enhanced security and adaptability. It supports legacy proximity credentials for seamless integration into existing systems, while the tri-state LED light bar and audible beeper provide clear user feedback. With a compact design of 5.1" x 1.7" x 0.71", the SC-ET10 is easy to install and operate, requiring no transformers. Its performance is further enhanced with models designated for long-range operation, reaching up to 25 feet. Backed by a lifetime warranty, this reader is a reliable choice for any access control application.

Mullion Reader with Prox + HF + Bluetooth Low Energy

Automated credential issuance ACI and complete line of readers seamlessly allows administrators to send mobile credentials with "one click" invitation. ACI is easy and reduces the total cost of ownership "TCO" by dramatically reduces the time managing credential and issuance. Sicunet's line of multi-technology contactless access control readers offer a modern aesthetic and a state-of-the-art feature set. Reader RF options include Proximity (125 kHz), Smart (13.56 MHz), NFC, and Bluetooth, so that customers can set their migration path to secure credentials and security ecosystems.

Features:

• Automatic credential issuance "ACI" seamlessly issues and auto populates system
• Multiple technologies in a single reader: Proximity, smart, NFC, & BLE
• OSDP Secure channel and remote firmware upgradability
• FSK and ASK legacy proximity credentials support for seamless transitions
• Designs to meet harshest indoor and outdoor installation environments
• OSDP auto-detect
• MiFare DESFire EV1 & EV2 support
• Tri-State LED light bar (red, green, amber) and audible beeper
• No transformers required
• You do not need to open or jester just present the phone within range
• Models designated with "L" are long range 15ft. and 25ft

Specifications:

• Model: ET10
• Style: Mullion
• Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, BIS IS 13252
• Environment: In/outdoor - IP55 Rated
• RF Technologies: 125 KHz & 13.56 MHz & Mobile
• Voltage: 106 mA average, 144 mA peak
• Current: 5 - 16 V DC
• Temp Range: UL tested - 35° to 66° C and EN - 40° C to 70° C and 95% humidity
• BLE Range: Standard 3" - 4"
• BLE Range: Long "L" 15ft - 25ft
• Dimensions: 5.1" x 1.7" x 0.71"
• Read Range: EV1: 1.2", EV2: 2.2", 125 KHz up to 4"
• Output: Wiegand, OSDP
• Warranty: Lifetime
