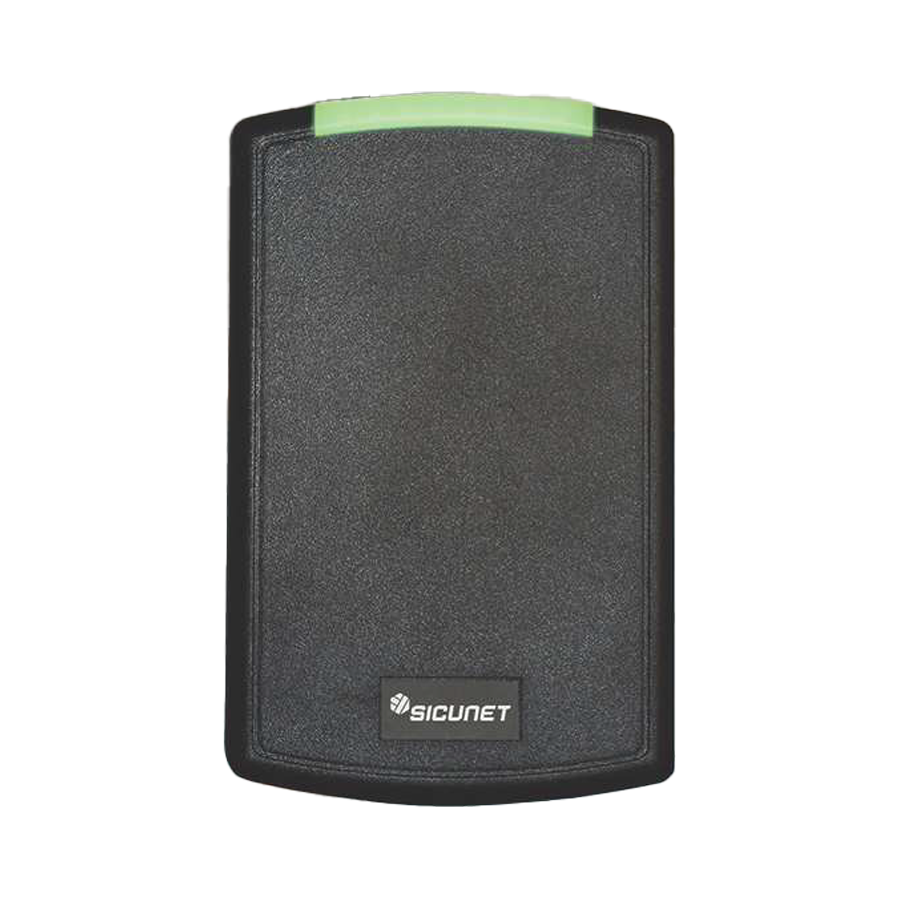

Sicunet SC-ET20 Single Gang Reader with Prox + HF + Bluetooth Low Energy

Sicunet Inc. SC-ET20 Single Gang Reader with Prox + HF + Bluetooth Low Energy offers a cutting-edge solution for modern access control needs. Designed for both indoor and outdoor environments, this versatile reader supports multiple RF technologies, including Proximity (125 kHz), Smart (13.56 MHz), NFC, and Bluetooth Low Energy (BLE). This capability allows users to effortlessly transition to secure credentials while maintaining a streamlined security ecosystem. The SC-ET20 features Automated Credential Issuance (ACI), enabling administrators to issue mobile credentials with a simple "one click" invitation, significantly reducing the total cost of ownership. Its robust design meets the demands of harsh conditions, ensuring reliability and performance. With OSDP Secure channel support and remote firmware upgradability, the reader adapts to evolving security requirements. Additional highlights include a tri-state LED light bar for clear user feedback and an audible beeper for enhanced interaction. The reader operates efficiently without the need for transformers, and its BLE range capabilities offer both standard and long-range options, accommodating various access needs. Measuring 5.1" x 3.25" x 0.71", the SC-ET20 is compact yet powerful, making it an ideal choice for professionals seeking a reliable access control solution. Certified by FCC, IC, CE, and UL, it ensures compliance with industry standards.

Single Gang Reader with Prox + HF + Bluetooth Low Energy

Automated credential issuance ACI and complete line of readers seamlessly allows administrators to send mobile credentials with "one click" invitation. ACI is easy and reduces the total cost of ownership "TCO" by dramatically reduces the time managing credential and issuance. Sicunet's line of multi-technology contactless access control readers offer a modern aesthetic and a state-of-the-art feature set. Reader RF options include Proximity (125 kHz), Smart (13.56 MHz), NFC, and Bluetooth, so that customers can set their migration path to secure credentials and security ecosystems.

Features:

• Automatic credential issuance "ACI" seamlessly issues and auto populates system
• Multiple technologies in a single reader: Proximity, smart, NFC, & BLE
• OSDP Secure channel and remote firmware upgradability
• FSK and ASK legacy proximity credentials support for seamless transitions
• Designs to meet harshest indoor and outdoor installation environments
• OSDP auto-detect
• MiFare DESFire EV1 & EV2 support
• Tri-State LED light bar (red, green, amber) and audible beeper
• No transformers required
• You do not need to open or jester just present the phone within range
• Models designated with "L" are long range 15ft. and 25ft

Specifications:

• Model: ET20
• Style: Single gang.
• Environment: In/outdoor.
• RF Technologies: 125 KHz & 13.56 MHz & mobile.
• Voltage: 118 mA average, 169 mA peak.
• Current: 5 - 16 V DV.
• Temp Range: UL tested - 35° to 66° C and EN - 40° C to 70° C and 95% humidity.
• BLE Range: Standard 3" - 4"
• BLE Range: Long "L" 15ft - 25ft
• Dimensions: 5.1" x 3.25" x 0.71"
• Read Range: EV1: 1.5", EV2: 2.5", 125 KHz up to 4"
• Output: Lifetime.
• Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, BIS IS 13252.
