Sicunet Inc. SC-ET25 Keypad Reader with Prox + HF + Bluetooth Low Energy offers a robust solution for modern access control needs. This multi-technology reader supports proximity (125 kHz), smart (13.56 MHz), NFC, and Bluetooth Low Energy, enabling customizable migration paths towards enhanced security credentials. With Automatic Credential Issuance (ACI), administrators can effortlessly manage mobile credentials with just a single click, significantly reducing total cost of ownership by streamlining credential data management. Designed for both indoor and outdoor environments, the SC-ET25 boasts an IP55 rating, ensuring durability against harsh conditions. The reader features OSDP secure channel capabilities and remote firmware upgradability, providing advanced security and future-proofing. The tri-state LED light bar, along with an audible beeper, gives clear visual and audio feedback during operation. With dimensions of 5.1" x 3.25" x 0.71", the SC-ET25 is compact yet powerful, operating within a temperature range of -35° to 66° C. It supports legacy proximity credentials for seamless integration into existing systems. The SC-ET25 is backed by a 3-year warranty and meets multiple certifications, including FCC, CE, and UL 294, ensuring compliance with industry standards. Upgrade your access control system with the Sicunet SC-ET25, where technology meets reliability.

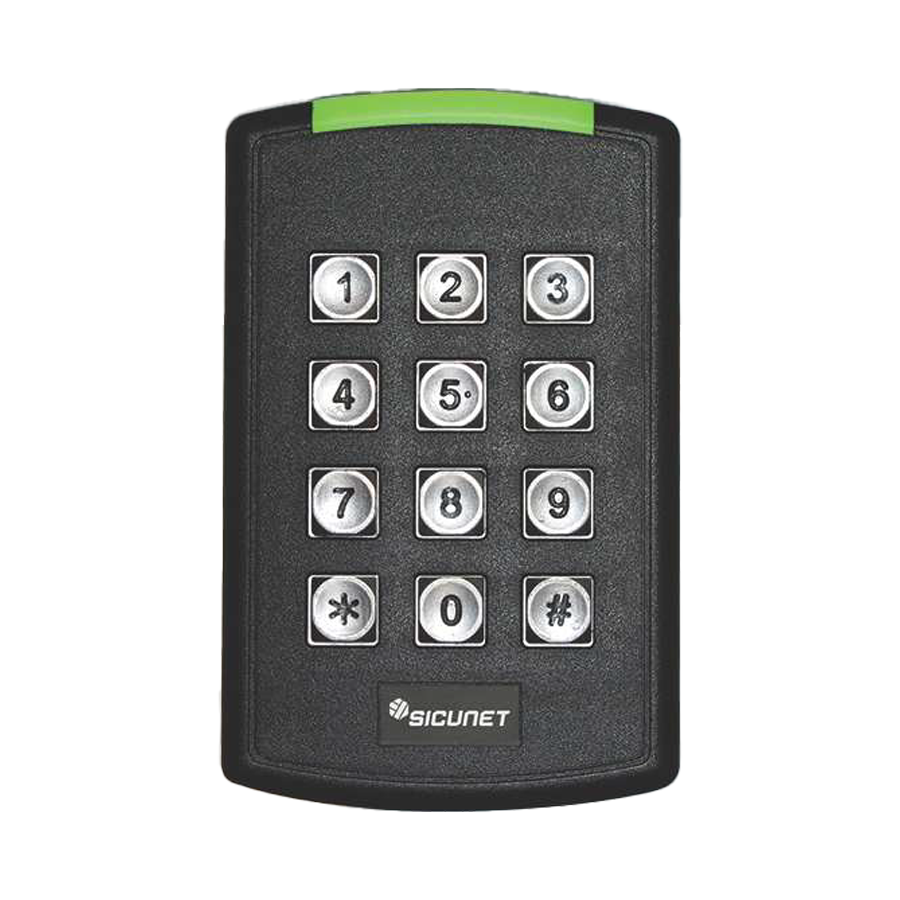

Keypad Reader with Prox + HF + Bluetooth Low Energy

Automated credential issuance ACI and complete line of readers seamlessly allows administrators to send mobile credentials with "one click" invitation. ACI is easy and reduces the total cost of ownership "TCO" by dramatically reduces the time managing credential data and issuance. Sicunet's line of multi-technology contactless access control readers offers a modern aesthetic and a state-of-the-art feature set. Reader RF options include proximity (125 kHZ), smart (13.56 MHz), NFC, and Bluetooth, so that customer can set their migration path to secure credentials and security eco-systems.

Features:

• Automatic credential issuance "ACI" seamlessly issues and auto populates system
• Multiple technologies in a single reader: Proximity, smart, NFC, & BLE
• OSDP Secure channel and remote firmware upgradability
• FSK and ASK legacy proximity credentials support for seamless transitions
• Designs to meet harshest indoor and outdoor installation environments
• OSDP auto-detect
• MiFare DESFire EV1 & EV2 support
• Tri-State LED light bar (red, green, amber) and audible beeper
• No transformers required
• You do not need to open or jester just present the phone within range
• Models designated with "L" are long range 15ft. and 25ft

Specifications:

• Model: ET25
• Style: Single gang with keypad
• Environment: In/outdoor - IP55 rated
• RF Technologies: 125 KHz & 13.56 MHz & mobile
• Voltage: 118 mA average, 169 mA peak
• Current: 5 - 16 V DC
• Temp Range: UL™ tested - 35° to 66° C and EN - 40° C to 70° C and 95% humidity
• BLE Range: Standard 3" - 4"
• BLE Range: Long "L" 15ft - 25ft
• Dimensions: 5.1" x 3.25" x 0.71"
• Read Range: EV1: 1.5", EV2: 2.5", 125 KHz up to 4"
• Output: Wiegand, OSDP
• Warranty: 3 Years
• Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, BIS IS 13252
