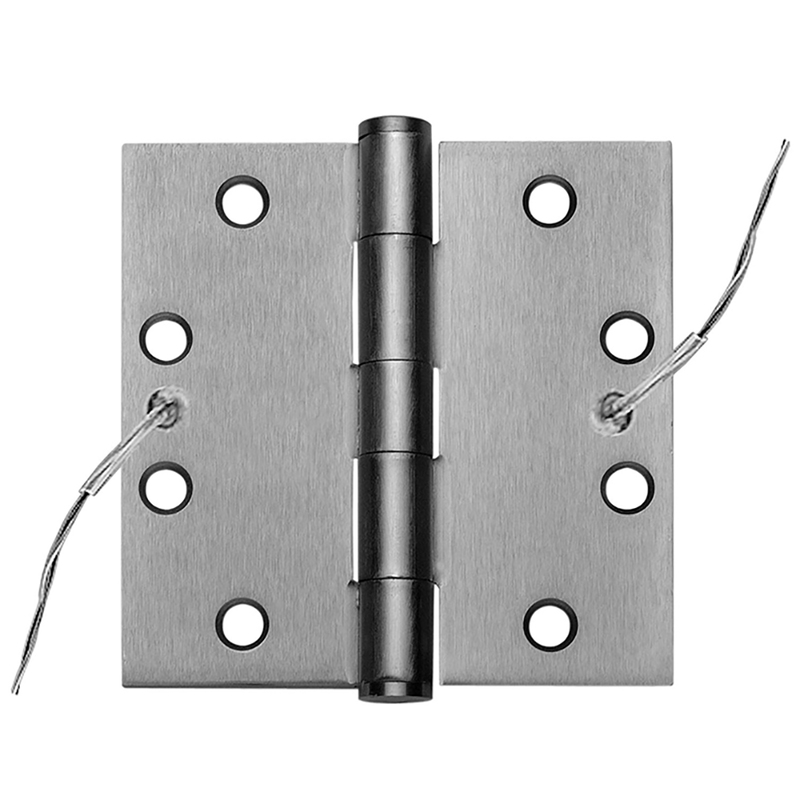

Stanley CECB168-18 4-1/2X4-1/2 26D Concealed Bearing Hinge

Stanley Security CECB168-18 4-1/2X4-1/2 26D Concealed Bearing HW Hinge offers a robust solution for both commercial and residential applications. Crafted from heavy-duty steel, this five-knuckle concealed conductor architectural hinge ensures long-lasting performance and durability. With dimensions of 4-1/2 inches by 4-1/2 inches and a full mortise design, it seamlessly integrates into doors while providing exceptional strength. The hinge features a concealed bearing system, enhancing its aesthetic appeal by eliminating visible hardware. Finished in a sleek satin chrome (626/US26D), it not only complements modern architecture but also stands up to the rigors of daily use. Designed for commercial installation, the CECB168-18 hinge supports power transfer capabilities with 2-18GA and 6-28GA wiring, making it ideal for electrified applications. Weighing in at a hefty 1 lb, this hinge delivers reliable support and stability. Packaged individually, it measures 6.75 inches in length, 3.5 inches in height, and 3.25 inches in width, making it convenient for transport and storage. Trust Stanley Security’s suite of electrified hinges to enhance the functionality and security of your building’s entryways.

Concealed Bearing HW Hinge

Five Knuckle Concealed Conductor Architectural Hinge, Steel, Full Mortise, Heavy Weight, 4-1/2" by 4-1/2", Square Corner, 8-Wire, Satin Chrome

Five Knuckle Concealed Conductor Architectural Hinge, Steel Full Mortise, Heavy Weight, 4-1/2" by 4-1/2", Square Corner, 8 Wire, Satin Chrome

Stanley manufacturers a suite of Electrified Hinges to fit any application.

Resources

• Hinge Installation
• Hinge Size Chart
• Stanley Electrified Hinges Cut Sheet
• Stanley Hinges Catalog
