Starlite Security Devices LLC AD-410 Mini Split AC Adaptor 1/4-5/16 is an essential accessory for connecting your TW-8100 unit to mini-split air conditioning systems. Unlike standard HVAC systems that utilize 1/4 inch service valves, mini-split air conditioners require a 5/16 inch service valve to differentiate the refrigerant types. The AD-410 adaptor facilitates this connection seamlessly, ensuring compatibility and optimal performance. Installation is straightforward; simply connect the TW-8100 to the mini-split adaptor, applying a small dot of leak lock on the male threads of both the adaptor and the service valve prior to making the connection. It’s crucial to remember that the TW-8100 should not be tightened with tools-finger-tight only-to maintain the warranty. This adaptor is designed for easy use and reliability, making it a valuable addition to your HVAC toolkit. The AD-410 is categorized under Access Control, Alarm Parts & Accessories, and is ideal for professionals seeking dependable components for their alarm and intercom systems. With the ability to ship via UPS, it ensures timely delivery, so you can get back to work without delay. Upgrade your mini-split installation with the Starlite Security Devices LLC AD-410 Mini Split AC Adaptor today.

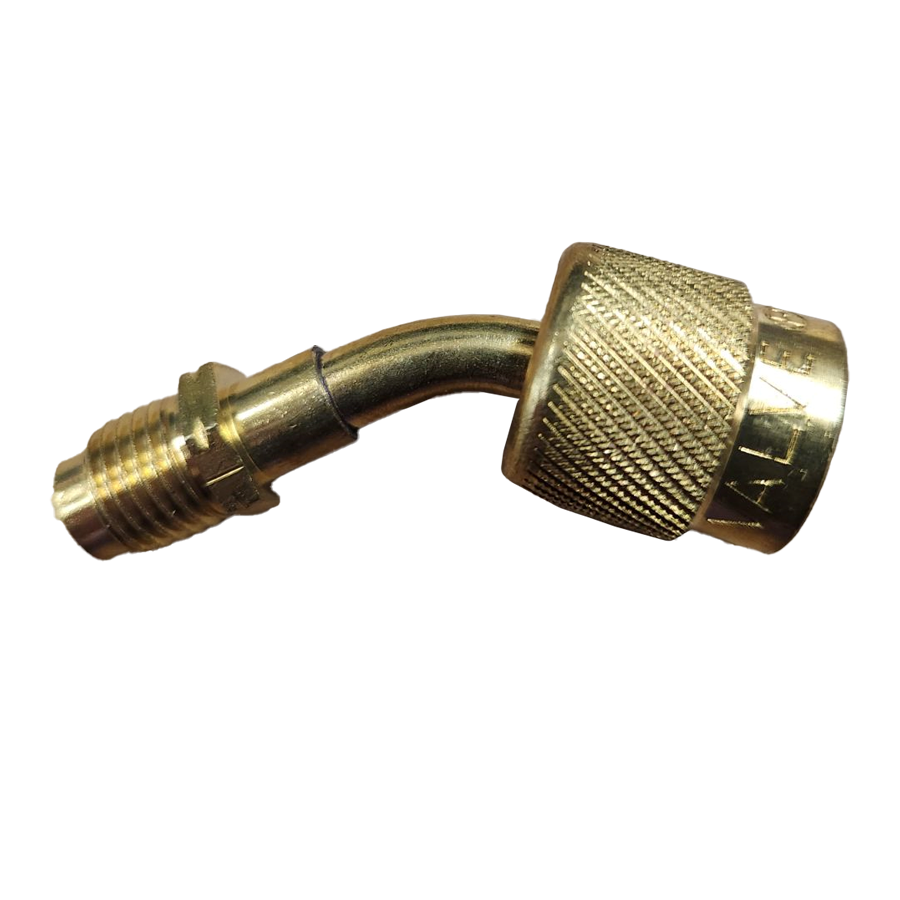

Mini Split AC Adaptor 1/4-5/16

All HVAC systems use 1/4 inch service valves except for mini-split air conditioners. Mini-split air conditioners use a 5/16 inch service valve in order to differentiate the type of refrigerant that they use. The TW-8100 uses a 1/4 inch fitting, so in order to connect it to a mini-split air conditioner the installer will need to use the mini-split adaptor.

Installation:

• Simply connect the TW-8100 to the mini-split adaptor first. Make sure to use a small dot of leak lock on the male threads of the mini-split adaptor and the service valve before making the connection.
• Note: Remember that the TW-8100 should not be tightened with tools (finger tight only). Even a quarter of a turn with a tool is not acceptable. Using tools to tighten the TW-8100 will void the product warranty.

Features

• Simply connect the TW-8100 to the mini-split adaptor first. Make sure to use a small dot of leak lock on the male threads of the mini-split adaptor and the service valve before making the connection.
• Note: Remember that the TW-8100 should not be tightened with tools (finger tight only). Even a quarter of a turn with a tool is not acceptable. Using tools to tighten the TW-8100 will void the product warranty.

Resources

• Cut Sheet
