Sugatsune ARN-3-H-S LiftAssist UpOpen SoftClose 53-70t System

SUGATSUNE ARN-3-H-S LiftAssist UpOpen SoftClose 53-70t offers a sophisticated solution for smooth door operation, specially designed for use with concealed hinges. The 95° opening angle ensures ample access, while the soft-close function guarantees that doors close gently, preventing slamming and enhancing longevity. The lid assist feature allows for light opening, making it user-friendly for various applications. This product is available in two torque ranges: light duty (35-53 lbs-inch per pair) and medium duty (53-70 lbs-inch per pair), making it versatile enough for different door sizes and weights. The adjustable closing speed allows for customization, ensuring a perfect fit for your specific needs. The integrated design combines a concealed hinge with a lid stay, simplifying installation and providing a clean look. The unit dimensions are 1-1/16" wide, 7-7/8" long, and 2" thick, with a total weight of 1.55 lbs. Each set includes one soft-close lid stay and two concealed hinges with mounting plates, making it a comprehensive solution for your cabinetry. Elevate your project with the SUGATSUNE ARN-3-H-S, where functionality meets elegance in cabinet hardware.

LiftAssist UpOpen SoftClose 53-70t

• Non-handed soft-close device
• Closing speed of doors is adjustable

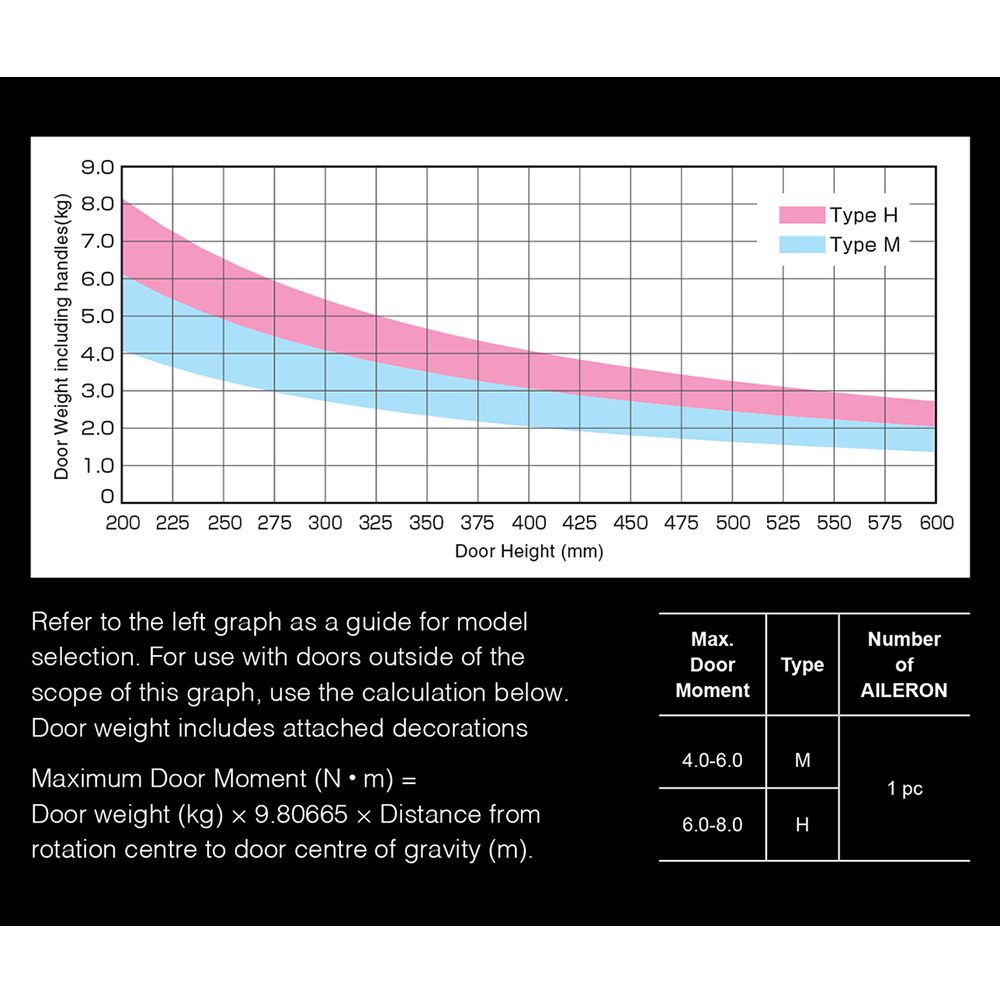

• Torque lbs-inch = Door height x 1/2 x Door Weight
• - Medium duty range 53-70 lbs-inch per pair
• - Light duty range 35-53 lbs-inch per pair
• Lid assist allows for light opening
• Available in 2 torque ranges
• Integrated design combines a concealed hinge and lid stay
• Soft-close function makes doors close gently
• Unit dimensions: - Body - 1-1/16" wide x 7-7/8" long x 2" thick

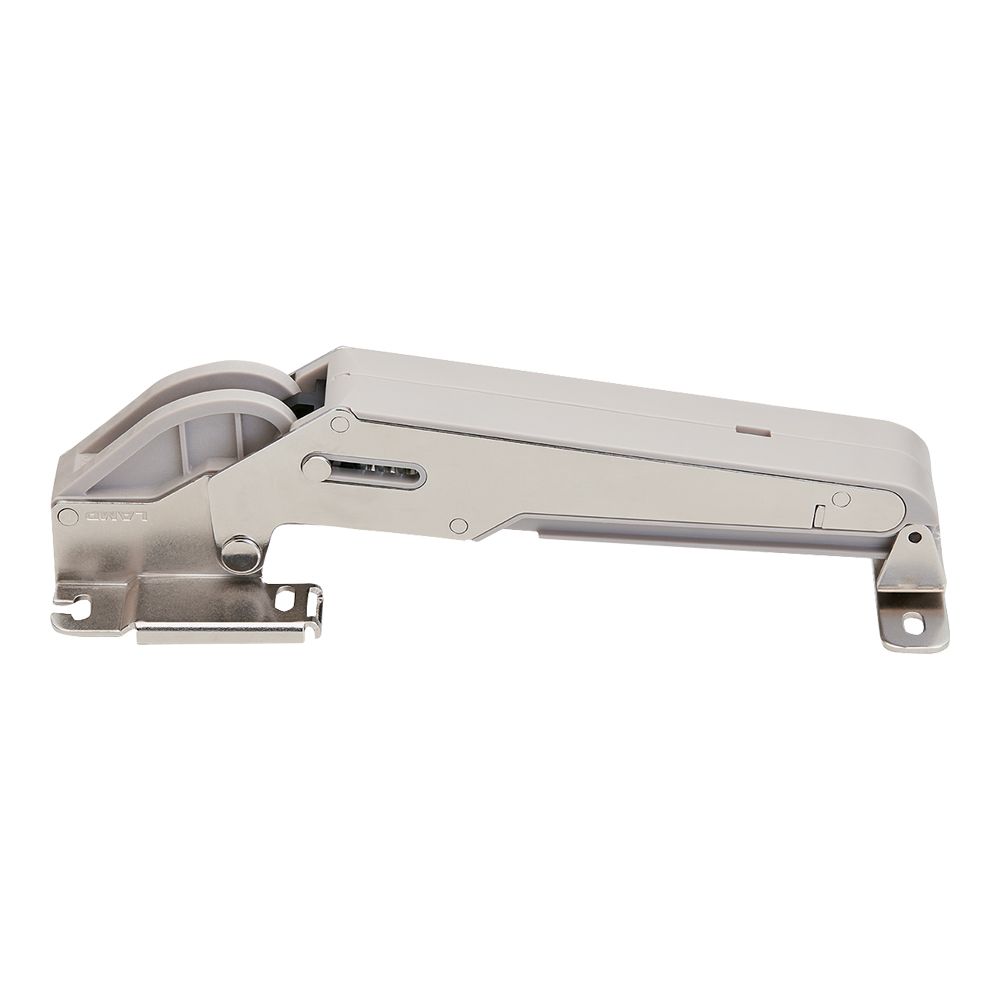

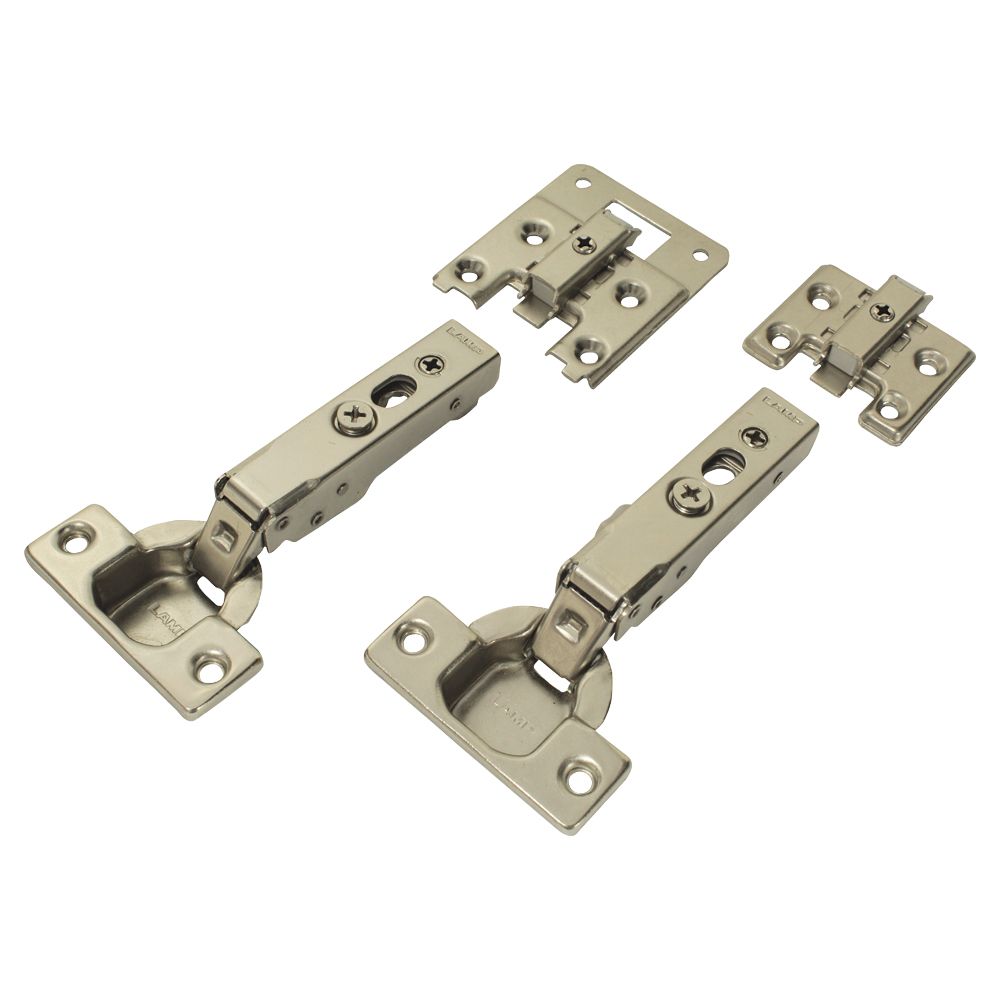

• Set includes one soft-close lid stay, 2 concealed hinges with mounting plates
• 95° opening angle
