Sugatsune ARN-3-M-S LiftAssist UpOpen SoftClose 35-53t System

SUGATSUNE ARN-3-M-S LiftAssist UpOpen SoftClose 35-53t is engineered for smooth and efficient door operation, particularly when paired with concealed hinges. This innovative lid stay system features a 95° opening angle, allowing for easy access while ensuring a gentle close thanks to its soft-close function. Designed for light-duty applications, it supports a torque range of 35-53 lbs-inch per pair, making it suitable for various door heights and weights. The unit dimensions measure 1-1/16" wide by 7-7/8" long and 2" thick, providing a compact solution that integrates seamlessly into your cabinetry. With an adjustable closing speed, users can customize the door's movement to suit their preferences. The ARN-3-M-S includes one soft-close lid stay and two concealed hinges with mounting plates, offering a comprehensive solution right out of the box. This non-handed soft-close device allows for versatile installation, ensuring compatibility with both left and right-hand doors. The integrated design not only enhances aesthetics but also maximizes functionality, making it a must-have for builders and homeowners looking to upgrade their furniture hardware. For a refined and practical touch to your cabinetry, the SUGATSUNE ARN-3-M-S is an exceptional choice.

LiftAssist UpOpen SoftClose 35-53t

• Non-handed soft-close device
• Closing speed of doors is adjustable

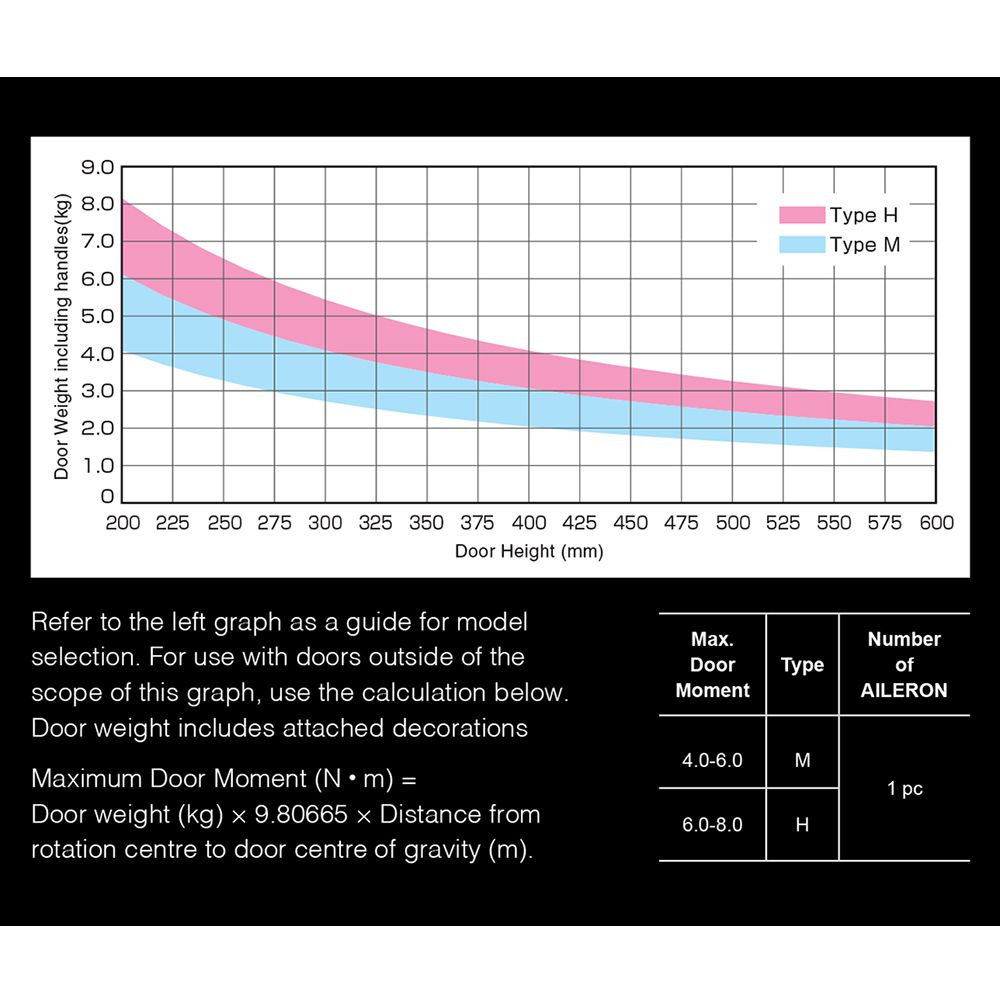

• Torque lbs-inch = Door height x 1/2 x Door Weight
• - Medium duty range 53-70 lbs-inch per pair
• - Light duty range 35-53 lbs-inch per pair
• Lid assist allows for light opening
• Available in 2 torque ranges
• Integrated design combines a concealed hinge and lid stay
• Soft-close function makes doors close gently
• Unit dimensions: - Body - 1-1/16" wide x 7-7/8" long x 2" thick

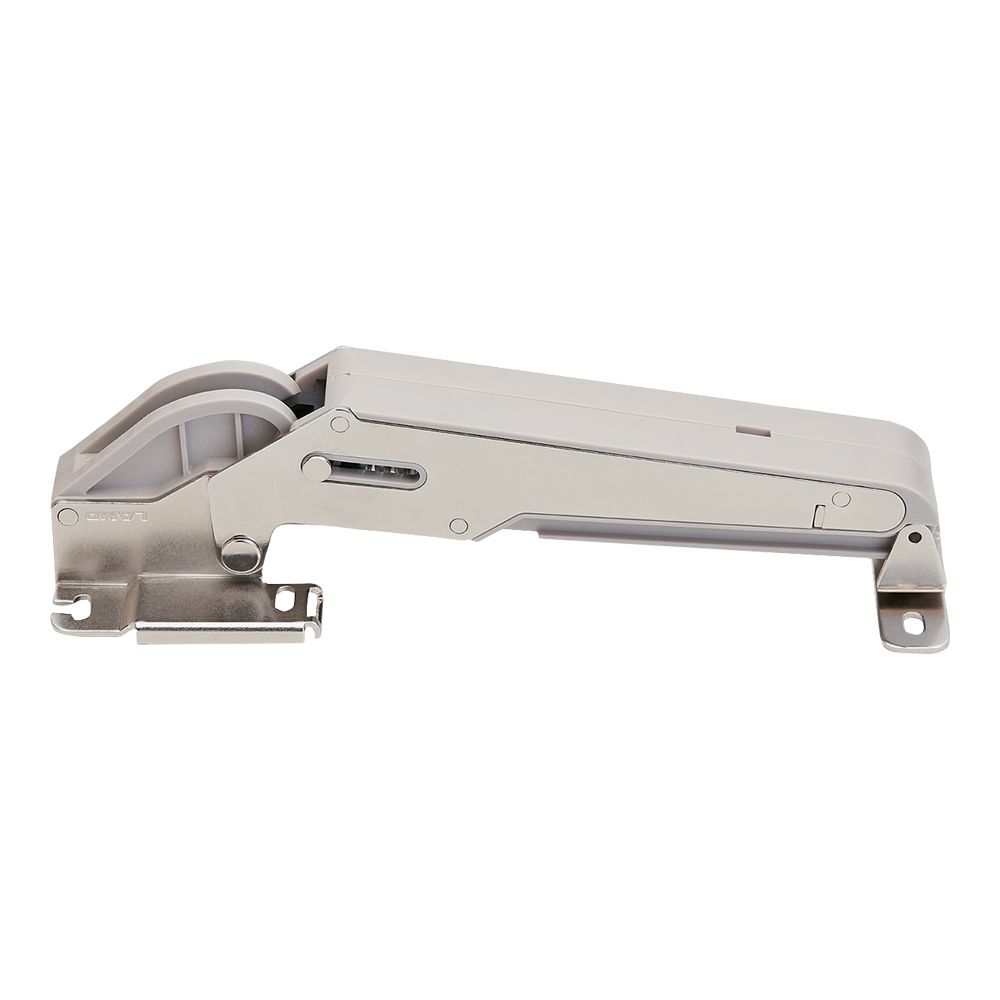

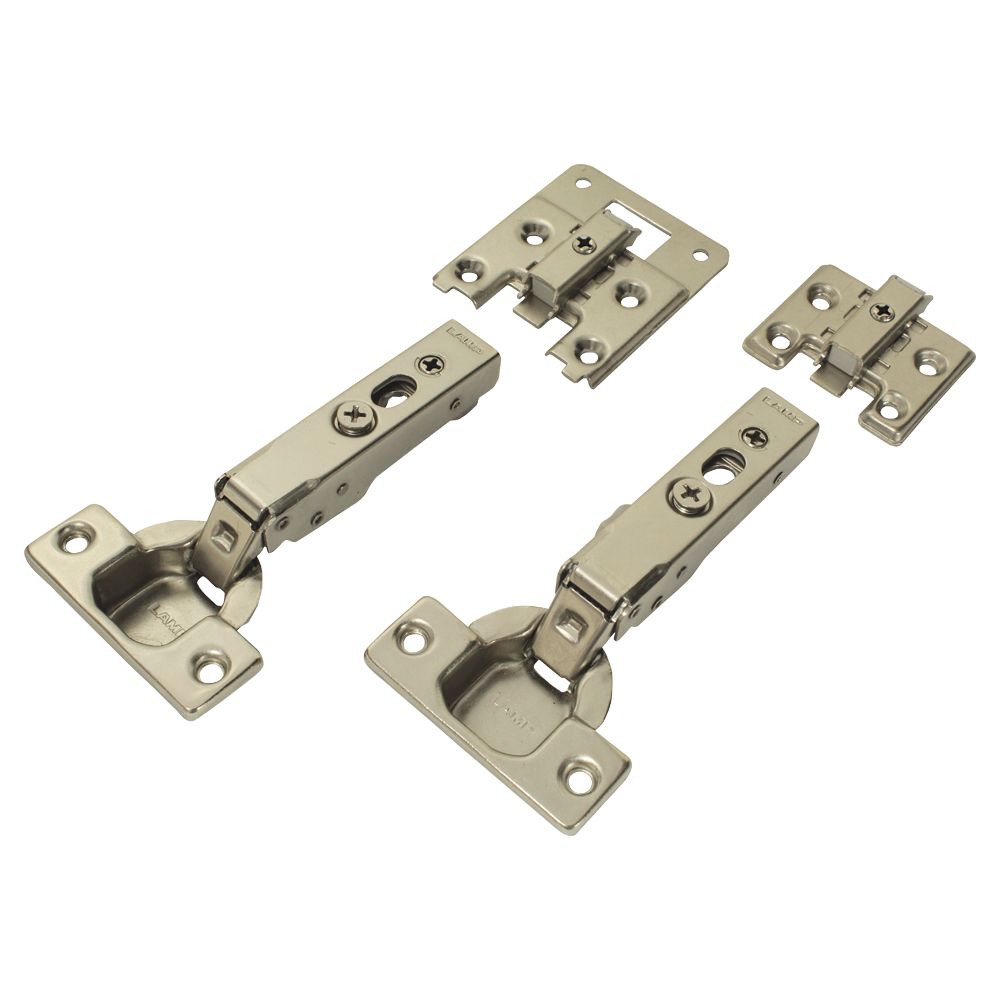

• Set includes one soft-close lid stay, 2 concealed hinges with mounting plates
• 95° opening angle
