Sugatsune DSR403-2300-25 19in Concealed Door Straightener

SUGATSUNE DSR403-2300-25 Concealed Door Straightener 19in is designed for seamless integration into your sliding door systems. This fully concealed door straightener is expertly crafted for recess mounting beneath door laminate, ensuring a clean and unobtrusive appearance. With a minimum thickness requirement of just 1/2" (12mm), it provides a robust solution for maintaining door alignment while allowing for a 10mm (3/8") adjustment at the top of the door, easily manipulated using an M4 Allen key. Engineered for door heights ranging from 2030mm to 2450mm (80" to 96"), this straightener can be customized to fit your specific needs by cutting the bar to a maximum length of 16-1/2" (420mm). The design eliminates the need for additional fasteners, simplifying installation and enhancing efficiency. Whether you're a building professional or a knowledgeable homeowner, the SUGATSUNE DSR403-2300-25 provides the reliability and performance required for modern sliding door applications. Elevate your projects with this essential piece of hardware that combines functionality with a sleek, unobtrusive design.

Concealed Door Straightener 19in

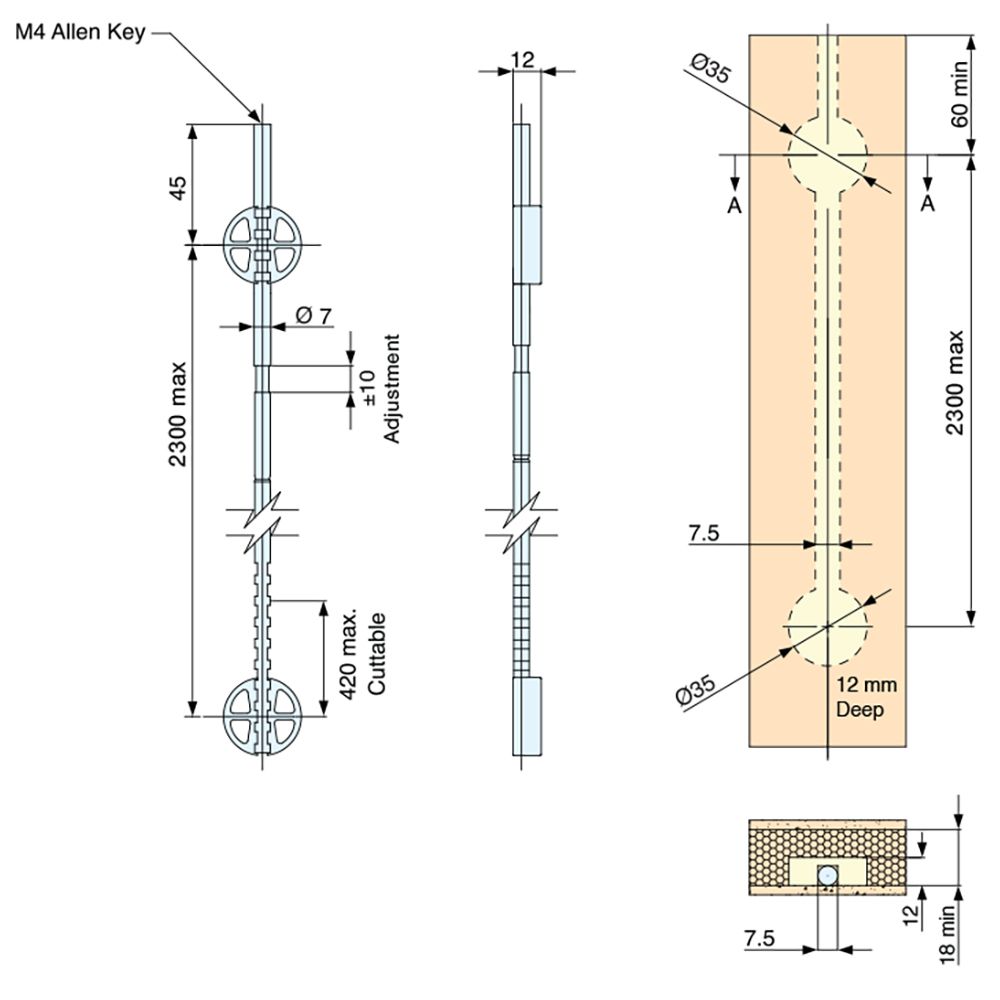

• For door height 2030~2450mm (80~96"). Bar must be cut to length
• Fully concealed door straightener
• Fasteners not required
• Recess mount under door laminate
• Minimum thickness 1/2" (12mm)
• ? 10mm (3/8") adjustment can be made; adjustable at the top of door with M4 allen key
• up to 16-1/2" (420mm)
