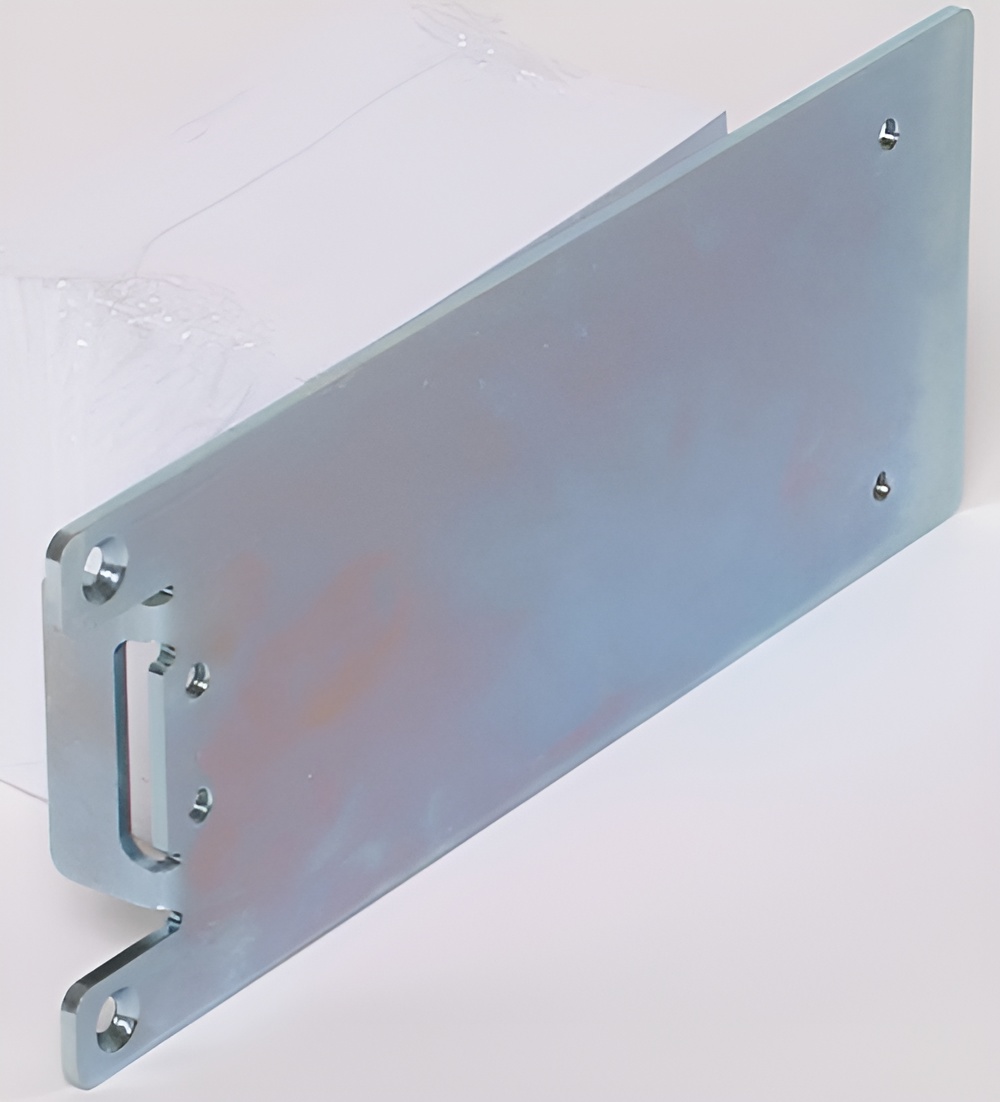

Sugatsune FFCB-SLS SUSLS-ELAN Face Frame Bracket

SUGATSUNE FFCB-SLS Face Frame Bracket for SUSLS-ELAN offers an innovative solution for soft-close lid applications, ensuring ease of use and reliable performance. This bracket is designed to facilitate effortless opening, allowing doors to remain secure in both closed and open positions. With a 90° opening angle and a free stop feature, it holds the flap at any angle between 30° to 90°, providing versatility for various cabinetry needs. Available in left or right-handed configurations, the FFCB-SLS accommodates door heights ranging from 12" to 28". The medium-duty option supports weights of 3.4 to 10.8 lbs per stay, while the heavy-duty variant can handle 4.6 to 14.5 lbs per stay, making it suitable for a range of applications. Its dimensions are 2-3/4" wide, 7-1/4" long, and 1" thick, with the arm mounting 7-1/4" from the top edge of the door. Finished in a light grey color, this face frame bracket not only enhances functionality but also blends seamlessly with various cabinet styles. Installation is straightforward, requiring just two screws. Sold individually, the Sugatsune FFCB-SLS is a reliable choice for builders and homeowners seeking quality cabinet hardware.

Face Frame Bracket for SUSLS-ELAN

• Available in 2 sizes (double if using two lid stays)
• Light grey finish
• - Body - 2-3/4" wide x 7-1/4" long x 1" thick
• - Medium duty works for 3.4 to 10.8 lbs per stay
• Unit dimensions:
• Handed - specify left or right mounting
• Flap will not slam shut
• Easy to install. Align the lid stay inside the cabinet to the upper front corner staying flush with the front edge and tight to the cabinet top. Attach using just 2 screws
• Door height range: 12" to 28"
• - Arm - mounts to door 7-1/4" from top edge of door
• 90° opening angle. Free stop feature holds flap in any open position from 30° to 90°
• - Heavy duty works for 4.6 to 14.5 lbs per stay
• Sold per each
