Sure-Fi DS004-WIEGAND KIT Wireless Wiegand Bridge System with Controller Remote Interface

Sure-Fi DS004-WIEGAND KIT Wireless Connection Wiegand Bridge System offers a seamless solution for connecting Wiegand-based access control systems without the hassle of extensive cabling. This innovative system includes one controller and one remote interface, designed to facilitate the communication between card readers and control panels wirelessly. By utilizing a transmitter linked to the card reader and a receiver connected to the control panel, the Sure-Fi system transmits access data efficiently. This is particularly advantageous in environments where running cables is impractical or costly, such as retrofitting older buildings. With a remarkable range of up to 1 mile through obstructions and over 50 miles in line-of-sight conditions, this kit ensures reliable connectivity in various settings. The operating voltage ranges from 9VDC to 15VDC, consuming only 0.08A in idle mode and 0.3A during transmission. The AES128 encryption ensures secure communication, while the robust operating temperature range of -40°F to +185°F guarantees performance in extreme conditions. Included with the kit are two 12V power supplies, power cords, and a Sure-Fi screwdriver for easy installation. Elevate your access control capabilities with the Sure-Fi DS004-WIEGAND KIT and experience the freedom of wireless security solutions.

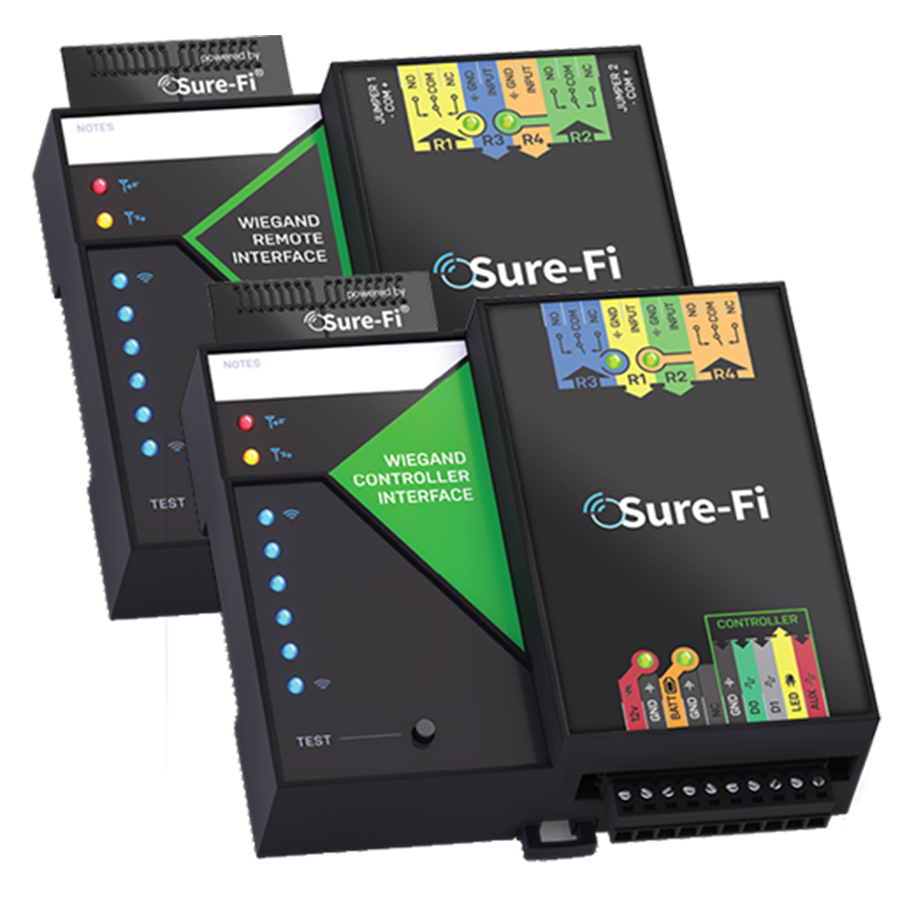

Wireless Connection Wiegand Bridge System, Includes One Controller and One Remote Interfaces

A wireless bridge that enables you to wirelessly connect Wiegand-based access control systems, which are often used in security applications. Wiegand systems generally involve cables and wiring to transfer data between a card reader (like an access card scanner) and the control panel that decides whether to unlock a door. The bridge consists of two parts: a transmitter and a receiver. The transmitter (remote interface) is connected to the card reader, which reads access cards or key fobs. When a card is read, the transmitter sends the data wirelessly to the receiver. The receiver (controller interface), in turn, is connected to the control panel and sends the data to it, just as if it were wired directly to the card reader.

Benefits:

• The benefit of using the Sure-Fi Wiegand kit is that it eliminates the need for complex and potentially expensive cabling between card readers and the control panel, especially over large distances or through challenging environments. It can be particularly useful in retrofitting older buildings where adding new wiring would be difficult or intrusive.

What's Included:

• 1: Sure-Fi Wiegand wireless bridge system (DS004-WIEGAND). Includes one controller and one remote interfaces
• 2: 12V 2.5A Output power supplies with 100-240, 277 VAC input
• 2: 6 foot power cords
• 1: Sure-Fi screwdriver

Specifications:

• Operating Voltage: 12VDC 9VDC tp 15VDC
• Operating Current (@12VDC): 0.08A (idle), 0.3A (transmit)
• Operating Power (@12VDC): 3.6 Watt (peak)
• Transmit Power: 1 Watt (30dBm)
• Frequency Band: 902 - 928MHz
• Channels: 72 (Frequency Hopping)
• Receiver Sensitivity: -133dBm
• Link Budget: 163dB
• Range: Up to 1 mile through obstructions and 50+ miles line-of-sight
• Encryption: AES128
• Battery Backup Connection: 12V Sealed Lead Acid (SLA) type only
• Battery Charge Voltage: 13.75V maximum at standby
• Relays: 2A 250VAC / 2A 250VDC wet or dry NO, NC, COM (x2)
• Operating Temperature: -40 F to +185 F (-40 C to +85 C)
• Storage Temperature: -67 F to +257 F (-55 C to +125 C)
• Mounting Options: DIN (35mm x 7.5mm) or directly mount with two screws
