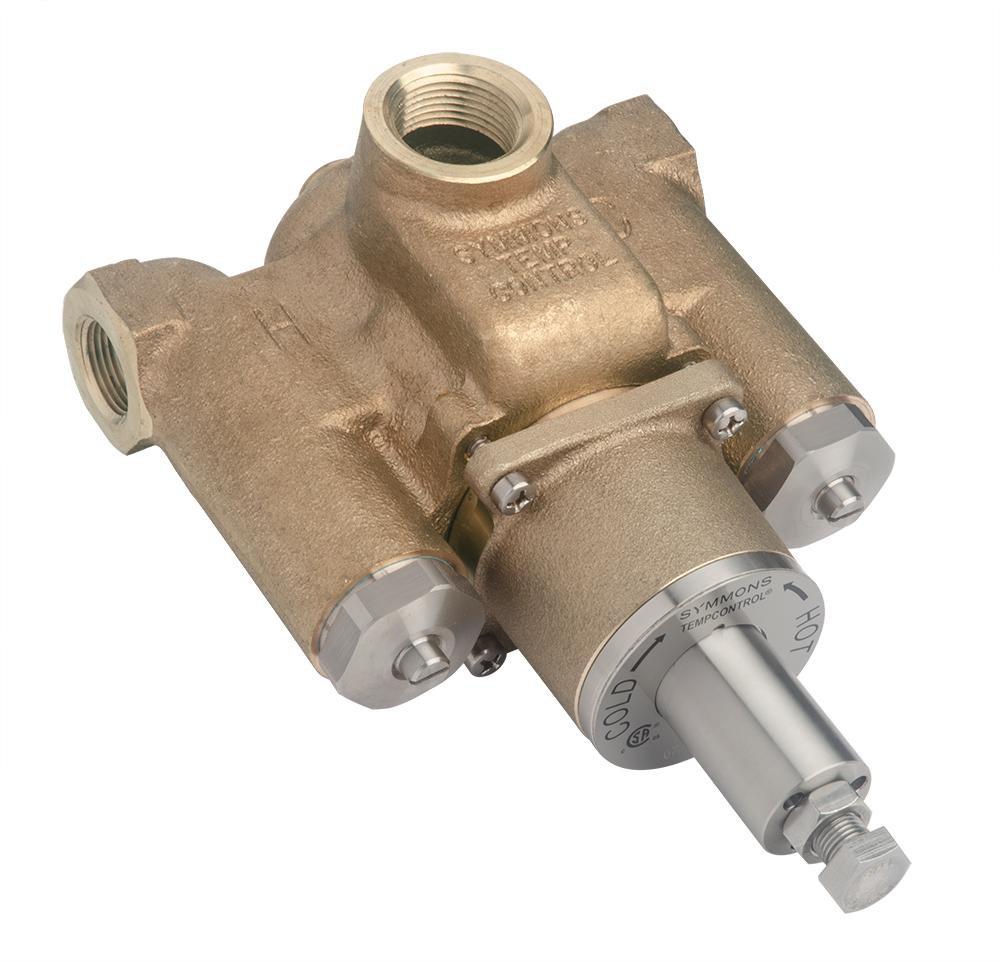

Symmons 7-200 3/4" FNPT Thermostat Mixing ValveSymmons 7-200 3/4 in. FNPT Thermostat Mixing Valve is engineered for reliable performance and safety in both residential and commercial applications. This thermostatic mixing valve is ASSE 1017 and CSA B125.3 certified, ensuring compliance with stringent safety standards. Constructed from high-quality brass, bronze, and stainless steel, it promises durability and long-lasting functionality under varying conditions. Designed with a 3/4" female NPT inlet and outlet, this mixing valve is straightforward to install with standard threaded connections, making it a practical choice for contractors and DIY enthusiasts alike. The valve operates efficiently with a minimum flow rate of 0.5 gallons per minute, ensuring consistent temperature control for your water supply. With a maximum temperature rating of 140°F, it is ideal for a variety of applications, including shower installations and hydronic heating systems. The Symmons 7-200 also adheres to important standards such as ANSI 61, ANSI 372, and ASME A112.18.1, reinforcing its quality and reliability. Lead law compliance ensures that it meets regulatory requirements, providing peace of mind for health-conscious consumers. Measuring 2 inches in height, 8-15/16 inches in length, and 5-15/16 inches in width, this compact valve integrates seamlessly into your plumbing system. Weighing 9.2 pounds, the robust design withstands the rigors of daily use. Choose the Symmons 7-200 Thermostat Mixing Valve for a dependable solution that combines performance, safety, and ease of installation, making it a smart addition to any modern kitchen or bathroom.
3/4 in. FNPT Thermostat Mixing Valve
TempControl thermostatic mixing valve
ASSE 1017, CSA B125.3 certified
3/4" Female NPT inlet, 3/4" Female NPT outlet
Brass, Bronze, Stainless Steel construction
Min. flow rate 0.5 gpm
Attributes
ANSI: ANSI 61, ANSI 372
ASME: ASME A112.18.1
ASSE Standards: ASSE 1017
CSA Certified: CSA B125.1
Collection: TempControl®
End Connection 1: Threaded
End Connection 2: Threaded
End Connection 3: FNPT
End Connections: FNPT
Height: 2 in
IAPMO Listed: No
Installation Type: Wall Mount
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 8-15/16 in
Material: Brass, Bronze, Stainless Steel, Plastic
Maximum Temperature: 140
NSF: NSF 61.9, NSF 372
NSF Certified: Yes
Origin: Domestic
Proposition 65: WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 671256435573
Valve Body Material: Brass
Valve Disc Material: Brass
Valve Operator: Knob
Valve Port Opening: Standard Port
Valve Seat Material: Brass
Valve Size: 3/4 in
Valve Type: Thermostat Mixing Valve
Weight: 9.2 lb
Width: 5-15/16 in
