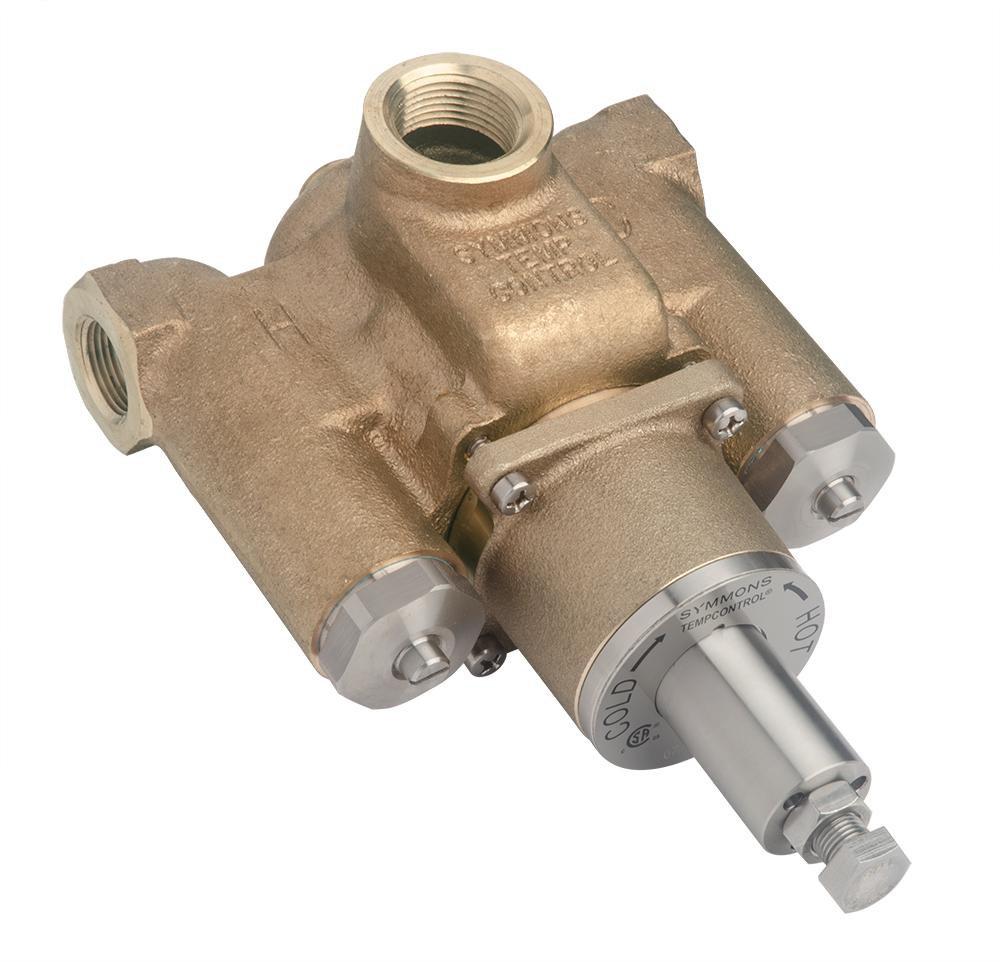

Symmons 7-500 1" x 1-1/4" FNPT Thermostat Mixing ValveSymmons 7-500 1 x 1-1/4 in. FNPT Thermostat Mixing Valve provides reliable temperature control for hot and cold water applications. This thermostatic mixing valve features a 1" female NPT inlet and a 1-1/4" female NPT outlet, ensuring compatibility with a variety of plumbing systems. Constructed from durable brass, bronze, and stainless steel, it delivers longevity and performance that meets the demands of both residential and commercial settings. Certified to ASSE 1017 and CSA B125.3 standards, the Symmons 7-500 guarantees high-quality operation and safety. With a minimum flow rate of 0.5 gallons per minute (gpm), it efficiently regulates water temperature while maintaining consistent performance. The valve's maximum temperature limit of 140°F and pressure rating of up to 125 psi make it suitable for various applications, including water heating systems. Designed for wall mount installation, this valve simplifies the setup process, making it an excellent choice for builders and contractors. Its lead law compliance ensures safety in water delivery, while its NSF certification further confirms its reliability and adherence to stringent health standards. Measuring 4-7/8 inches in height, 9-5/8 inches in length, and 7-11/16 inches in width, the compact design fits easily into tight spaces without sacrificing functionality. The knob-operated valve offers straightforward adjustments, allowing users to set the desired temperature with ease. By choosing the Symmons 7-500 Thermostat Mixing Valve, you invest in a product that combines modern design with proven durability, enhancing the comfort and efficiency of any kitchen or bath.
1 x 1-1/4 in. FNPT Thermostat Mixing Valve
TempControl thermostatic mixing valve
1" Female NPT inlet, 1 1/4" Female NPT outlet
ASSE 1017, CSA B125.3 certified
Brass, Bronze, Stainless Steel construction
Min. flow rate 0.5 gpm
Attributes
ANSI: ANSI 61, ANSI 372
ASME: ASME A112.18.1
ASSE Standards: ASSE 1017
CSA Certified: CSA B125.1
Collection: TempControl®
End Connection 1: Threaded
End Connection 2: Threaded
End Connection 3: FNPT
End Connections: FNPT
Height: 4-7/8 in
IAPMO Listed: No
Installation Type: Wall Mount
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 9-5/8 in
Material: Brass, Bronze, Stainless Steel, Plastic
Maximum Temperature: 140
NSF: NSF 61-9, NSF 372
NSF Certified: Yes
Origin: Domestic
Pressure - Maximum: 125 psi
Proposition 65: WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Recommended Valve Application: Water
UL Listed: No
Upc: 671256435597
Valve Body Material: Brass
Valve Disc Material: Brass
Valve Operator: Knob
Valve Port Opening: Standard Port
Valve Seat Material: Brass
Valve Size: 1 in x 1-1/4 in
Valve Type: Thermostat Mixing Valve
Weight: 17.6 lb
Width: 7-11/16 in
