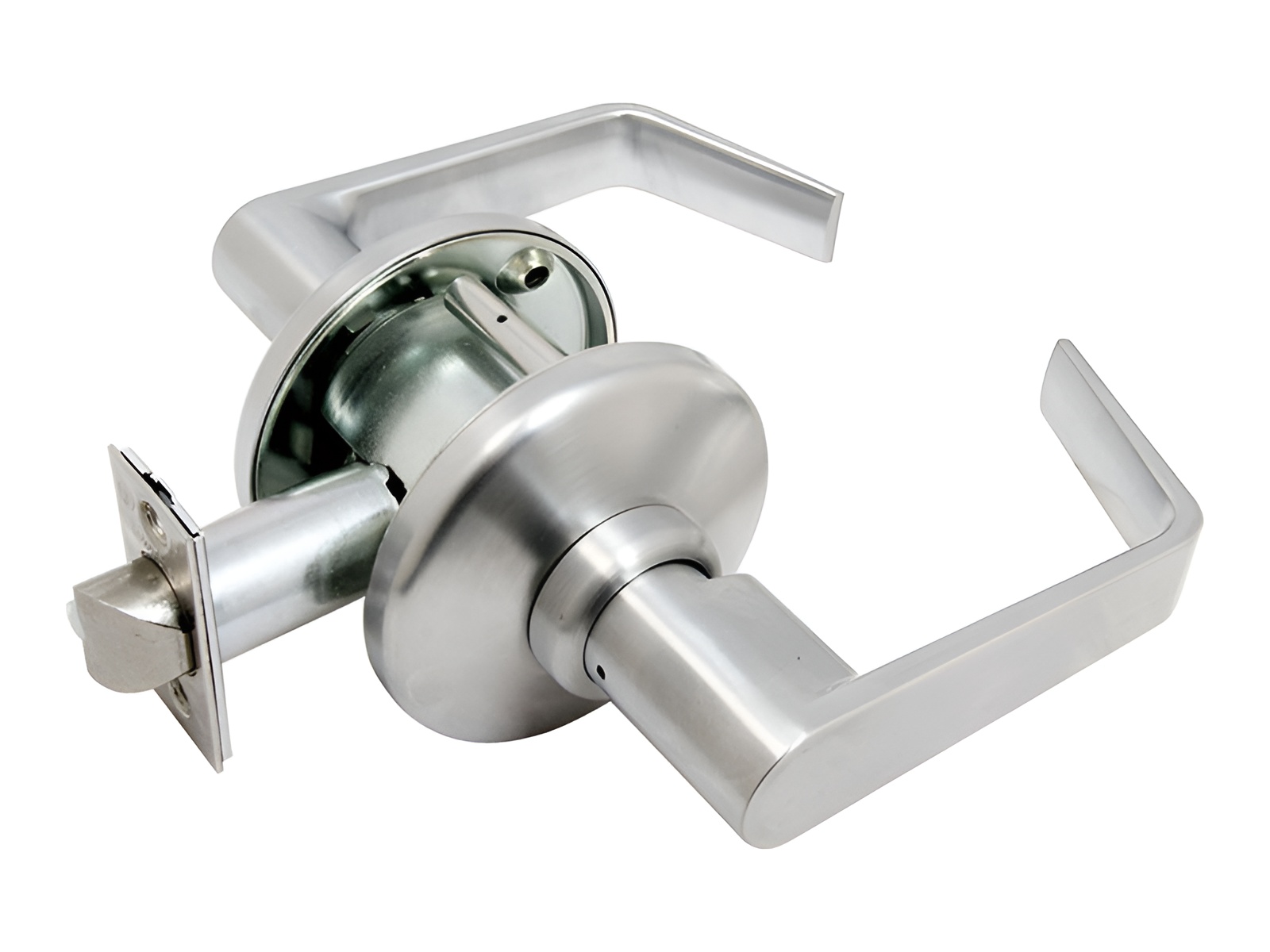

TownSteel CE-75-S-626 CE Series Passage Lock

TownSteel CE-75-S-626 CE Series Passage Lock offers a robust solution for high-traffic environments such as schools, universities, and office buildings. This Grade 1, non-clutched extra heavy-duty cylindrical lockset is designed to withstand the demands of daily use while maintaining a sleek appearance with its Sentinel lever and satin chrome finish. Certified to ANSI/BHMA A156.2-2011 4000 Series Grade 1 standards and UL10C 3 Hour Rated, the CE Series ensures reliability and security in various applications, from institutional settings to commercial spaces. The innovative internal spring design mitigates lever sag, allowing for a low-profile projection rose that enhances its modern aesthetic. This lock is compatible with door thicknesses ranging from 1-3/4" to 2", featuring a stainless steel latch bolt with a 1/2" throw for added durability. The self-adjustable faceplate measures 1-1/8" x 2-1/4" and is constructed from stainless steel, providing a secure and lasting installation. Available with a standard Schlage C keyway and various cylinder options, the TownSteel CE-75-S-626 is an ideal choice for those seeking a reliable, stylish, and high-performance locking solution for their commercial needs.

CE Series Passage Lock

Grade 1, Non-Clutched Extra Heavy Duty Cylindrical Lockset, Passage Function, Sentinel Lever, Non Keyed, Satin Chrome

The CE Series Cylindrical Lock is designed for High Traffic commercial areas such as schools, universitis, office buildings, and industrial complexes. The CE is certified ANSI/BHMA A156.2-2011 4000 Series Grade 1 and UL10C 3 Hour Rated. Featuring an internal spring design that mitigates lever sag, and allows for an aesthetically pleasing low projection rose. The CE series is available with a standard Schlage C keyway as well as SFIC, Schlage LFIC, Corbin LFIC, and TownSteel High Security Cylinders.

Designed for multiple applications from institutional to high-traffic commercial areas.

TownSteel Cylindrical Locks are offered in a variety of series, including CE, CD, CS and CSRC. This offering spans a multitude of applications including schools, universities, office buildings, industrial complexes and more.

CE Series

• Door Thickness: 1-3/4" - 2"
• Backset: 2-3/4" Standard, 5" Optional
• Latch Bolt: Stainless Steel, 1/2" throw
• Faceplate: Self-adjustable, 1-1/8" x 2-1/4" Stainless Steel

CDC Series

• Door Thickness: 1-3/8" - 2"
• Backset: 2-3/4" Standard, 2-3/8", 3-3/4", 5" Optional
• Latch Bolt: Stainless Steel, 1/2" (12.7mm) throw, deadlocking on keyed functions. Anti-friction fire door latch with 3/4" (19mm) throw available upon request
• Faceplate: Forged brass or Stainless Steel, 1-1/8" X 2-1/4" (29mm X 57mm) square corner, beveled.

Resources

• 2024 TownSteel Price Book
• TownSteel CDC/CD Series Catalog
• TownSteel CE Series Catalog
• TownSteel CS Series Catalog
• TownSteel CSRC Series Sell Sheet
