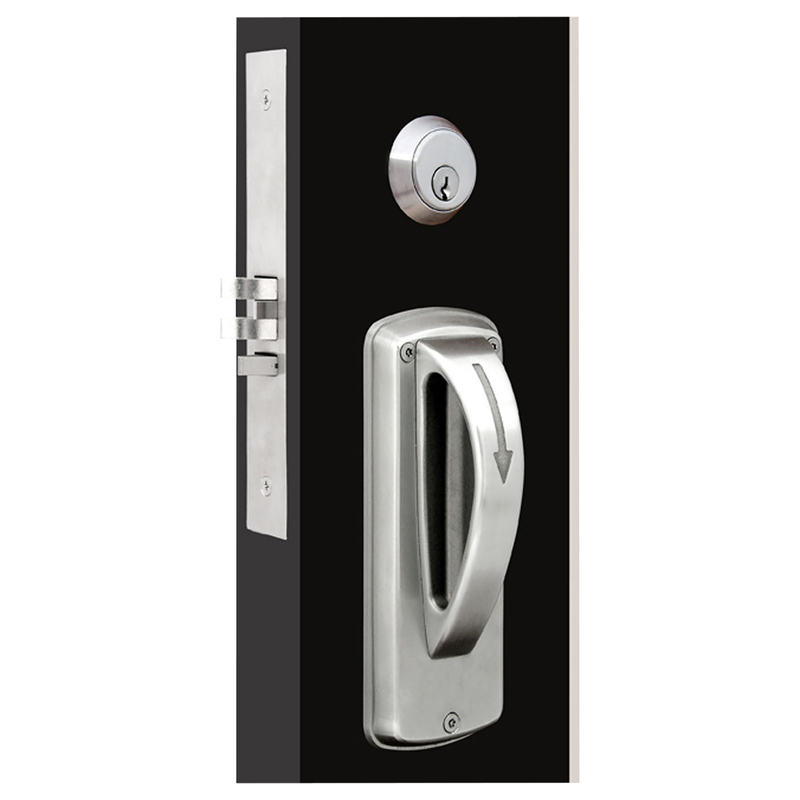

TownSteel MRX-A-04-630-RH Ligature-Resistant Mortise LockTownSteel MRX-A-04-630-RH Ligature Resistant Mort Lock combines robust security with thoughtful design, making it an ideal choice for environments requiring enhanced safety. This Grade 1 mortise lockset is specifically engineered for ligature resistance, catering to applications in mental health facilities and similar settings. Crafted from satin stainless steel, it features an arch trim design that adds an elegant touch while ensuring durability. Optimized for 1-3/4" door thickness, this lockset has a 2-3/4" backset, providing a seamless fit for standard doors. Its stainless steel turn piece, faceplate, and strike add to its resilience, ensuring long-lasting performance. The lock operates as an entry/office function (ANSI F04) and includes a dead latch (guarded) for added security. TownSteel's MRX-A-04-630-RH is available with various trim options, from single dummy to asylum types, making it versatile for different applications. ADA-compliant and accessible, this mortise lock is designed with user-friendliness in mind. Backed by a 5-year limited warranty, it promises peace of mind for both building professionals and knowledgeable homeowners. Choose TownSteel for a reliable, secure locking solution that prioritizes safety without sacrificing style.
Ligature Resistant Mort Lock
Ligature Resistant Mortise Lockset, Grade 1, Entry, Keyed, ANSI, Arch Trim, Right Hand, Satin Stainless Steel
Five-point ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F04 - Entry/Office
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 04-Entry or Office
Grade: Grade 1
Handing: RH
Leverknob Design: Arch Trim
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
