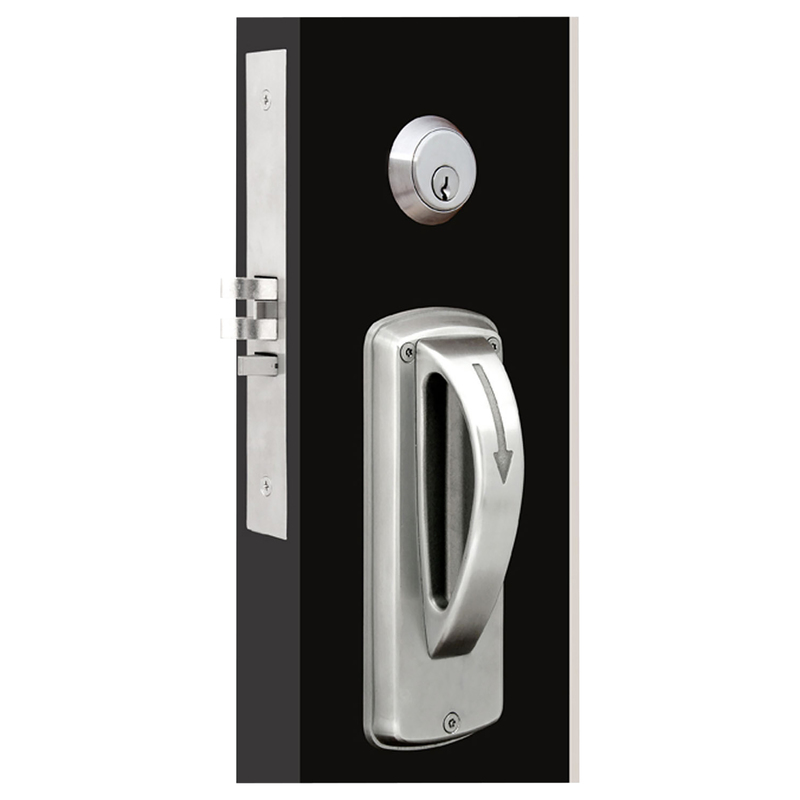

TownSteel MRX-A-05-630-LH Ligature-Resistant Mortise LockTownSteel MRX-A-05-630-LH Ligature Resistant Mort Lock combines durability and safety in a sophisticated design. This Grade 1 classroom mortise lockset is engineered for ligature resistance, making it an ideal choice for facilities requiring enhanced security measures, such as healthcare environments. Its robust construction features a five-point ligature-resistant design, ensuring optimal safety for both staff and patients. Designed for standard 1-3/4" door thickness, the MRX-A-05-630-LH comes with a 2-3/4" backset and is finished in a sleek satin stainless steel (630/US32D), promoting both functionality and aesthetic appeal. The lockset includes a stainless steel turn piece, faceplate, and strike, which are engineered for long-lasting performance. This model is also ADA compliant, ensuring accessibility for all users. The arch trim lever design adds a touch of elegance, while the dead latch (guarded) mechanism enhances security. TownSteel’s extensive range of ligature resistant locks includes various configurations to meet different needs, such as single dummy and privacy options. Backed by a 5-year limited warranty, the TownSteel MRX-A-05-630-LH Ligature Resistant Mort Lock is an excellent investment for anyone prioritizing safety, durability, and style in their locking solutions.
Ligature Resistant Mort Lock
Ligature Resistant Mortise Lockset, Grade 1, Classroom, Keyed, ANSI, Arch Trim, Left Hand, Satin Stainless Steel
Five-point ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F05 - Classroom
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 05-Classroom
Grade: Grade 1
Handing: LH
Leverknob Design: Arch Trim
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
