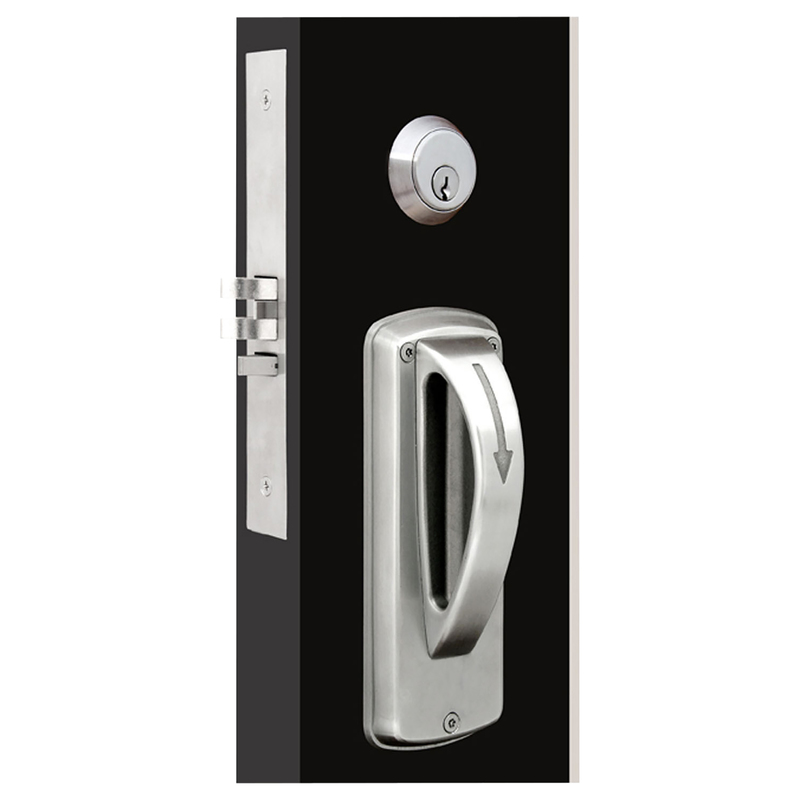

TownSteel MRX-A-30-630-LH Ligature-Resistant Mortise LockTownSteel MRX-A-30-630-LH Ligature Resistant Mort Lock offers a high level of security tailored for institutional settings. This Grade 1 mortise lockset is specifically designed to be ligature resistant, making it ideal for environments such as hospitals and mental health facilities where safety is paramount. Crafted from durable satin stainless steel, it features an arch trim design that combines functionality with an appealing aesthetic. Optimized for 1-3/4" door thickness, the MRX-A-30-630-LH includes a 2-3/4" backset and is equipped with a stainless steel turn piece, faceplate, and strike to ensure long-lasting performance. This lockset is compliant with ADA standards, providing accessibility while meeting ANSI function F30 for asylum applications. TownSteel’s commitment to security is evident, as they offer a comprehensive range of ligature-resistant locks, including various types such as single dummy, passage, privacy, and classroom locks. The MRX-A-30-630-LH is designed with a dead latch (guarded) mechanism, ensuring reliable locking and ease of use. Backed by a limited 5-year warranty, this mortise lock is a robust solution for demanding environments, providing peace of mind without compromising style.
Ligature Resistant Mort Lock
Ligature Resistant Mortise Lockset, Grade 1, Institutional, Keyed, ANSI, Arch Trim, Left Hand, Satin Stainless Steel
Five-point ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F30 - Asylum
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 30-Institutional
Grade: Grade 1
Handing: LH
Leverknob Design: Arch Trim
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
