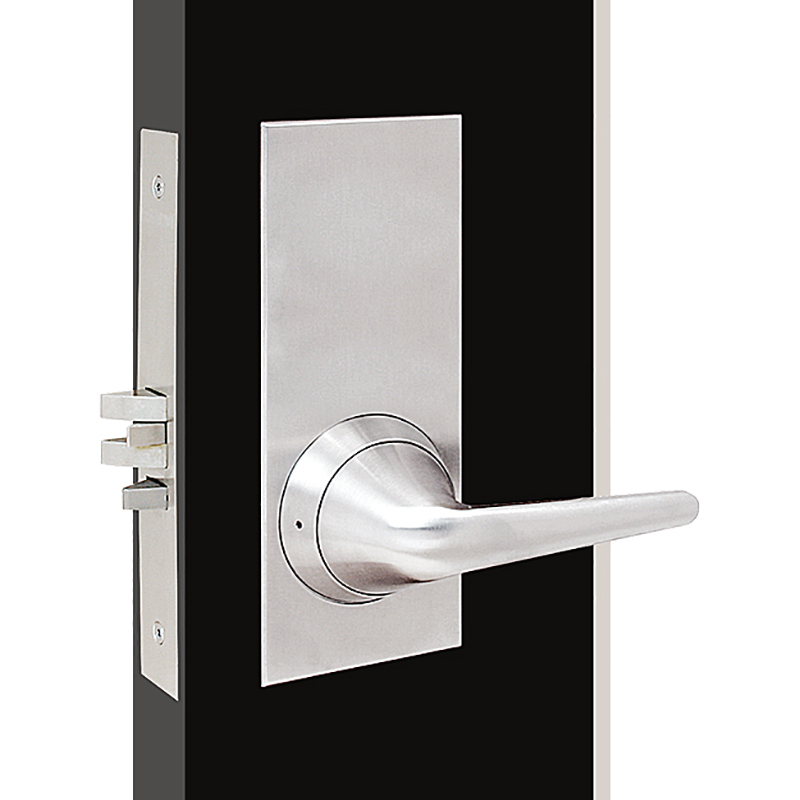

TownSteel MRX-E-L-26-630 Ligature-Resistant Mortise LockTownSteel MRX-E-L-26-630 Ligature Resistant Mort Lock delivers exceptional security with its heavy-duty construction designed for institutional environments. This Grade 1 mortise lockset features a sleek satin stainless steel finish, ensuring both durability and a modern aesthetic. Optimized for a door thickness of 1-3/4 inches, its 2-3/4-inch backset and stainless steel turn piece enhance performance while maintaining a ligature-resistant design. Ideal for various applications, this lockset supports institutional privacy with an ANSI function F26, making it suitable for settings where safety and accessibility are paramount. Its robust design includes an 8-inch by 1-1/4-inch lock face, combined with a spring latch type for secure operation. TownSteel’s commitment to providing a complete line of ligature resistant locks ensures that professional users find the right solution for their specific needs. Available types include single dummy, double dummy, passage/closet, privacy, entry/office, classroom, storeroom, and asylum configurations, giving you versatility in lock selection. With a limited 5-year warranty, the MRX-E-L-26-630 is not just a lock, but a reliable security solution you can depend on for years to come.
Ligature Resistant Mort Lock
Heavy Duty Anti-Ligature Lever Mortise Lockset, Grade 1, Institutional Privacy, Keyed, ANSI, Escutcheon Lever Trim, Satin Stainless Steel
Levered ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F26 - Institutional Privacy
Application: Ligature Resistant
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 26-Insitutional Privacy
Grade: Grade 1
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
