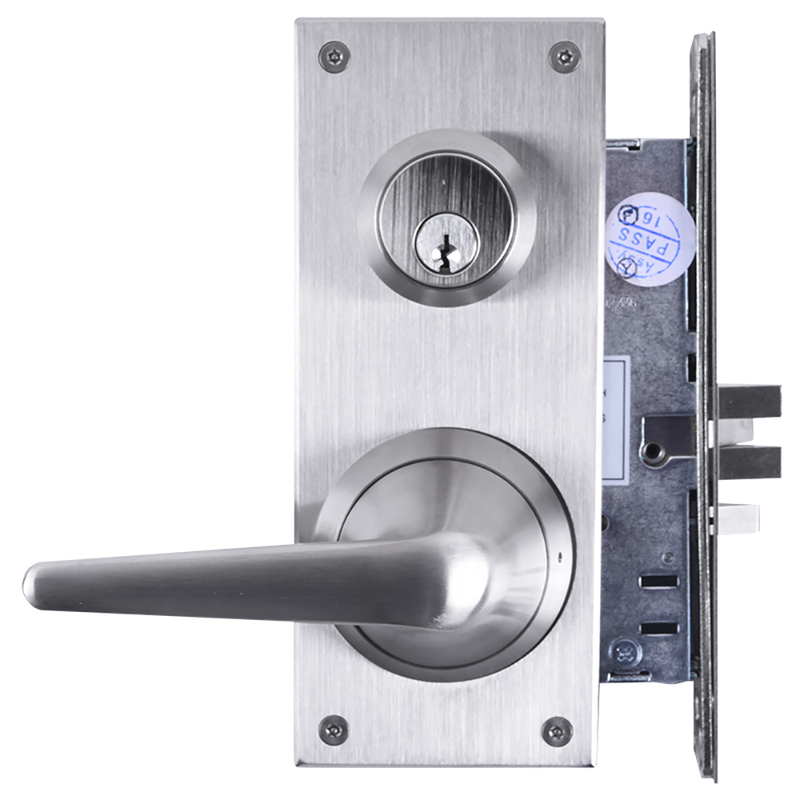

TownSteel MRX-E-L-30-630 Ligature-Resistant Mortise LockTownSteel MRX-E-L-30-630 Ligature Resistant Mort Lock delivers heavy-duty security with a focus on safety and accessibility. Designed for institutional use, this Grade 1 mortise lockset features a ligature-resistant lever, making it ideal for environments where safety is paramount. With a robust satin stainless steel finish, it not only provides durability but also complements any door aesthetic. Optimized for 1-3/4" door thickness, the MRX-E-L-30-630 boasts a 2-3/4" backset and includes a stainless steel turn piece, faceplate, and strike for added resilience. The lock functions with an ANSI F30 - Asylum functionality, ensuring compliance with institutional requirements. Its dead latch mechanism further enhances security by guarding against unauthorized access. This lock is part of TownSteel's comprehensive line of ligature-resistant products, catering to various applications, including single dummy, double dummy, privacy, and classroom functions. With a limited five-year warranty and accessible design, the MRX-E-L-30-630 is engineered not only for performance but also for ease of use. Whether for hospitals, schools, or correctional facilities, TownSteel’s commitment to safety and quality makes this mortise lock an optimal choice for your security needs.
Ligature Resistant Mort Lock
Heavy Duty Anti-Ligature Lever Mortise Lockset, Grade 1, Institutional, Keyed, ANSI, Escutcheon Lever Trim, Satin Stainless Steel
Levered ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F30 - Asylum
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 30-Institutional
Grade: Grade 1
Leverknob Design: Ligature Resistant Lever
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Roseescutcheon Design: Escutcheon
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
