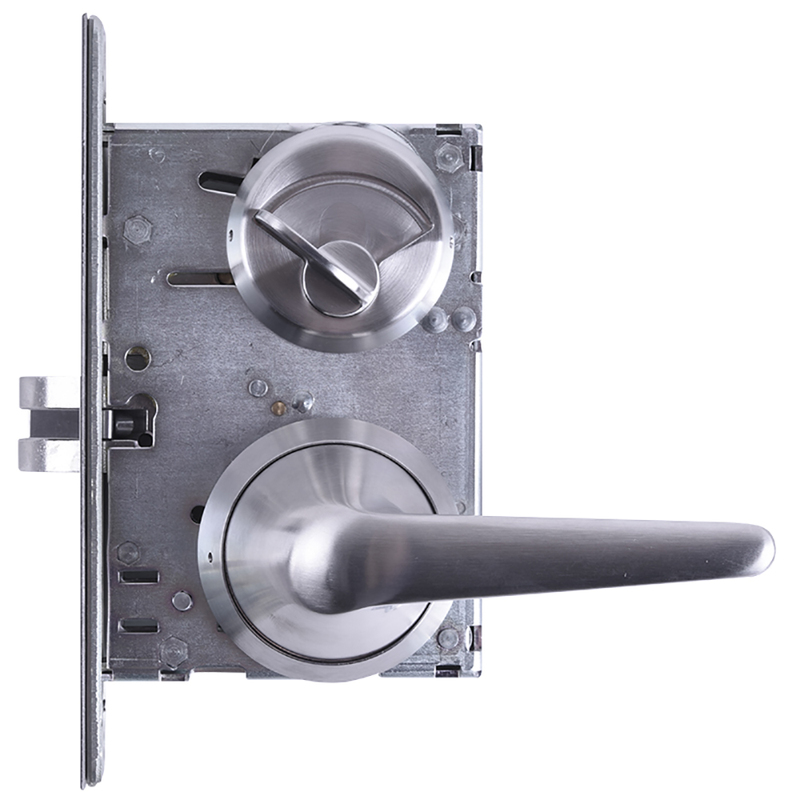

TownSteel MRX-S-L-02-630 Ligature-Resistant Mortise LockTownSteel MRX-S-L-02-630 Ligature Resistant Mort Lock combines robust security with thoughtful design, making it an ideal choice for environments requiring safety and privacy. This heavy-duty, Grade 1 mortise lockset is specifically engineered for ligature resistance, ensuring maximum safety without sacrificing functionality. The lock features a privacy/bathroom function with a reliable deadbolt, and its non-keyed design simplifies access in sensitive settings. Optimized for 1-3/4" door thickness, the MRX-S-L-02-630 is equipped with a 2-3/4" backset and a stainless steel turn piece, faceplate, and strike, ensuring durability and resilience against wear. The ligature-resistant lever design enhances user safety, making it suitable for various applications, including psychiatric facilities and other high-risk environments. TownSteel offers an extensive range of ligature-resistant locks, allowing for versatile installation across different door types, including single and double dummy, passage/closet, and classroom functions. With an ADA-compliant design and a five-year limited warranty, this lockset promises reliability and peace of mind. Choose the TownSteel MRX-S-L-02-630 for a secure and practical locking solution that meets the stringent demands of modern security needs.
Ligature Resistant Mort Lock
Heavy Duty Anti-Ligature Level Mortise Lockset, Grade 1, Privacy/Bathroom with Deadbolt, Non-Keyed, ANSI, Sectional Lever Trim, Satin Stainless Steel
Levered ligature-resistant stainless steel mortise lock optimized for 1-3/4" door thickness. Features 2-3/4" backset, stainless steel turn piece, faceplate and strike.
Grade 1 Heavy Duty Locks available in several trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant mortise locks.
Available types include (but are not limited to):
- Single Dummy
- Double Dummy
- Passage/Closet
- Privacy
- Entry/Office
- Classroom
- Storeroom
- Asylum
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F02 - Privacy
Application: Ligature Resistant
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 02-Privacy or Bathroom
Grade: Grade 1
Leverknob Design: Ligature Resistant Lever
Limited Warranty: 5 Years
Lock Face Size: 8 In. x 1-1/4 In.
Pack Qty: 1
Roseescutcheon Design: Rose
Screws: Combination
Series: TownSteel Ligature Resistant Mortise Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
