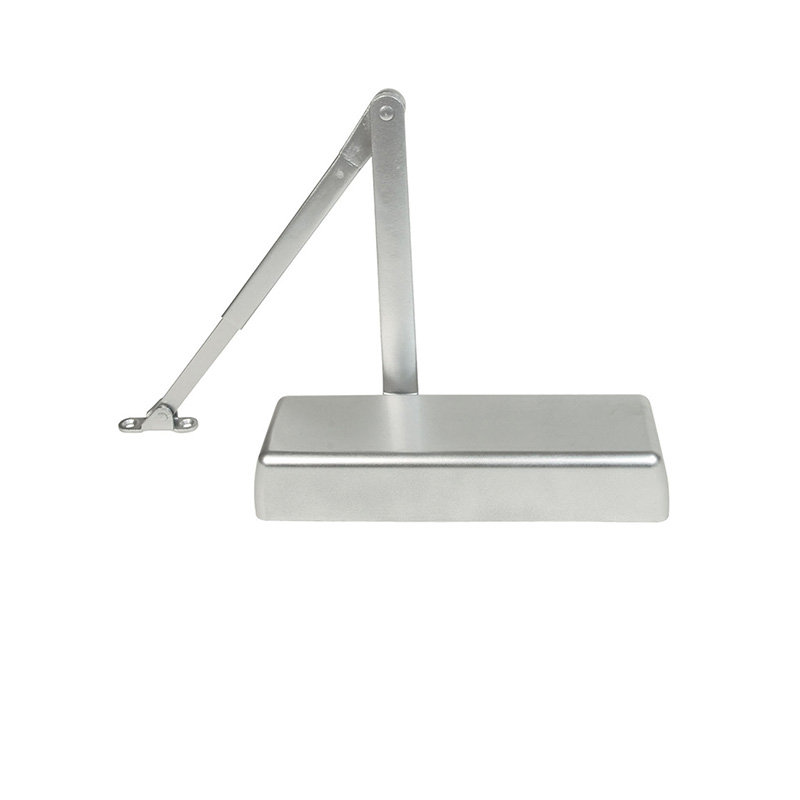

TownSteel TDC-40-HCUSH-AL-1 HCUSH Door Closer

TownSteel TDC-40-HCUSH-AL-1 Door Closer, HCUSH is a heavy-duty commercial closer designed to withstand the demands of high-traffic environments. This ANSI/BHMA certified Grade 1 closer is UL 10C 3-hour rated, making it a reliable choice for both new installations and retrofitting existing LCN 4040 applications. Crafted with a robust cast iron body, this non-handed closer is built for durability and performance. The TDC-40 features precision rack and pinion construction, ensuring smooth operation while adapting to various traffic levels. Its adjustable spring power allows for customization from size 1 to 6, making it versatile for both interior and exterior placements. The hold-open function enhances convenience in busy areas, ensuring doors remain open when needed. With a matte silver finish (689/US28), the TDC-40 not only performs exceptionally but also complements a variety of architectural styles. Installation is straightforward, thanks to its parallel arm mounting style. Ideal for commercial settings, this door closer is engineered to meet the challenges of frequent use while providing security and accessibility. Choose the TownSteel TDC-40-HCUSH-AL-1 for a dependable, efficient solution to your door control needs.

Door Closer, HCUSH

TDC40 Heavy Duty Commercial Closer, Hold Open CUSH Parallel Arm, Aluminum Painted

TDC 40 Door Closer is ANSI/BHMA certified heavy duty Grade 1, and UL 10C 3-hour rated. It's designed for new or retrofit LCN 4040 applications. Featuring a cast iron body and one of the most popular heavy duty models ever.

Overhead Closers available in a variety of applications and grades.

With options for low, medium and high-traffic applications, many TownSteel Overhead Closers are suitable for both interior and exterior placement.

TDC40 Features:

• For heavily-trafficked areas, interior or exterior
• Heavy-duty cast-iron body, non-handed
• Precision rack and pinion construction
• Adjustable spring power from size 1 to 6

TDC70 Features:

• For high-traffic applications, interior or exterior
• Heavy-duty aluminum body, non-handed
• Precision rack and pinion construction
• Separate and adjustable latch, sweep and backcheck valves standard

TDC85 Features:

• For high-traffic applications, interior or exterior
• Heavy-duty aluminum body, non-handed
• Precision rack and pinion construction
• Tri-Style installation: includes hardware and brackets to allow for regular, top jam and parallel arm installation
