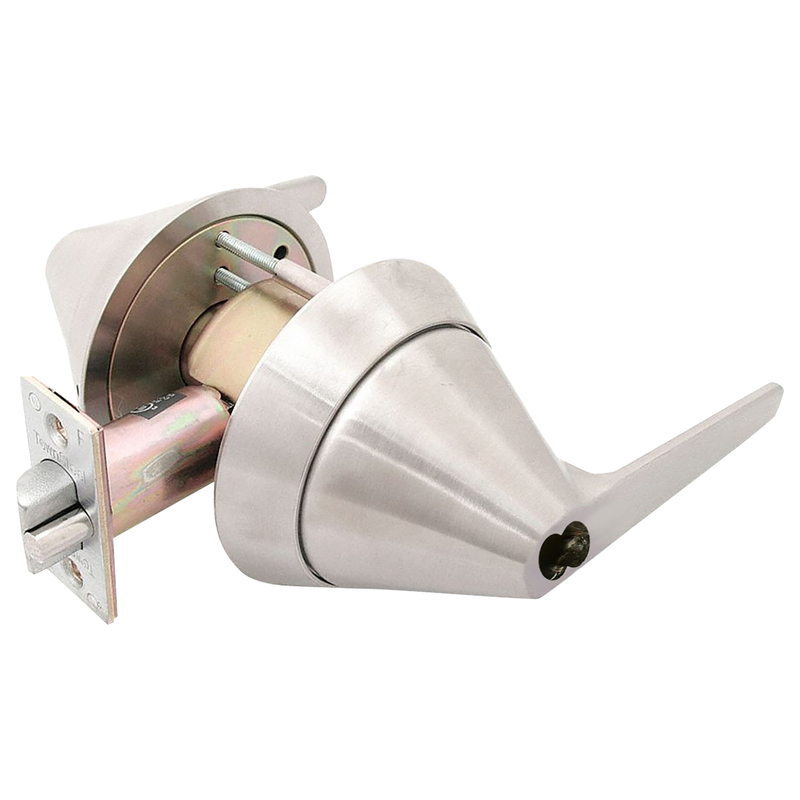

TownSteel TRX-L-109-630-CLFIC Ligature-Resistant Cylinder LockTownSteel TRX-L-109-630-CLFIC Ligature Resistant Cyl Lock offers a heavy-duty solution for facilities housing patients at risk. This Grade 1 entry lock features clutched levers and is designed for doors with a thickness ranging from 1-3/4 inches to 2 inches. The standard 2-3/4 inch backset can be adjusted to a 5-inch option, ensuring versatility for various installations. Crafted with a satin stainless steel finish, this cylindrical lock is both durable and aesthetically pleasing. Designed for enhanced security, the TRX-L model includes a Corbin 6-Pin LFIC preparation, making it compatible with specific key systems. The lock's tamper-resistant mounting screws and through-bolt mounting ensure reliable installation on both wood and metal doors. Additionally, the lock meets ADA compliance standards, making it accessible for all users. With a limited 5-year warranty, this ligature resistant lock is part of TownSteel's comprehensive line of security solutions tailored for sensitive environments. The TRX-L is ideal for applications requiring both safety and functionality, offering peace of mind to facility operators and caregivers alike. Upgrade your security with TownSteel’s innovative locking technology, designed specifically for the unique needs of healthcare and similar facilities.
Ligature Resistant Cyl Lock
Heavy Duty Ligature Resistant Lever Cylindrical Lockset, Grade 1, Entry, Keyed, Clutched Levers, 2-3/4 In. Backset, Corbin 6-Pin LFIC Prep, Satin Stainless Steel
For facilities housing patients at risk; designed for a 1-3/4" to 2" door thickness. Features a 2-3/4" backset standard (5" optional); stainless steel faceplate and strike; through-bolt mounting tamper resistant mounting screws, for wood and metal door.
Featuring many options designed for housing patients at risk.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant cylindrical locks.
Available types include (but are not limited to):
- CRX-A ANSI Grade 1 Cylindrical Locks with Ligature Resistant Trim-Arch
- CRX-K ANSI Grade 1 Cylindrical Locks with Ligature Resistant Trim-Knob
- TRX-L ANSI Grade 1 Cylindrical Locks with Ligature Resistant Trim-Lever
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F109 - Entry/Office
Application: Ligature Resistant
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Door Thickness: 1-3/4 In. - 2 In.
Finish: 630/US32D
Function: 109-Entry or Office
Grade: Grade 1
Limited Warranty: 5 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Cylindrical Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
