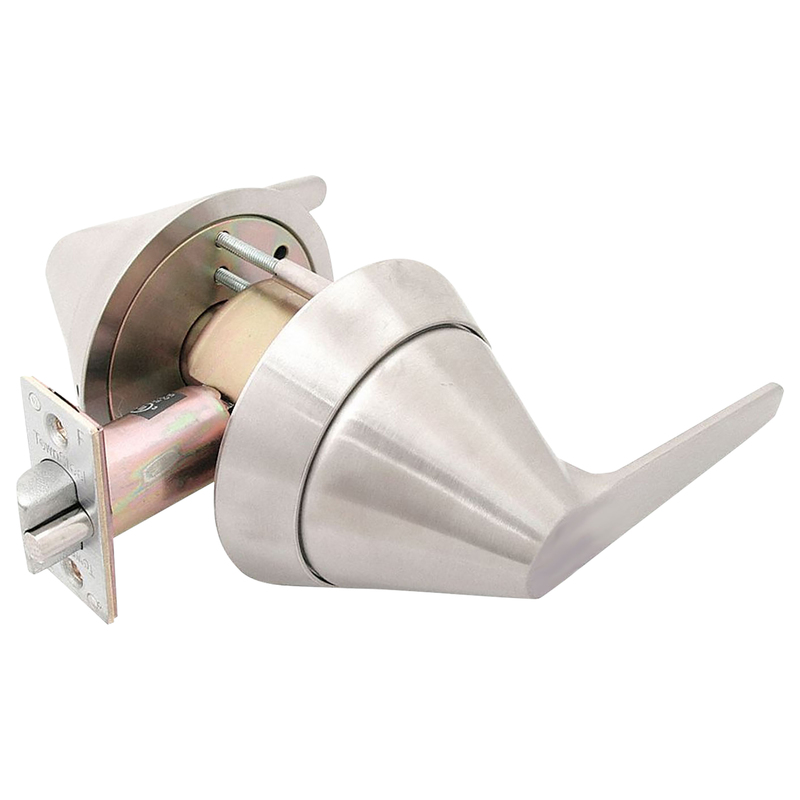

TownSteel TRX-L-75-630 Ligature Resistant Cyl Lock offers a heavy-duty solution designed specifically for facilities housing patients at risk. This Grade 1 passage lockset features clutched levers and is non-keyed, ensuring safety and ease of use. Compatible with door thicknesses ranging from 1-3/4 inches to 2 inches, it comes standard with a 2-3/4-inch backset, with a 5-inch option available. Constructed with a durable satin stainless steel finish, the lock includes a robust stainless steel faceplate and strike, enhancing both security and aesthetics. The tamper-resistant mounting screws and through-bolt installation ensure reliable performance on wood and metal doors, making it an ideal choice for healthcare environments. TownSteel's ligature resistant locks stand out in the commercial contract hardware industry, reflecting their commitment to safety and quality. The TRX-L-75-630 features a standard latch type of spring latch (unguarded) and complies with ADA requirements, ensuring accessibility for all users. With a limited 5-year warranty, this cylindrical lock not only meets rigorous safety standards but also provides peace of mind for building professionals and knowledgeable homeowners alike. Choose the TownSteel TRX-L-75-630 to ensure secure and safe access in sensitive environments.
Ligature Resistant Cyl Lock
Heavy Duty Ligature Resistant Lever Cylindrical Lockset, Grade 1, Passage, Non Keyed, Clutched Levers, 2-3/4 In. Backset, Satin Stainless Steel
For facilities housing patients at risk; designed for a 1-3/4" to 2" door thickness. Features a 2-3/4" backset standard (5" optional); stainless steel faceplate and strike; through-bolt mounting tamper resistant mounting screws, for wood and metal door.
Featuring many options designed for housing patients at risk.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant cylindrical locks.
Available types include (but are not limited to):
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F75 - Passage
Application: Ligature Resistant
Door Thickness: 1-3/4 In. - 2 In.
Finish: 630/US32D
Function: 75-Passage or Closet
Grade: Grade 1
Limited Warranty: 5 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Cylindrical Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
