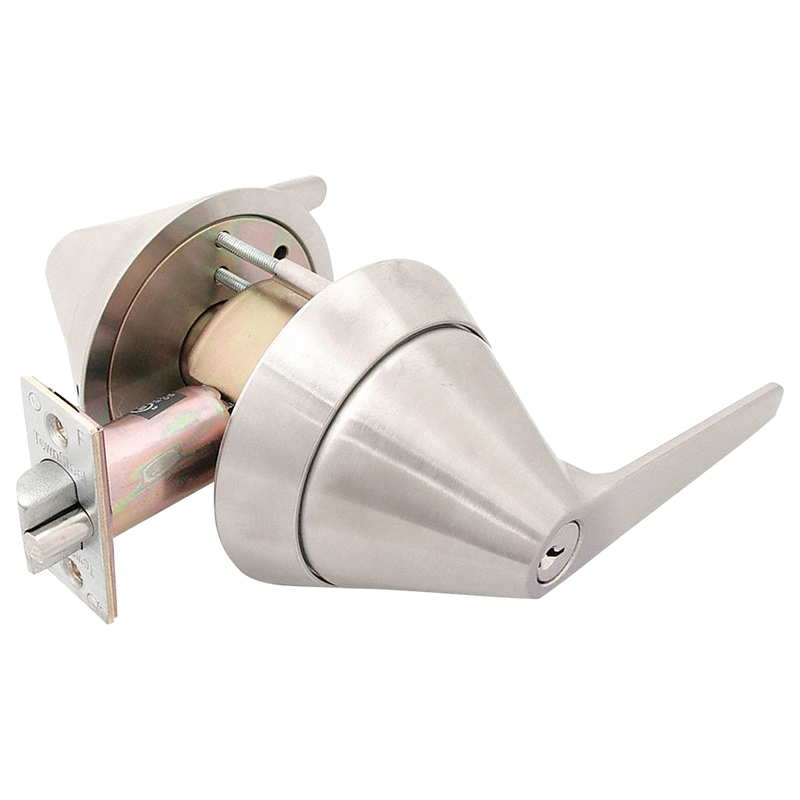

TownSteel TRX-L-87-630 Ligature Resistant Cyl Lock is a heavy-duty lever cylindrical lockset designed to meet the stringent requirements of facilities housing at-risk patients. This Grade 1 lock features a robust design with a clutched lever mechanism, ensuring both security and accessibility. It accommodates door thicknesses ranging from 1-3/4 inches to 2 inches and comes standard with a 2-3/4 inch backset, with an optional 5-inch backset available. Constructed with a satin stainless steel finish, the TRX-L-87-630 boasts a stainless steel faceplate and strike, providing durability and a sleek appearance. The tamper-resistant mounting screws and through-bolt mounting enhance security for both wood and metal doors. With an ANSI function of F87 for asylum settings, this lock is specifically engineered for ligature resistance, making it an ideal choice for sensitive environments. TownSteel offers the most comprehensive line of ligature resistant locks in the commercial contract hardware sector, ensuring that you have access to the best options for safety and security. Backed by a 5-year limited warranty, the TRX-L-87-630 is a reliable solution that combines function and safety for professional environments.
Ligature Resistant Cyl Lock
Heavy Duty Ligature Resistant Lever Cylindrical Lockset, Grade 1, Asylum, Keyed, Clutched Levers, 2-3/4 In. Backset, Satin Stainless Steel
For facilities housing patients at risk; designed for a 1-3/4" to 2" door thickness. Features a 2-3/4" backset standard (5" optional); stainless steel faceplate and strike; through-bolt mounting tamper resistant mounting screws, for wood and metal door.
Featuring many options designed for housing patients at risk.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant cylindrical locks.
Available types include (but are not limited to):
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F87 - Asylum
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In. - 2 In.
Finish: 630/US32D
Function: 87-Asylum
Grade: Grade 1
Limited Warranty: 5 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Pack Qty: 1
Screws: Combination
Series: TownSteel Ligature Resistant Cylindrical Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
