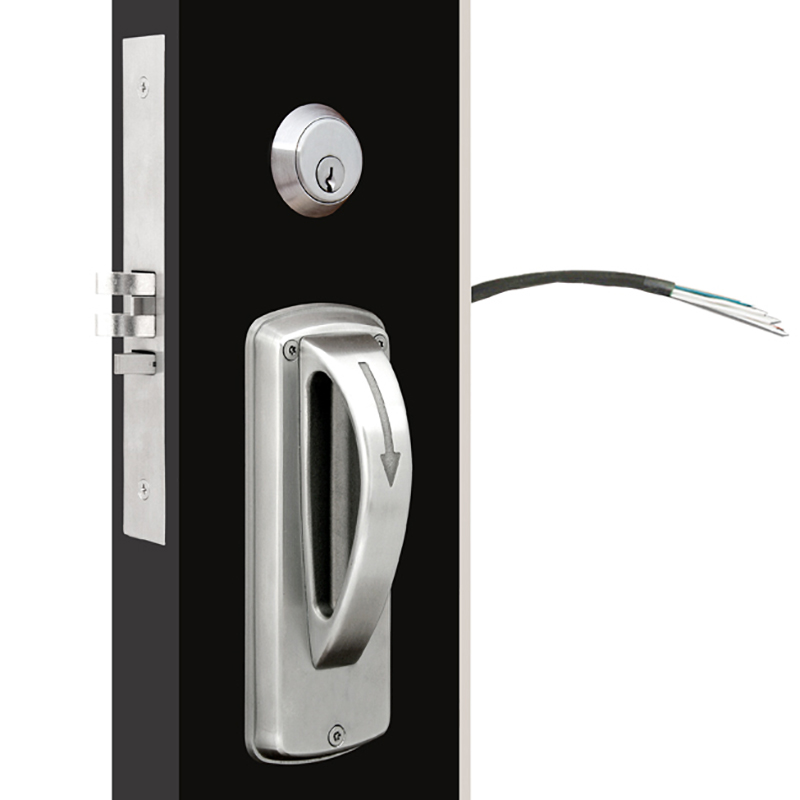

TownSteel XMRX-A-630-LHR-242 Ligature-Resistant Mortise LockTownSteel XMRX-A-630-LHR-242 Ligature Resistant Mort Lock offers a robust solution designed specifically for environments where safety and security are paramount. This electrified mortise lock features a 24VDC fail secure mechanism and is equipped with 3-position monitoring, ensuring reliable access control. Crafted from satin stainless steel, it boasts an elegant arch trim design, making it both durable and visually appealing. Engineered for a 1-3/4" door thickness and a 2-3/4" backset, this ANSI Grade 1 heavy-duty lock includes a deadbolt, latch bolt, thumb turn, and ANSI strike, providing comprehensive security features. The lock’s ligature-resistant design is ideal for high-risk areas, such as healthcare facilities, where safety is a priority. Additional features include compatibility with 12VDC fail safe/fail secure options, monitoring for request-to-exit, and an auxiliary latch bolt for further security. The lock is hardwired for reliable performance and is ADA compliant, ensuring accessibility for all users. With a limited warranty of 5 years mechanical and 1 year electrical, the TownSteel XMRX-A-630-LHR-242 is a trusted choice for professional applications where security and safety meet quality craftsmanship.
Ligature Resistant Mort Lock
Electrified Ligature Resistant Mortise Lock, Arch Trim, 24VDC Fail Secure, 3-Position Monitoring, Single Cylinder, Left Hand Reverse, Satin Stainless Steel
Electrified ligature-resistant mortise lock designed with a 2-3/4â backset for a 1-3/4â door thickness. Features stainless steel trim, latch bolt, dead bolt, thumb turn and ANSI strike.
ANSI Grade 1 heavy duty locks with several available trims.
TownSteel boasts the most complete line of ligature resistant locks available today in the commercial contract hardware industry, including these ligature resistant electric mortise locks.
Available features include (but are not limited to):
- 12VDC Fail Safe/Fail Secure
- 3-Position Monitoring
- Dead Bolt
- Monitors Request-to-Exit
- Auxiliary latch bolt
Attributes
Accessible: Yes
Ada Compliance: Yes
Application: Ligature Resistant
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/4 In.
Finish: 630/US32D
Function: 242-24VDC Fail Secure, 3-Position Monitor
Grade: Grade 1
Handing: LHR
Latch Backset Dim: 2-3/4 In.
Leverknob Design: Arch Trim
Limited Warranty: 5 Years Mechanical, 1 Year Electrical
Lock Face Size: 8 In. X 1-1/4 In.
Operating Voltage: 24VDC
Pack Qty: 1
Power: Hard Wired
Screws: Combination
Series: TownSteel Ligature Resistant Electric Mortise Locks
Side Locked: Outside
Std Latch Type: Mortise Latch
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Electric Mortise Lock
Switch Type: Security Monitor
Type: Electric Locks
Unit of Measure: Each
