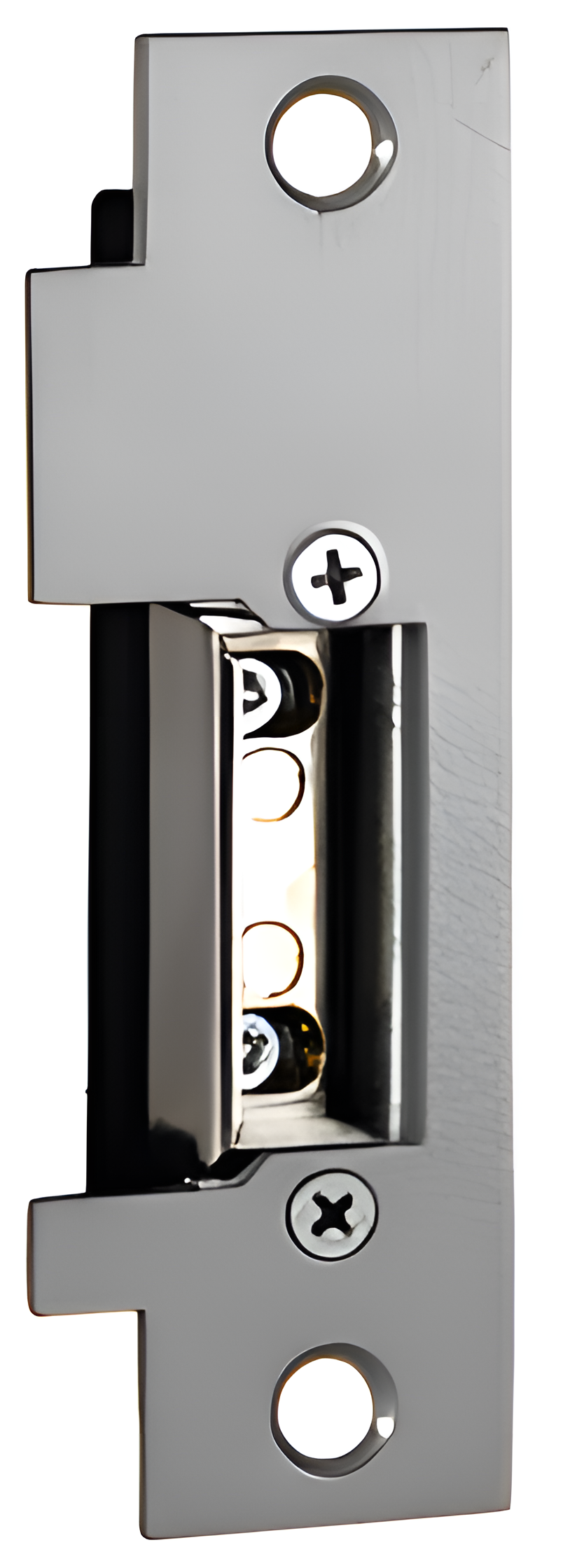

Trine 2009C-16-24 Electric Strike, 16-24VAC/DC, Fail Secure, Satin Chrome, 4-7/8in x 1-1/4in

Trine Access Technology 2009C-16-24 Electric Strike offers a reliable and versatile solution for access control in both new and replacement installations. Engineered for use in metal jambs, this electric strike features a fail secure design, ensuring maximum security by keeping the door locked during power failures. With a standard 4-7/8" ANSI faceplate that requires minimal jamb modification, it accommodates locksets with up to a 5/8" throw, making it an excellent choice for various door configurations. This electric strike boasts a satin chrome finish, enhancing both durability and aesthetic appeal. Its dimensions include a cavity depth of 9/16", cavity width of 5/8", and cavity height of 1-11/16", designed to fit narrow style mortise backsets of 1-9/16". The strike operates on 16-24VAC/DC power, with options for fail-safe functionality available on DC models. Electrical characteristics are robust, supporting multiple voltage ranges including 12VDC, 24VDC, and 16-24VAC, ensuring adaptability to different systems. The 2009C-16-24 is non-handed, allowing for flexible installation, and it is an ideal component for professionals looking to enhance security measures in residential or commercial settings. Secure your access points with the reliability of Trine Access Technology’s electric strike.

Electric Strike, 16-24VAC/DC, Fail Secure, ASA 4-7/8in x 1-1/4in Faceplate, up to 5/8in Throw, Satin Chrome

For use in new or replacement installations in metal jambs. Centerline of the latch is 3/8" below ANSI centerline for offset applications. Fits a standard 4-7/8" ANSI prep with little jamb modification. Use with locksets having up to 5/8" throw, based on 1/8" door gap.

Features:

• Steel Face Plate: 4-7/8" x 1-1/4"
• Narrow Style Face Plate -- Mortise Backset: 1-9/16"
• Cavity Depth: 9/16"
• Cavity Width: 5/8"
• Cavity Height: 1-11/16"
• Options: RS (fail safe) -- on DC only -- add "RS" to model #

Electrical Characteristics:

Voltage	Current/Amps	Ohms	Sound	Duty
6-14VAC	0.44 - 1.10	8.5	Buzz	Intermittent
6-14VDC	0.70 - 1.60	8.5	Silent	Continuous
16-24VAC	0.22 - 0.33	50.0	Buzz	Intermittent
16-24VDC	0.32 - 0.47	50.0	Silent	Continuous
12VDC	0.20 - 0.33	60.0	Silent	Continuous
24VDC	0.11 - 0.47	120.0	Silent	Continuous

Finishes:

• 2009 - Brass powder coated
• 2009C - Satin chrome
