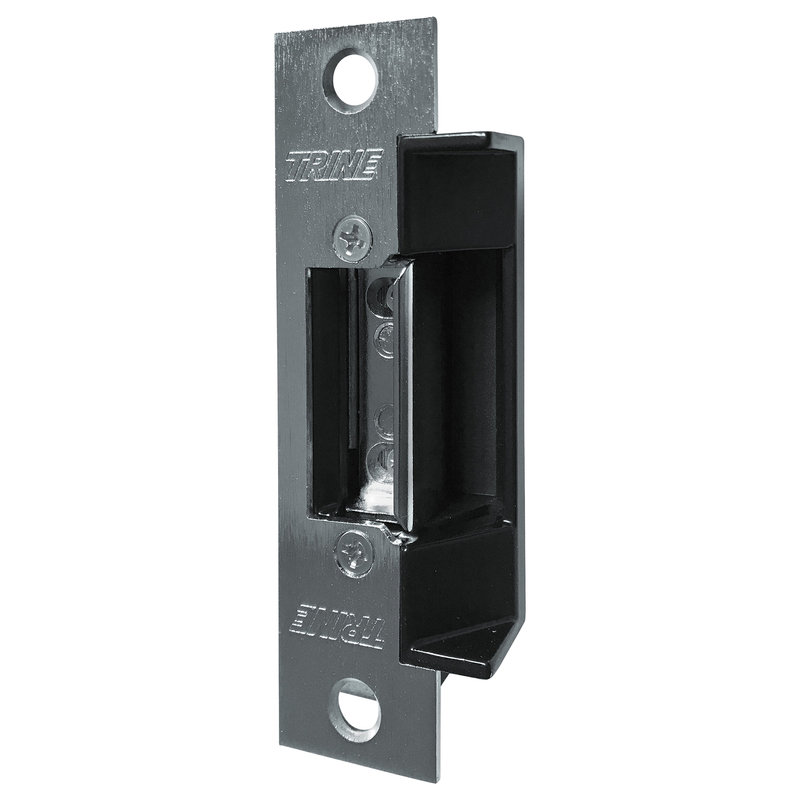

Trine 2012C-6-14AC/DC Aluminum Frame Electric Strike

Trine 2012C-6-14AC/DC Electric Strike - Aluminum Frame offers a robust solution for securing entryways with its fail secure design. Designed for light commercial use, this electric strike operates on 6-14VAC/DC, making it versatile for various applications. Measuring 4-7/8" x 1-1/4", it features a sleek satin chrome finish that enhances both aesthetics and durability. This model is non-handed, simplifying installation in new or replacement applications, and is ideal for situations involving poorly aligned doors and frames. With an impressive holding force of 900 lbs and a durability rating of 500,000 life cycles, it ensures long-lasting performance. The strike includes a 1/8" horizontal latch adjustment feature, allowing for greater flexibility with wider latch bolts and misaligned locksets. The solid cast latch, chrome plated for increased resistance to wear, and quick connection screw terminals make installation efficient and straightforward. Additionally, it releases under slight door pre-load, providing an added layer of convenience. Whether for commercial spaces or enhancing security in residential settings, the Trine 2012C-6-14AC/DC Electric Strike is a reliable choice that combines functionality with a modern design.

Electric Strike - Aluminum Fra

Electric Strike, 6-14VAC/DC, Fail Secure, 4-7/8" x 1-1/4", Satin Chrome

The adjustable 1000 & 2000 Seies is a light commercial series. These strike are non-handed used in new and replacement applications. The stike is used in poorly aligned frames. Holding force is 900lbs and a duribility testing of 500,000 life cycles.

Allows adjustment for wider latch bolts & poorly aligned doors & locksets.

• 1/8” Horizontal Latch Adjustment.
• Releases Under Slight Door Pre-Load.
• 500,000 Life Cycles -- Holding Force - 900 lbs.
• Solid Cast Latch - Chrome Plated.
• Non Handed Operation.
• Screw Terminals - Quick Connection.

Resources

• 2000 Series Electric Strikes Cut Sheet
• 2023 Trine Price Book (effective 4.28.2023)
