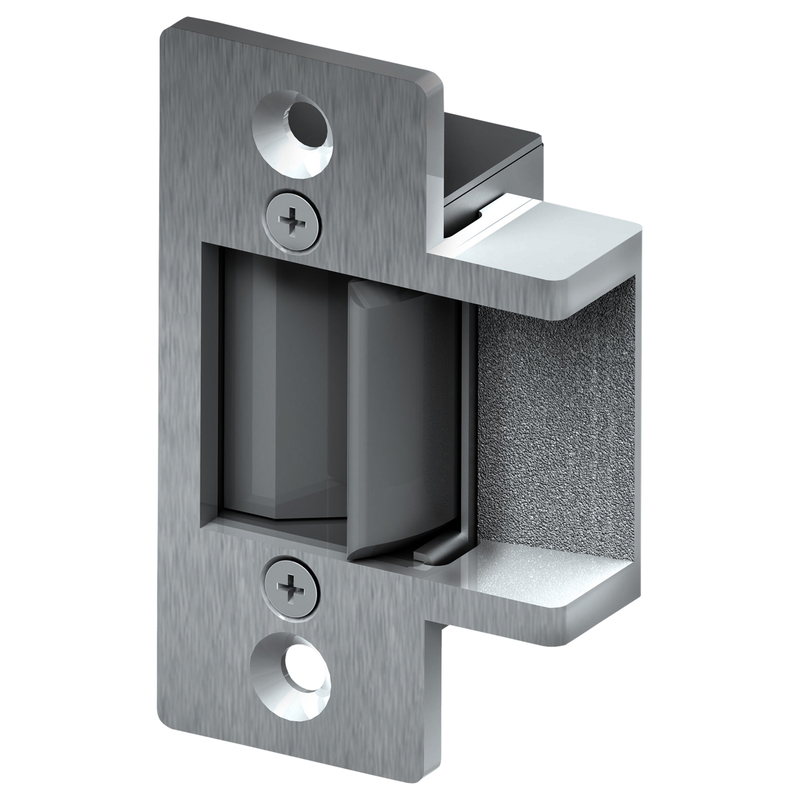

Trine 3234LC-26D 3000 Series Electric Strike

Trine 3234LC-26D 3000 Series Electric Strike delivers unmatched reliability and security in a compact design. As the smallest electric strike in the world, it boasts a Grade 1 rating, ensuring superior performance with over 500,000 life cycles thanks to its solid stainless steel latch. This electric strike operates on 12/24VAC/DC power, offering flexibility for various installation needs. Designed for commercial applications, the 3000 Series features a fail secure mechanism, with an optional fail safe configuration available. With a remarkable holding force of up to 1,500 lbs, it provides peace of mind for high-traffic areas. The faceplate measures 2-3/4" x 1-1/8" and is finished in a sleek satin chrome (626/US26D), fitting seamlessly into modern architectural designs. Installation is straightforward, making it a practical choice for building professionals and knowledgeable homeowners alike. The amp draw ranges from .11 to .29 AC/DC, ensuring efficient energy use. Backed by a one-year limited warranty, the Trine 3234LC-26D is a dependable solution for enhancing security in any commercial environment. Upgrade your door hardware with this innovative electric strike for enhanced safety and accessibility.

3000 Series Electric Strike

3000 Series Electric Strike, 12/24VAC/DC, Fail Secure2-3/4" x 1-1/8", Satin Chrome

The 3000 Series Electric strike. The smallest strike in the world. Grade 1 sereies electric strike with over 500,000 life cycles with solid steel stainless steel latch. Fail secure is standard fail safe is optional.

A BHMA Grade 1 Mechanism with up to 1,500 lbs of holding force.

Resources

• 2023 Trine Price Book (effective 4.28.2023)
• 3000 Series Electric Strikes Cut Sheet
