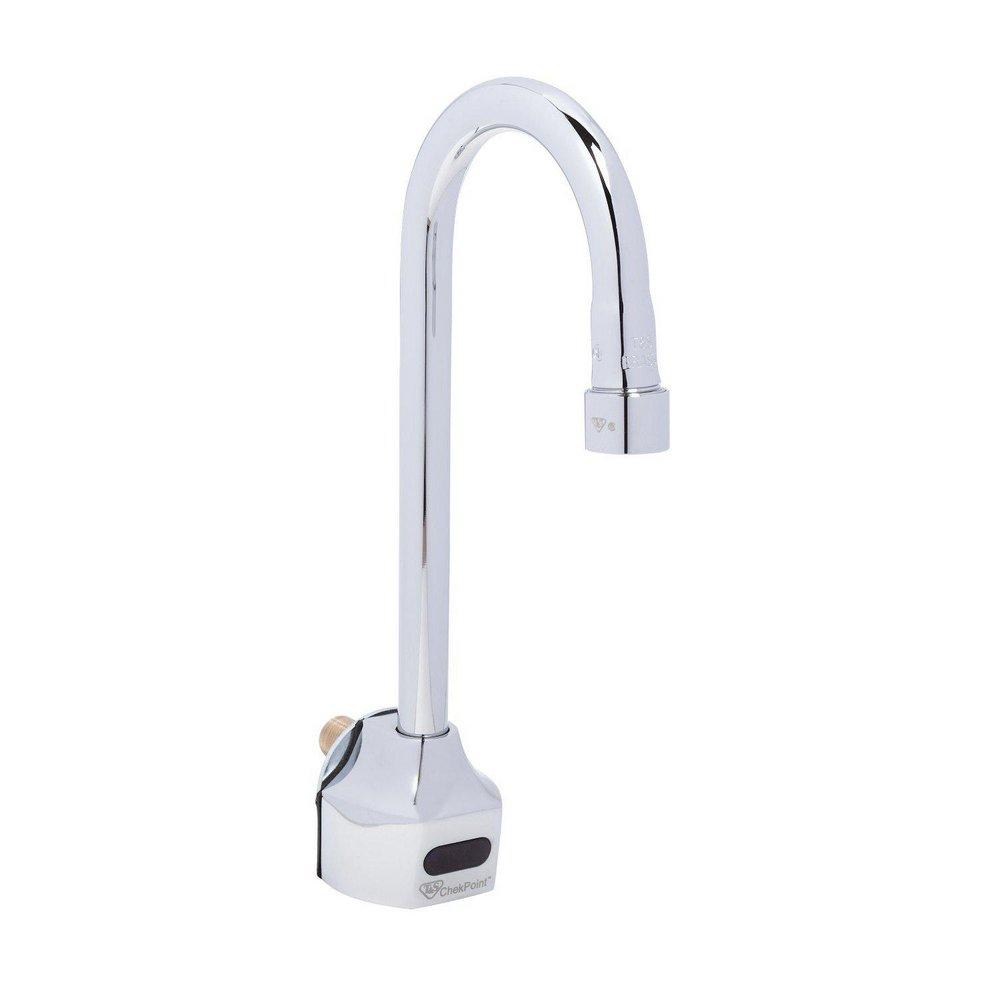

T&S Brass EC-3101-VF05 Wall Mount Sensor Bathroom Sink Faucet in Chrome Plated offers a perfect blend of modern technology and practical design, making it an ideal choice for commercial applications. Crafted with a polished chrome plated brass body, this faucet not only ensures durability but also enhances the aesthetic of any bathroom setting. The faucet features a single-hole wall mount design and is equipped with a 4 1/8" rigid gooseneck spout, providing ample reach for everyday use. Its 0.5 GPM vandal-resistant non-aerated spray device (Series 6 B-0199-06-N05) promotes water conservation while maintaining effective performance. The water-resistant control module includes internal flow control switches, allowing users to easily adjust auto time out and shut-off delay settings for optimal convenience. For added functionality, the optional auto flush feature activates water flow for 30 seconds after every 12 inactive hours, making it perfect for high-traffic areas. Powering the faucet is versatile, with options for a plug-in AC transformer or (4) AA batteries, complemented by a low battery LED indicator light to ensure you're always informed. Installation is straightforward with the included 18" flexible stainless steel supply hoses and 3/8" compression inlet connections. The mechanical temperature mixing valve, complete with check valves, guarantees a consistent and comfortable water temperature. ADA compliant and adhering to ANSI and ASME standards, this faucet meets the needs of both builders and contractors by combining performance and style. With a height of 11 inches and a spout reach of 4 1/8 inches, the T&S Brass EC-3101-VF05 is designed for efficiency, reliability, and ease of use in any modern bathroom.
Wall Mount Sensor Bathroom Sink Faucet in Chrome Plated
ADA Compliant: Yes
ANSI: ANSI 61
ASME: ASME A112.18.1
Application: Commercial
Bathroom Faucet Type: Sensor, Wall Mount
Battery Size: AA
Battery Type: Alkaline
CARB OTC LEED Compliant: No
CEC Compliant: For Sale in CA
CSA Certified: CSA B125.1
Collection: ChekPoint™
Color Finish Category: Chromes
Color Finish Name: Chrome Plated
Deck Plate Included: No
Depth: 4-1/8 in
Faucet Center Size: 4 in
Faucet Connection Size: 3/8 in
Faucet Height: 11 in
Faucet Material: Brass
Faucet Mount: Wall Mount
Flow Rate: 0.5 gpm
GSA Approved: No
Height: 11 in
IAPMO Listed: No
ISO: ISO 9001
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
NSF: NSF 61
NSF Certified: Yes
Number of Holes: 1 Hole
Origin: Global
Power Source: Battery
Proposition 65: WARNING This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Spout Height: 5-5/8 in
Spout Reach: 4-1/8 in
Spout Swivel: 180°
Spout Type: Fixed
Trim Only: No
UL Listed: Yes
Upc: 671262740852
Volts: 6V
Water Sense Labeled: No
Width: 2-1/4 in
