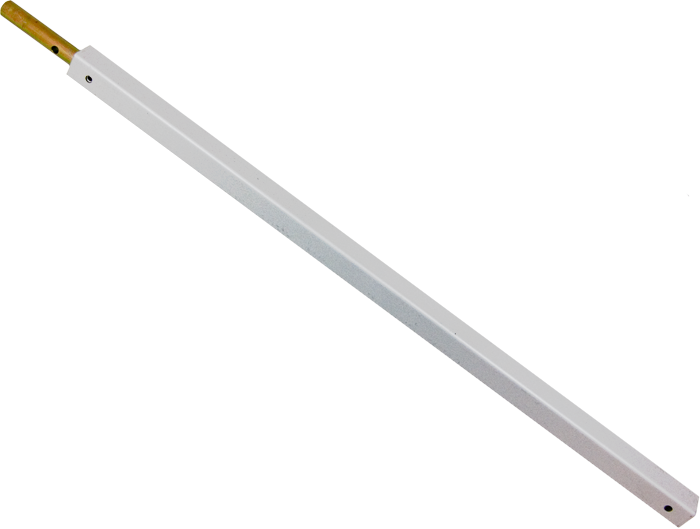

Von Duprin 051810-626 Extension Rod Kit 36in for SVR Devices 3527A/9827, 626/US26D Satin Chrome

Von Duprin 051810-626 Extension Rod Kit is designed for SVR devices 3527A/9827, featuring a sleek satin chrome finish that blends seamlessly with modern architectural aesthetics. This extension rod kit is an essential component for ensuring optimal functionality of exit devices on taller doors, accommodating heights over 7 feet (2134mm). Constructed with robust 1/2" square tubing, the kit includes a top rod measuring 34-15/16" (887mm) and a bottom rod at 31-1/4" (794mm). For applications requiring additional height, extension rods are available in lengths of 1’ (205mm) or 3’ (914mm), tailored for doors exceeding the standard 7-foot height. Additionally, a one-piece top rod option is available for 8’ (2438mm) to 10’ (3048mm) doors, ensuring a secure fit for a variety of installations. Compatible with the 7827 Series and 9827/9857 Series exit devices, this extension rod kit provides a reliable solution for both commercial and residential settings. The brushed chrome finish not only enhances durability but also provides an elegant touch to any entryway. Upgrade your security hardware with the Von Duprin 051810-626 Extension Rod Kit, where quality meets functionality.

Extension Rod Kit 36in for SVR Devices 3527A/9827, 626/US26D Satin Chrome

3327A/3527A:

• 1/2" square tubing, standard rods accommodate 7’(2134mm) door.
• Top rod length is 34-15/16" (887mm).
• Bottom rod length is 31-1/4" (794mm).
• Extension rods available 1’ (205mm) or 3’ (914mm) for doors over 7’.
• One piece top rod available for 8’ (2438mm) -10’ (3048mm) door.

9827/9927:

• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors.
• Top rod length: 34-15⁄16" (887mm).
• Bottom rod length: 31-1⁄2" (794mm).
• Extension rods available in 3’ (914mm) for doors over 7’.
• One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.

Features

• Bottom rod length is 31-1/4" (794mm).
• Extension rods available 1’ (205mm) or 3’ (914mm) for doors over 7’.
• 1/2" square tubing, standard rods accommodate 7’(2134mm) door.
• One piece top rod available for 8’ (2438mm) -10’ (3048mm) door.
• Top rod length is 34-15/16" (887mm).
