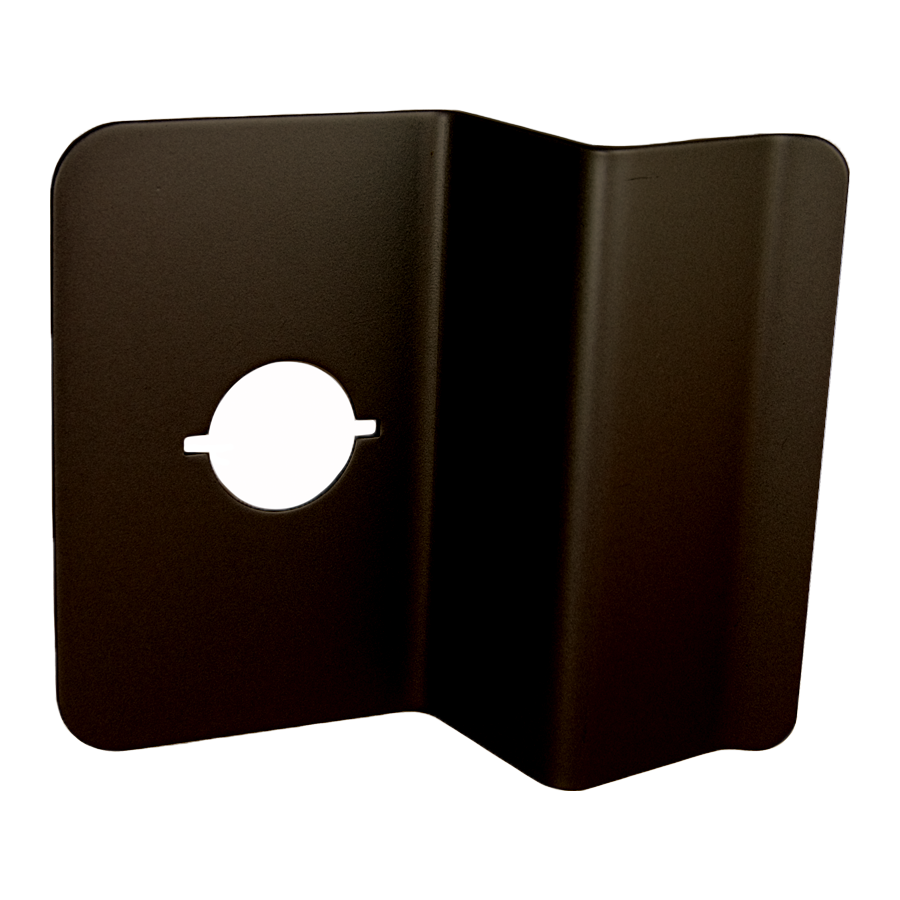

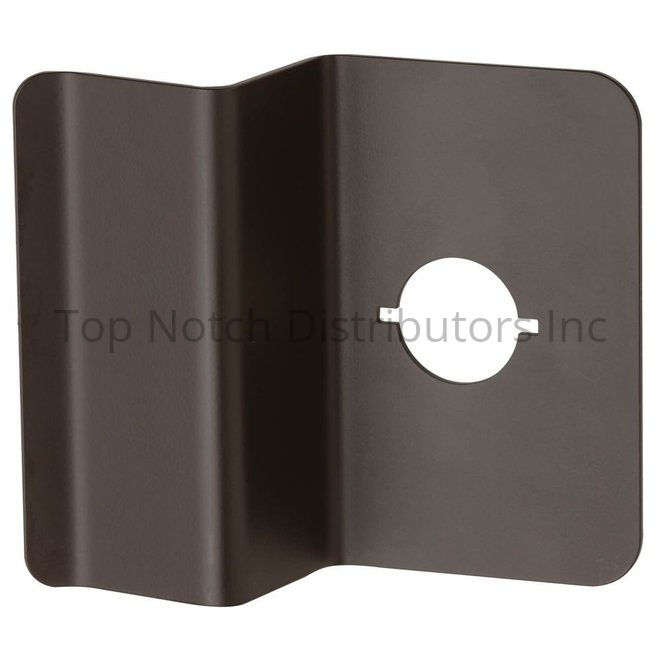

Von Duprin 210NL-695 22 Series 710 Night Latch Trim - Dark Bronze Finish

Von Duprin 210NL695 Night Latch Trim for 22 Series 710 Dark Bronze Finish is an essential component for enhancing the security of public buildings. Renowned for its durability and reliability, this night latch trim is designed to work seamlessly with Von Duprin's 22 Series exit devices, providing a robust locking mechanism that ensures safety without compromising ease of use. The key retracts the latchbolt, allowing for quick and efficient access, making it ideal for high-traffic areas. Crafted from high-quality cast aluminum, the 210NL695 boasts a dark bronze finish that complements various architectural styles while ensuring long-lasting performance. With dimensions of 5-3/8" x 4-25/32" x 3/32" and a projection of 1-31/32", it fits standard doors with a thickness of 1-3/4". This non-handed design simplifies installation and allows for flexibility in application. Additionally, the product comes with a limited warranty of 5 years for mechanical components and 2 years for electro-mechanical parts, underscoring Von Duprin's commitment to quality. Whether it's for new construction or retrofitting, the Von Duprin 210NL695 Night Latch Trim is a reliable choice for professionals seeking top-tier security solutions.

Night Latch Trim for 22 Series 710 Dark Bronze Finish

A mainstay in public buildings for decades Von Duprin's safety products are known for their unparalleled quality and performance. From innovative exit devices to electronic access control solutions and accessories, Von Duprin never compromises when security is at stake. In fact, an independent study of more than 100 commercial facilities across the U.S. documented that Von Duprin exit devices require significantly less maintenance over a 30-year period than any other brand. The quality of Von Duprin’s exit devices provides confidence and peace of mind in critical moments.

• EO - No Outside Trim / Exit Only
• ANSI Function: 01
• DT - Dummy Trim / Pull When Dogged
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI Function: 02
• NL - Nightlatch / Key Retracts Latchbolt
• ANSI Function: 03
• Cylinder Type: Rim
• NL-OP Night latch / Key retracts latchbolt optional pull required
• TP - Thumbpiece / Key Locks & Unlocks
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI Function: 05
• Cylinder Type: 1-1/4" Mortise
• K - Knob / Key Locks & Unlocks
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• Cylinder Type: Furnished
• L - Lever / Key Locks & Unlocks
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• Cylinder Type: 1-1/4"
• Cast Aluminum
• Used with the 22 Series Devices
• Key Retracts Latchbolt
• Night Latch Trim
• Non Handed

Features

• ANSI Function: 02
• Cylinder Type: Rim
• ANSI Function: 03
• ANSI Function: 14
• Cylinder Type: 1-1⁄4" Mortise
• Projection: 1-31/32" (42 mm)
• NL: Nightlatch/key retracts latchbolt
• Projection: 2-15/16" (75 mm)
• Cylinder Type: Furnished
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Escutcheon Plate Size: 3" x 4 25⁄32" x 3⁄32" (76 x 121 x 2 mm)
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• K-BE: Knob-blank escutcheon/Always operable, no cylinder
• Projection: 2-15⁄16" (75 mm)
• K: Knob/key locks & unlocks
• DT: Dummy trim/pull when dogged
• ANSI Function: 08

Resources

• Cut Sheet
• Cut Sheet
