Von Duprin 22-ALK-689-36 Alarmed Kit for 22 Series Exit Device offers an effective solution to deter unauthorized access while maintaining a safe means of egress. This alarm kit is designed to fit 3-foot exit devices, featuring a robust internal horn that activates at an impressive 85 decibels when the touch bar is depressed. It conveniently allows for arming or disarming via key, making it adaptable to your security needs. Designed for extreme environments, the ALK kit operates effectively in temperatures ranging from -35 to 153 degrees Fahrenheit. The improved interface includes an LED indicator that clearly signals when the system is armed or disarmed. Additionally, the unit provides low battery notifications, ensuring you are always informed of its operational status. The kit can be powered through a 24V DC input or a 9V battery, providing flexibility in installation and operation. It is also retrofittable, making it compatible with current or older Von Duprin 98/99 models. With its aluminum powder-coated finish, this alarm kit not only enhances security but also adds a sleek appearance to your exit devices. Elevate your building's safety with the Von Duprin 22-ALK-689-36 Alarmed Kit, a reliable choice for modern security needs.

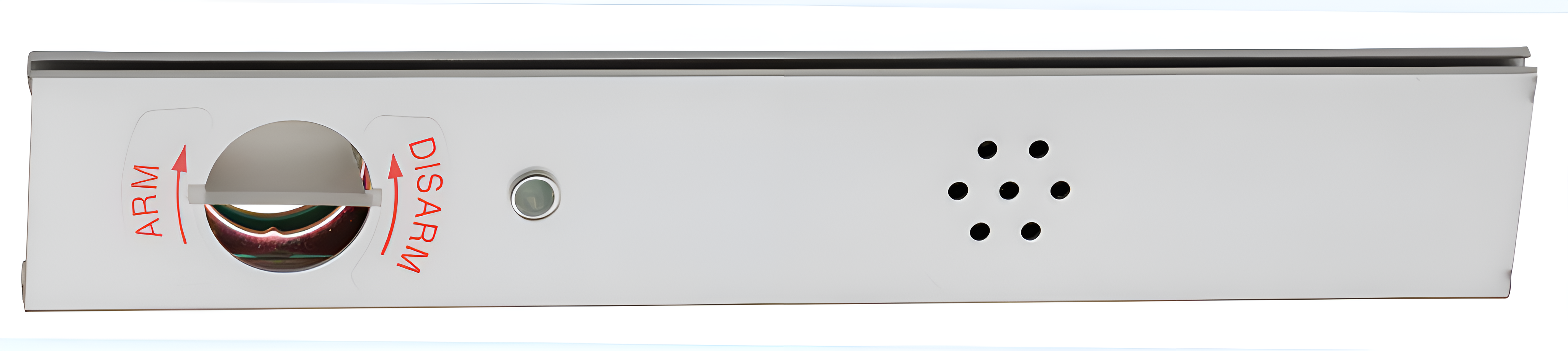

Alarmed Kit for 22 Series Exit Device Fits 3ft, 689/SP28 Powder-Coated Aluminum

Alarm kit (ALK) is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated. The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode. The horn is rated at 85 decibels.

Features:

• LED to signal when armed/disarmed.
• Low battery notification.
• Tested for extreme temperature environments from -35 to 153 degrees.
• Improved battery life and efficiency.
• 24V DC input or 9V battery
• External Inhibit input

Specifications:

• Improved Interface: LED display notifies when armed
• External Inhibit: Now comes as a standard feature
• 24V DC Input: Powered by PS902 or other 24V sources
• Optional Battery: Can be used to power unit or act as back up
• Retrofittable: Retrofits Von Duprin ALK in current or older 98/99 models
• Low Battery Notification: Unit will alert user when battery life is low

Resources

• Cut Sheet
