Von Duprin 2227DT-F-689-36 ALK Alarmed Fire Rated SVR Vertical Rod Exit Device with Dummy Trim, Grade 1

Von Duprin 2227DT-F-689-36 ALK KIT is an alarmed fire-rated surface vertical rod exit device, designed for both single and double doors. This robust unit meets UL standards for panic exit hardware and is classified as ANSI A156.3 – 2008 grade 1, ensuring top-notch quality and security. Its non-handed design makes installation straightforward, fitting door stiles as narrow as 3 5/8" (92 mm). This exit device features a deadlocking anti-friction latch bolt with a 5/8" (16 mm) throw, providing reliable security during emergency situations. The 2227DT is available with a variety of trim and electronic options, including the ALK alarm exit kit, enhancing safety and alerting capabilities. The device is suitable for standard door heights of 7' (2134 mm) and can accommodate extensions for taller doors. Installation is made easy with included fasteners for wood and metal doors, and optional SNB for added security. The device's finishes include durable powder-coated aluminum, ensuring it withstands the rigors of daily use. With multiple mechanical and electrified options, the Von Duprin 2227DT-F-689-36 ALK KIT is an ideal choice for professionals seeking a reliable exit solution that prioritizes safety and functionality.

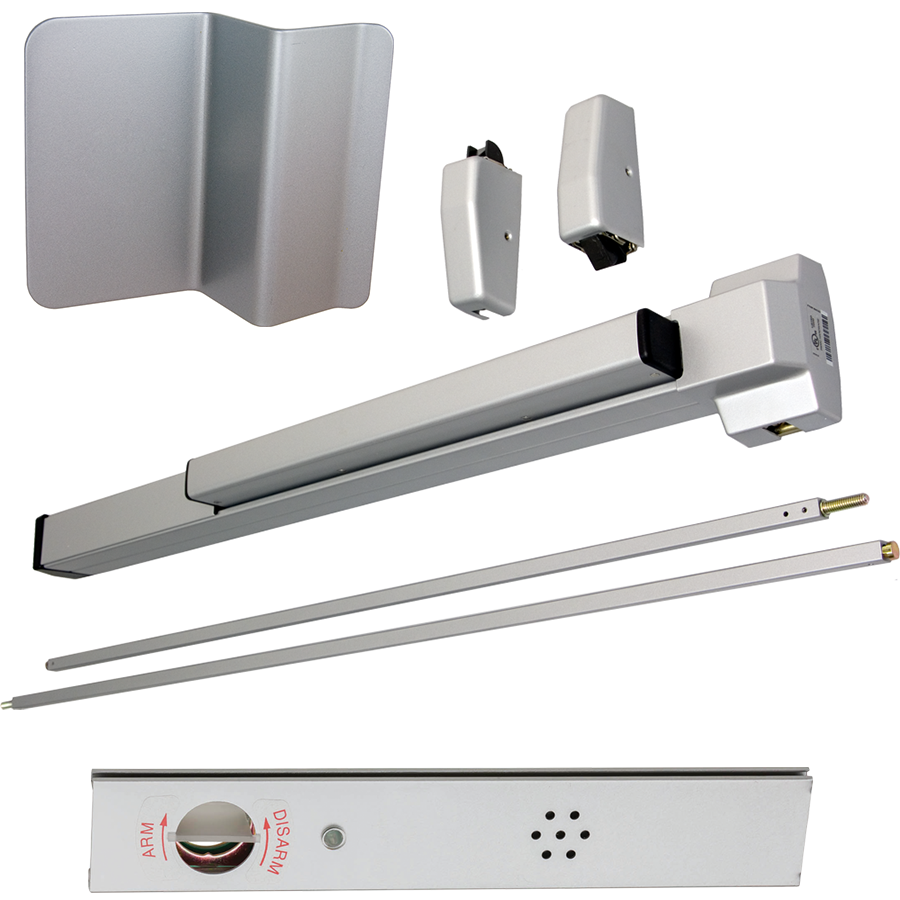

KIT - Alarmed Fire Rated SVR Surface Vertical Rod Exit Device, 210DT Offset Pull Dummy Trim, 36in x 84in, Grade 1, 689/SP28 Powder-Coated Aluminum

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Door Height: 7' (2134 mm) standard door height. Note: 3' extension rods available for door heights up to 10' (3048 mm).
• Device Centerline From Finished Floor: 39 13⁄16" (1011 mm)
• Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: Hex key dogging standard
• Dogging Options: LD: less dogging, QEL option available
• Strikes:
• Top: 299 – Dull black
• Bottom: 248L4 and 304L – Unfinished

Minimum Door Opening for 3' Device:

• 25.875" (657 mm):
• Stop height: 1⁄2"
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000" (664 mm):
• Stop height: 5⁄8"
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze
