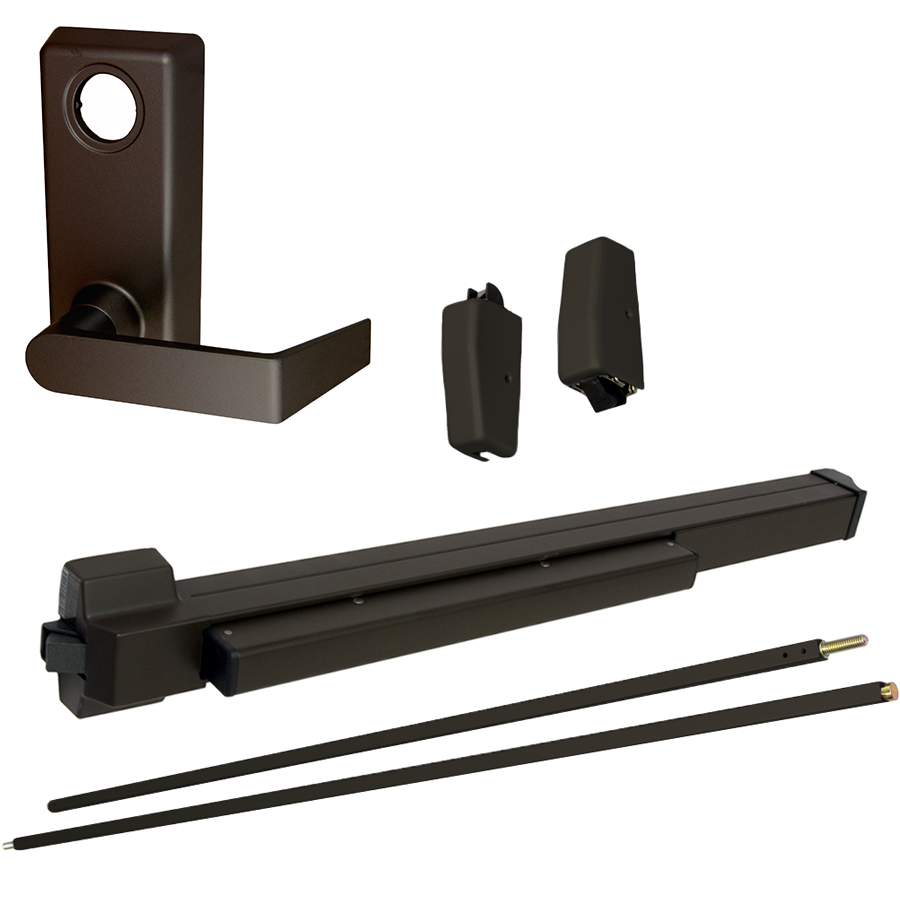

Von Duprin 2227L-695-36 RHR SVR Surface Vertical Rod Exit Device, 230L Lever Trim, RHR, Grade 1, Dark BronzeVon Duprin 2227L-695-36 RHR KIT is a robust surface vertical rod exit device designed for both single and double doors, ensuring safety and compliance with UL panic exit hardware standards. This Grade 1 device features a 36-inch width, accommodating standard doors up to 7 feet tall, with optional extension rods for taller installations. The non-handed design allows for easy installation on various door styles, making it versatile for any building project. Highlighted by its durable powder-coated dark bronze finish, the Von Duprin 2227L is equipped with hex key dogging for secure locking and offers a variety of trim options, including the 230L lever trim. The deadlocking anti-friction latch bolts provide reliable security with a 5/8-inch throw, ensuring that doors remain securely shut when needed. Installation is simplified with included fasteners suitable for 1 3/4-inch and 2 1/4-inch wood and metal doors. The device functions are ready for various configurations, shipped to accommodate exit-only, dummy trim, and night latch functions, among others. With multiple electrified options available, including alarm exit kits and monitoring switches, this exit device is a dependable choice for enhancing safety in commercial environments.
KIT - SVR Surface Vertical Rod Exit Device, 230L Lever Trim, RHR Right Hand Reverse/Reversible Handing, 36in x 84in, Hex Dogging, Grade 1, 695/SP313 Powder-Coated Dark Bronze
Notice: The info below is not item specific.

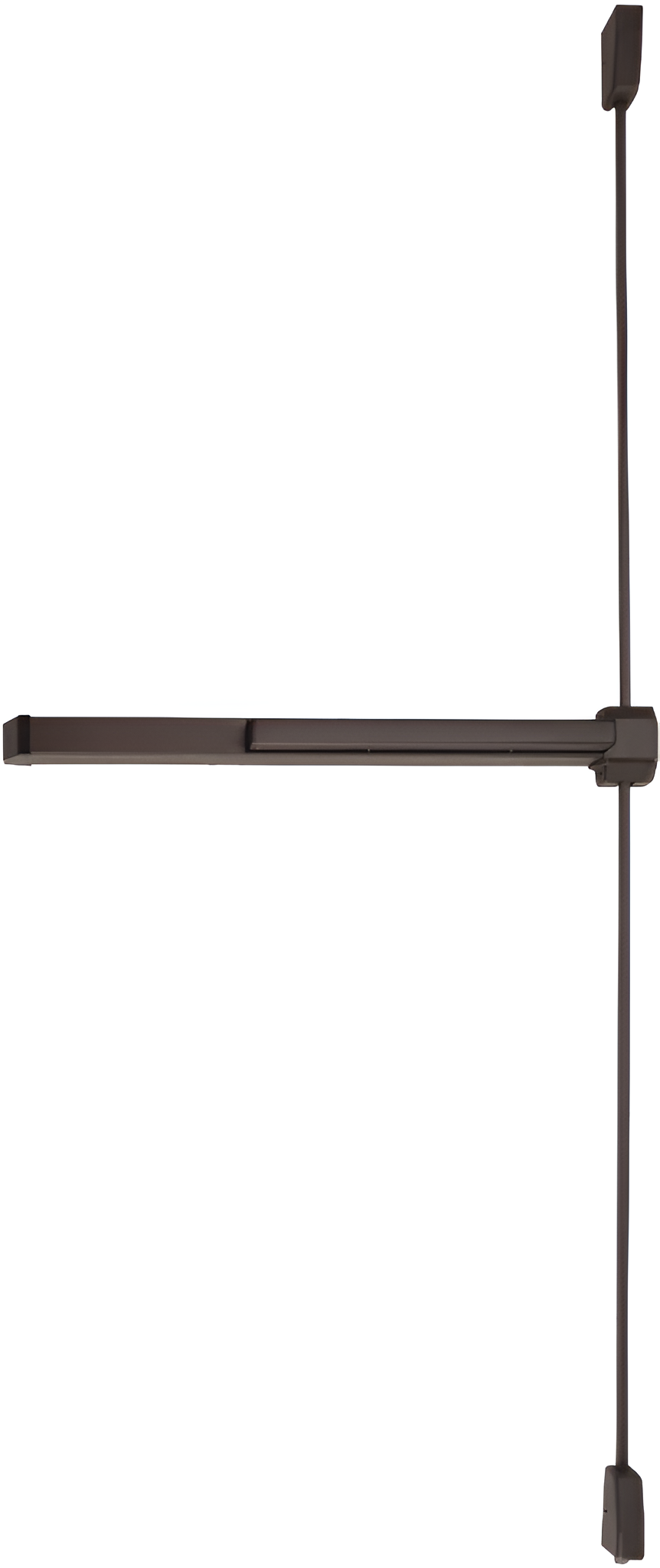

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.
Features:
- Available for rim and surface-mounted vertical applications
- Several trim and electronic options
- Non-handed design
Specifications:
- Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device Lengths:
- 3' (914 mm) see minimum door opening chart in cut sheet
- 4' (1219 mm) see minimum door opening chart in cut sheet
- Door Height: 7' (2134 mm) standard door height. Note: 3' extension rods available for door heights up to 10' (3048 mm).
- Device Centerline From Finished Floor: 39 13⁄16" (1011 mm)
- Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
- Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
- Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw
- Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
- Electrified Options:
- ALK: Alarm exit kit
- CON: Allegion Connect
- LX: Latch bolt monitor switch
- LX-LC: Latch bolt monitoring, low current
- LX-RX: Latch bolt monitoring, request to exit
- LX-RX-LC: Latch bolt monitoring, request to exit low current
- QEL: Quiet electric latch retraction
- RX: Request to exit
- RX2: Double request to exit
- WP-RX: Waterproof request to exit
- Mechanical options:
- GBK: Glass bead kit
- HW: Hurricane device — Wind-Only
- PL: Pullman latch
- LBR: Less bottom rod
- AX: Accessible device, LBR only
- Dogging Feature: Hex key dogging standard
- Dogging Options: LD: less dogging, QEL option available
- Strikes:
- Top: 299 – Dull black
- Bottom: 248L4 and 304L – Unfinished
Minimum Door Opening for 3' Device:
- 25.875" (657 mm):
- Stop height: 1⁄2"
- Single door: Yes
- Double door: Vert. x Vert.
- 26.000" (664 mm):
- Stop height: 5⁄8"
- Single door: Yes
- Double door: Vert. x Vert.
Standard Trim:
- EO: No outside trim
- DT: Dummy Trim
- Trim description: 210DT
- Pull when dogged (not recommended for fire device)
- Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
- Projection: 1-31/32" (42 mm)
- ANSI: 02
- NL: Night latch
- Trim description: 210NL
- Key retracts latchbolt
- Rim and 1-1/4" mortise cylinder
- Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
- Projection: 1-31/32" (42 mm)
- ANSI: 03
- NL-OP: Night latch
- Trim description: 110NL-MD, 110NL-WD
- Key retracts latchbolt, pull required
- ANSI: 03
- Cylinder Type: Rim
- TP: Thumbpiece
- Trim description: 230TP
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
- Pull Center to Center: 5-1/2" (140 mm)
- Projection: 2" (51 mm)
- ANSI: 05
- K: Knob
- Trim description: 2227K
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
- Projection: 2-15/16" (75 mm)
- ANSI Function: 08
- L: Lever
- Trim description: 2227L
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
- Projection: 2-5/8" (67 mm)
- ANSI Function: 08
Finishes:
- 526 - Powder coated chrome
- 622 - Powder coated matte black
- 689 - Powder coated aluminum
- 695 - Powder coated dark bronze
Attributes
Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 36"
Dogging: HD - Hex Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 695
Finish Color: Dark Bronze, Sprayed Duranotic
Function: Classroom, Lever
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Series: 22
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Standard, Vertical Rod Bottom Strike, Vertical Rod Top Strike
