Von Duprin 2227NL 3 689 Grade 1 SVR Exit Bar - Model SP28

Von Duprin 2227NL 3 689 Grade 1 SVR Exit Bar SP28 offers a reliable and robust solution for emergency egress with its Grade 1 surface vertical rod design. This 36" exit device is tailored to fit standard 84" doors, ensuring maximum accessibility while maintaining compliance with UL standards for panic exit hardware. The device features a night latch function and is equipped with a convenient wing/finger pull, facilitating quick exit during emergencies. Designed for versatility, the 2227NL is suitable for both single and double doors, and can accommodate door stiles as narrow as 3 5/8 inches. Its non-handed construction allows for easy installation on various door configurations, while the aluminum painted finish adds an aesthetic touch to any entryway. The hex key dogging feature enhances security and convenience, enabling users to secure the push bar in an open position. With ANSI A156.3 certification and a durable construction, this exit device is perfect for commercial settings requiring high-performance security solutions. Additionally, it includes options for electric monitoring and various mechanical enhancements, ensuring adaptability to your specific access control needs. Choose the Von Duprin 2227NL for a dependable and stylish addition to your building's safety measures.

Grade 1 SVR Exit Bar SP28

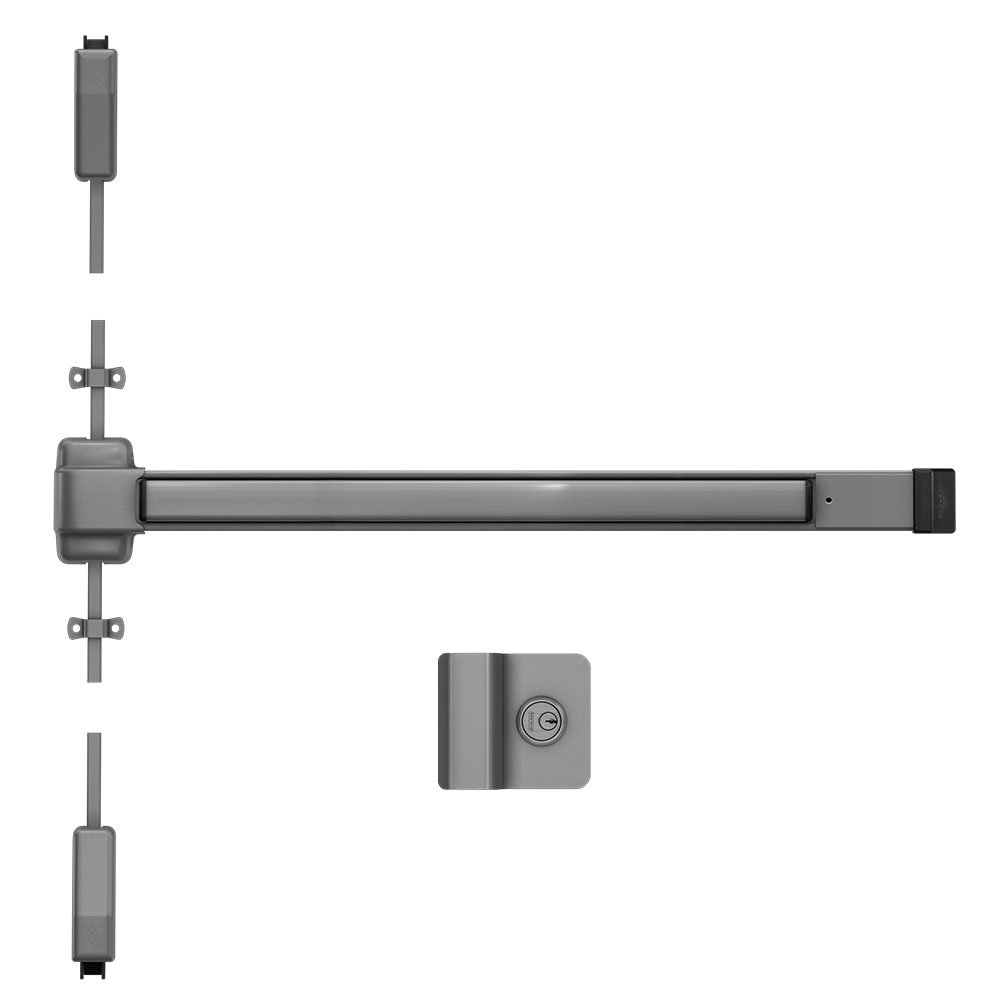

Grade 1 Surface Vertical Rod Exit Bar, 36" Device, Fits 84" Door, Night Latch Function, Wing/Finger Pull, Hex Key Dogging, Aluminum Painted Finish, Field Reversible

2227 Surface mounted vertical rod exit device for all types of single and double doors. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

UL listed for Panic Exit Hardware.

 Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3' (914 mm), 4' (1219 mm)
• Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
• Device centerline from finished floor: 39 13/16" (1011 mm)
• Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
• Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
• Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
• Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
• Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished

Resources

• 2227 & 2227-F K, L, & TP Series Wood Door Template
• 2227 Series Vertical Rod Exit Device Service Manual
• 2227 Surface Vertical Rod Exit Device Service Manual
• EL for Exit Devices Data Sheet
• Von Duprin 22 ALK Alarm Kit Installation Instructions
• Von Duprin 2227 Surface Vertical Rod Device Installation Instructions
• Von Duprin Finishes Chart
