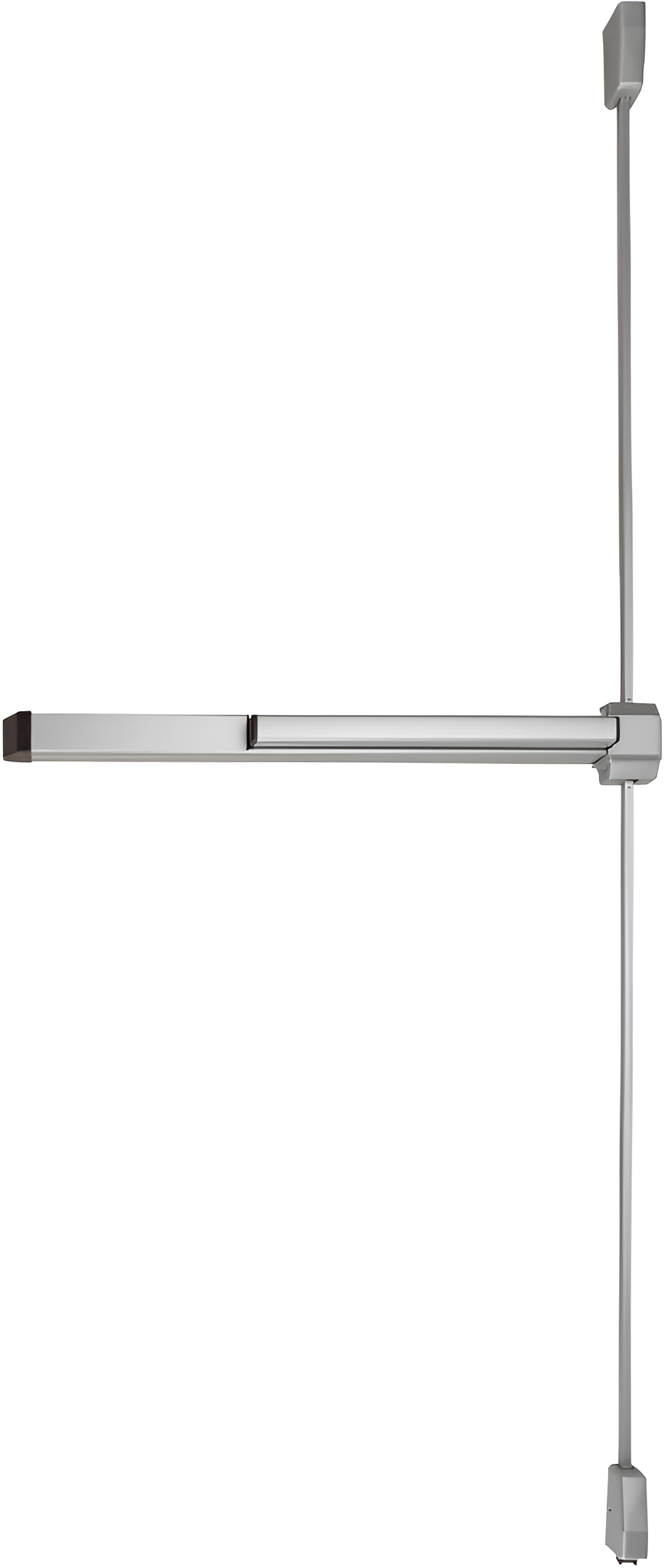

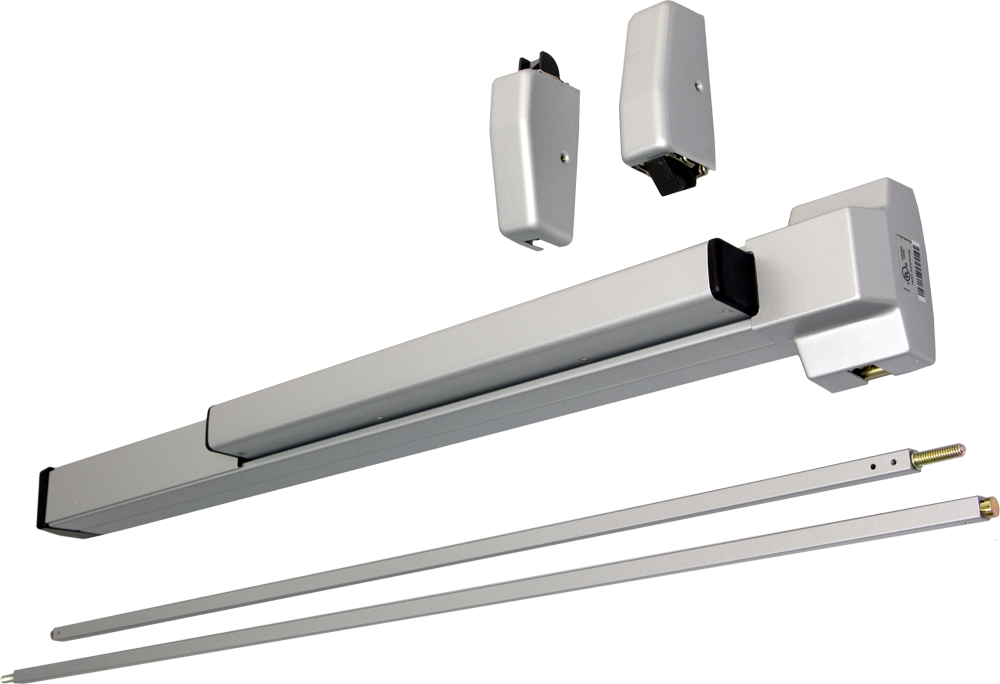

Von Duprin 2227NL-689-36 ALK Alarmed SVR Vertical Rod Exit Device 210NL Nightlatch Trim, Grade 1

Von Duprin 2227NL-689-36 ALK KIT is an advanced alarmed surface vertical rod exit device designed to enhance security for all types of single and double doors. This Grade 1 device is UL listed for panic exit hardware, ensuring safety and reliability in emergency situations. With a non-handed design, it fits door stiles as narrow as 3 5/8" and is ready for multiple functions including exit-only and night latch. Constructed from durable powder-coated aluminum, the 2227NL-689-36 features anti-friction deadlocking latch bolts with a 5/8" throw, providing robust protection against unauthorized entry. The device accommodates standard door heights of 7' and includes extension rods for taller doors up to 10'. Its user-friendly installation process is supported by a comprehensive screw pack suitable for both wood and metal doors. The integrated alarm exit kit enhances safety by alerting to unauthorized egress, while the hex key dogging feature allows for convenient operation. Available in a sleek aluminum finish, this exit device combines functionality with aesthetic appeal, making it ideal for commercial and residential applications alike. Upgrade your security with the reliability and innovation of Von Duprin.

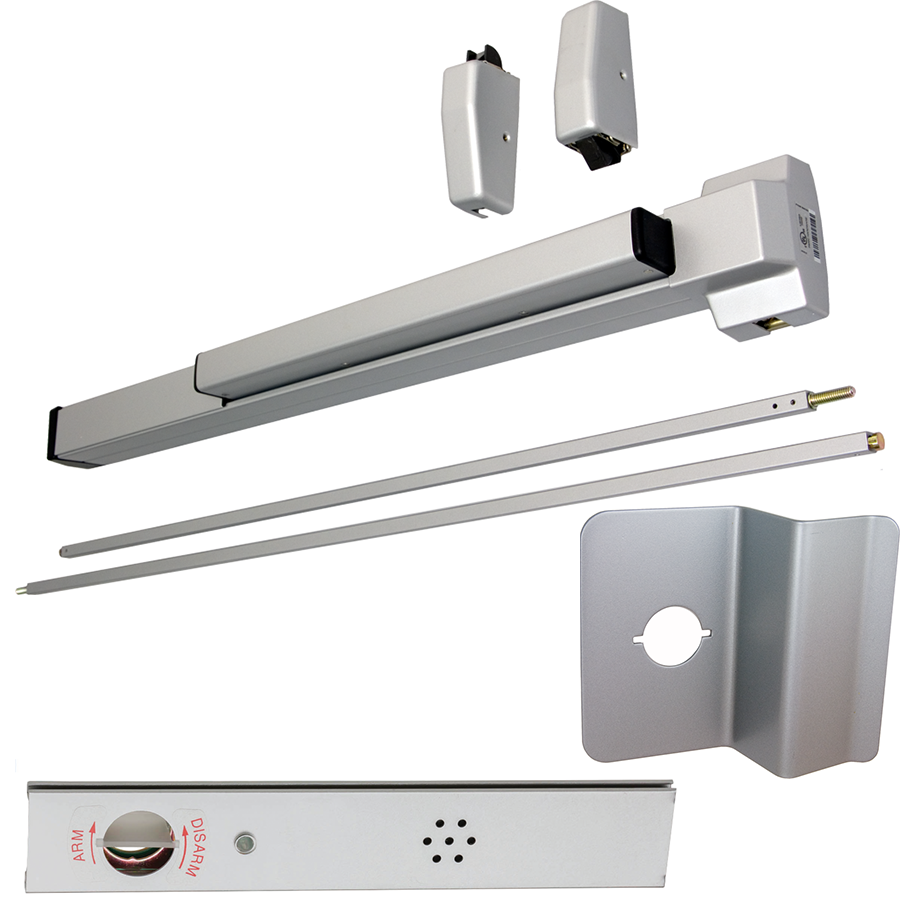

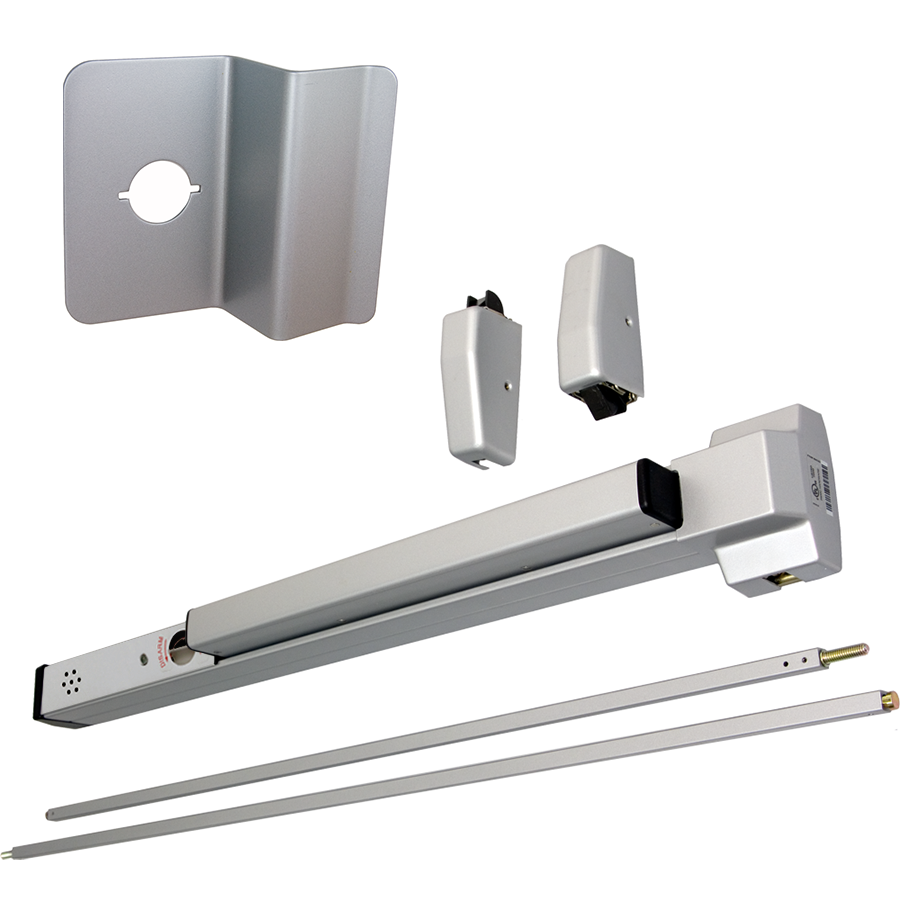

KIT - Alarmed SVR Surface Vertical Rod Exit Device, 210NL Nightlatch Trim, 36in x 84in, Grade 1, 689/SP28 Powder-Coated Aluminum

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Door Height: 7' (2134 mm) standard door height. Note: 3' extension rods available for door heights up to 10' (3048 mm).
• Device Centerline From Finished Floor: 39 13⁄16" (1011 mm)
• Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: Hex key dogging standard
• Dogging Options: LD: less dogging, QEL option available
• Strikes:
• Top: 299 – Dull black
• Bottom: 248L4 and 304L – Unfinished

Minimum Door Opening for 3' Device:

• 25.875" (657 mm):
• Stop height: 1⁄2"
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000" (664 mm):
• Stop height: 5⁄8"
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32&ot; (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze

Resources

• Cut Sheet
