Von Duprin 2227NL-695-36 SVR Surface Vertical Rod Exit Device with 210NL Nightlatch Trim, Dark Bronze

Von Duprin 2227NL-695-36 KIT is a robust surface vertical rod exit device designed for exceptional security and ease of use in panic exit scenarios. This UL-listed device is crafted for both single and double doors, meeting ANSI A156.3 – 2008 Grade 1 standards for reliability and performance. It accommodates stock hollow metal doors with 86 or 161 cutouts and fits door stiles as narrow as 3 5/8 inches. The non-handed design ensures versatile installation for any application. Equipped with a 210NL night latch trim, the exit device features hex key dogging as standard, providing added convenience. The latch bolt incorporates a deadlocking anti-friction mechanism with a 5/8-inch throw, enhancing security. The device's dimensions, including a centerline height of 39 13/16 inches from the finished floor, make it suitable for standard doors up to 7 feet tall, with extension rods available for taller installations. Available in a stylish powder-coated dark bronze finish, the Von Duprin 2227NL-695-36 KIT is designed to blend seamlessly with various architectural styles. Its compatibility with a range of trim and electronic options allows for customizable security solutions, making it an ideal choice for professionals seeking reliable panic hardware for commercial spaces.

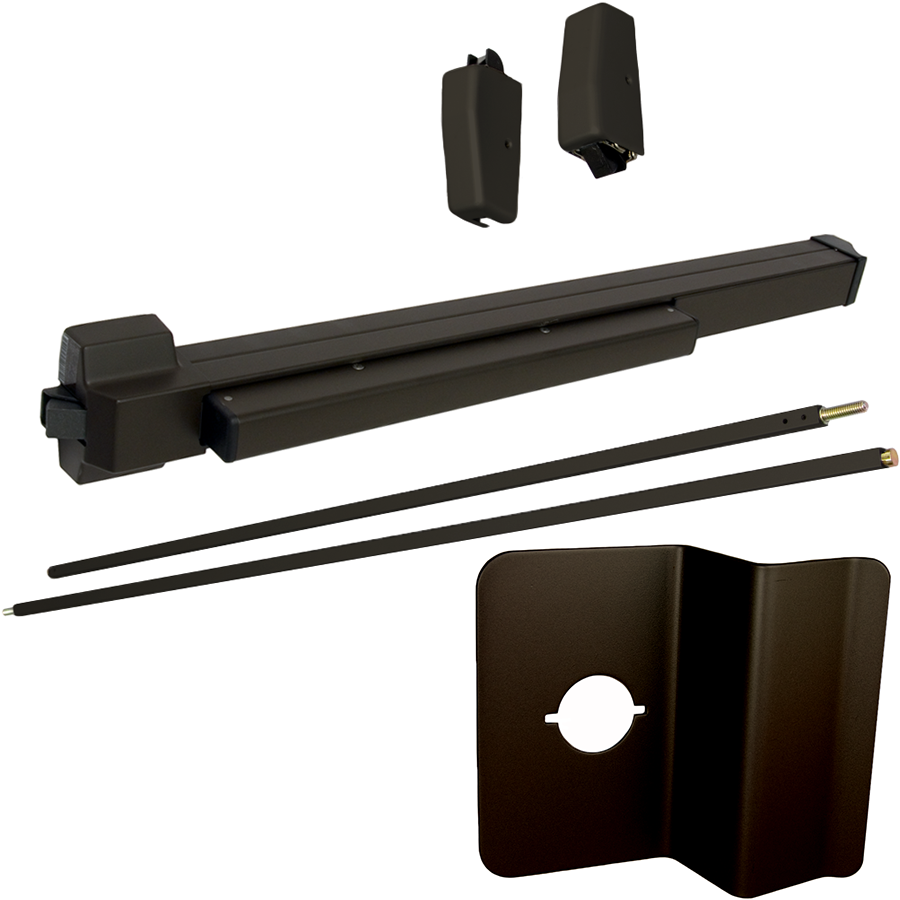

KIT - SVR Surface Vertical Rod Exit Device, 210NL Nightlatch Trim, 36in x 84in, Hex Dogging, Grade 1, 695/SP313 Powder-Coated Dark Bronze

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Door Height: 7' (2134 mm) standard door height. Note: 3' extension rods available for door heights up to 10' (3048 mm).
• Device Centerline From Finished Floor: 39 13⁄16" (1011 mm)
• Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: Hex key dogging standard
• Dogging Options: LD: less dogging, QEL option available
• Strikes:
• Top: 299 – Dull black
• Bottom: 248L4 and 304L – Unfinished

Minimum Door Opening for 3' Device:

• 25.875" (657 mm):
• Stop height: 1⁄2"
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000" (664 mm):
• Stop height: 5⁄8"
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze

Resources

• Cut Sheet
