Von Duprin 2227NL-OP-689-36 ALK Alarmed SVR Surface Vertical Rod Exit Device Nightlatch Cylinder Assembly

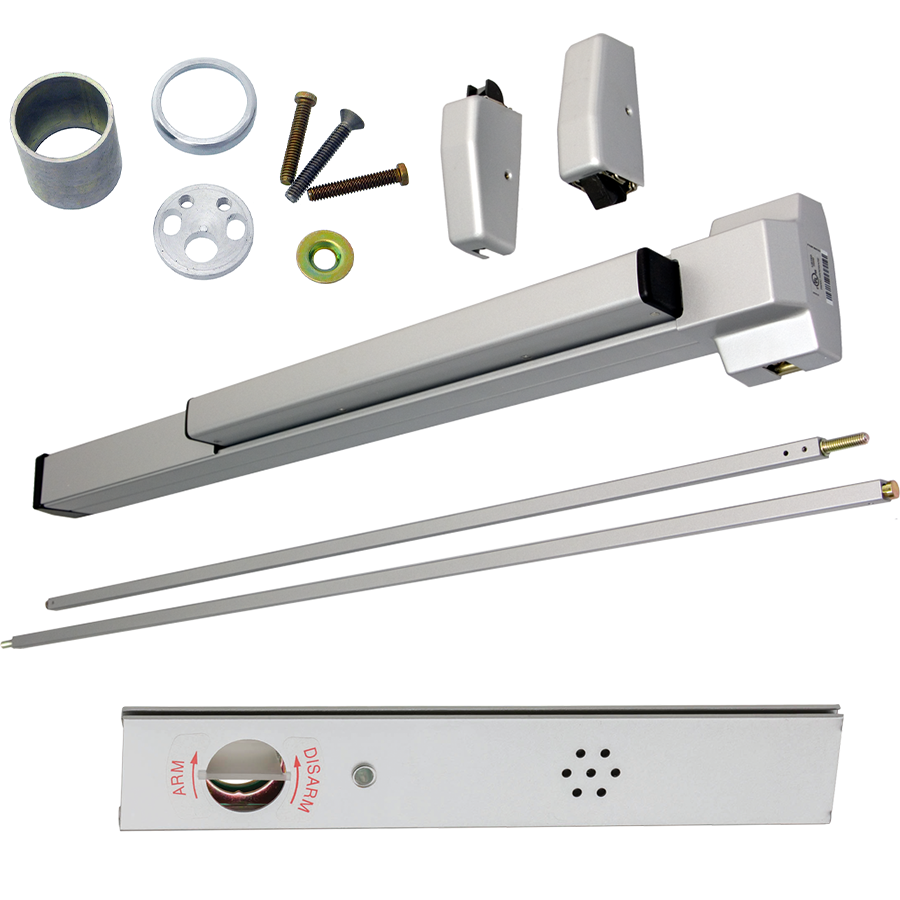

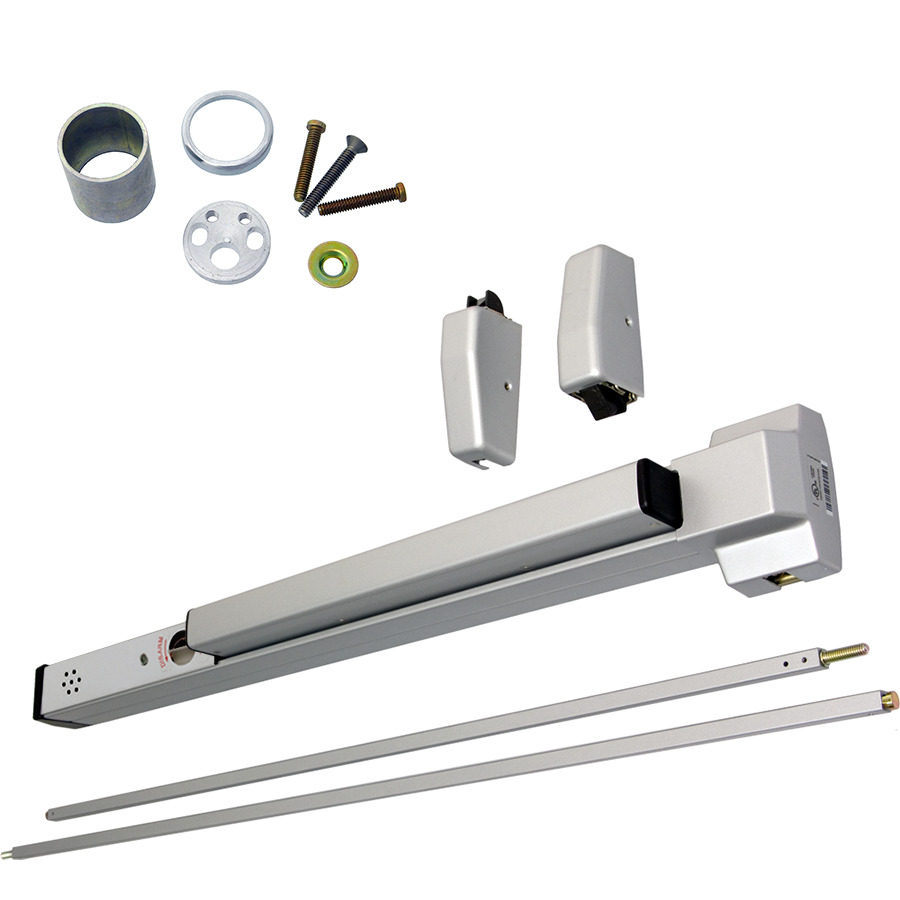

Von Duprin 2227NL-OP-689-36 ALK KIT is an alarmed surface vertical rod exit device designed for security and ease of use in both single and double door applications. This Grade 1 device is UL listed for panic exit hardware, ensuring reliability in emergency situations. It fits standard hollow metal doors with 86 or 161 cutouts and accommodates door stiles as narrow as 3 5/8" (92 mm), making it a versatile choice for various installations. The 2227NL-OP model features a non-handed design, allowing for flexibility in installation. Its deadlocking anti-friction latch bolt provides enhanced security with a 5/8" (16 mm) throw. With a standard height of 7' (2134 mm), extension rods are available for taller doors, accommodating heights up to 10' (3048 mm). The device ships ready for multiple functions, including exit only, deadlocking, and night latch options. Additionally, the ALK alarm exit kit adds an extra layer of security, alerting users to unauthorized exits. This exit device comes in a sleek powder-coated aluminum finish, ensuring durability and aesthetic appeal. With features like hex key dogging and optional electrified options, including request-to-exit functionality, the Von Duprin 2227NL-OP-689-36 ALK KIT is a top-tier choice for safety and convenience in commercial environments.

KIT - Alarmed SVR Surface Vertical Rod Exit Device, 110MD NL-OP Nightlatch Cylinder Assembly, 36in x 84in, Grade 1, 689/SP28 Powder-Coated Aluminum

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Door Height: 7' (2134 mm) standard door height. Note: 3' extension rods available for door heights up to 10' (3048 mm).
• Device Centerline From Finished Floor: 39 13⁄16" (1011 mm)
• Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: Hex key dogging standard
• Dogging Options: LD: less dogging, QEL option available
• Strikes:
• Top: 299 – Dull black
• Bottom: 248L4 and 304L – Unfinished

Minimum Door Opening for 3' Device:

• 25.875" (657 mm):
• Stop height: 1⁄2"
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000" (664 mm):
• Stop height: 5⁄8"
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze

Resources

• Cut Sheet
