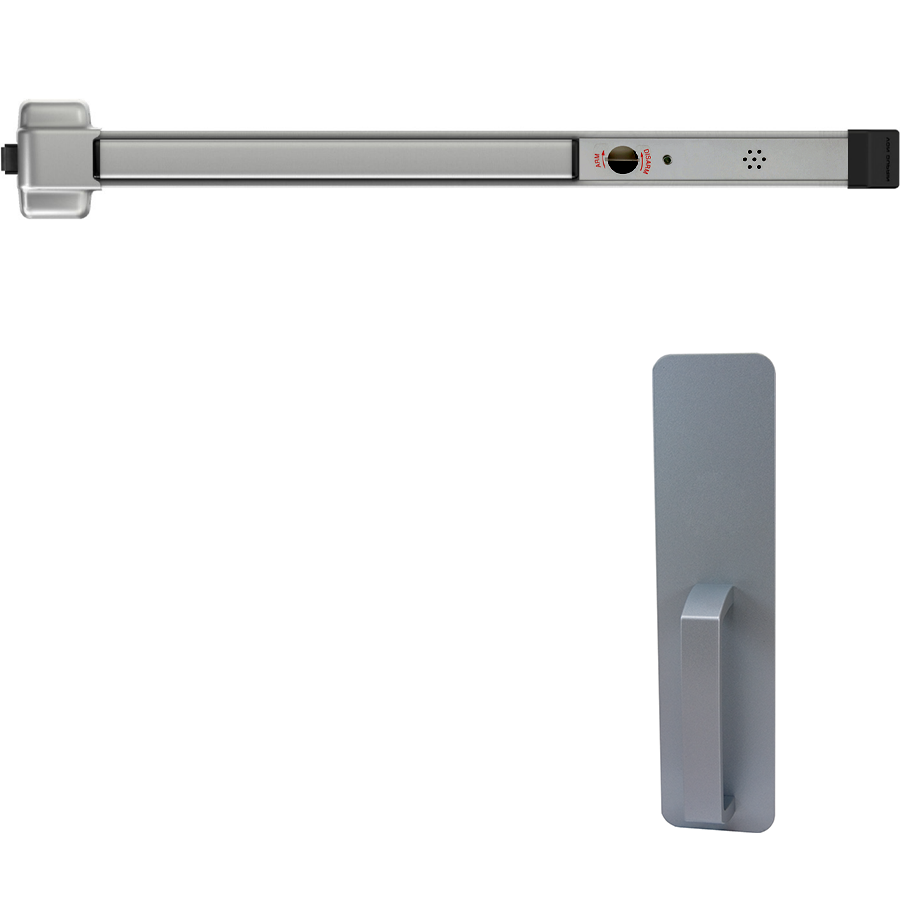

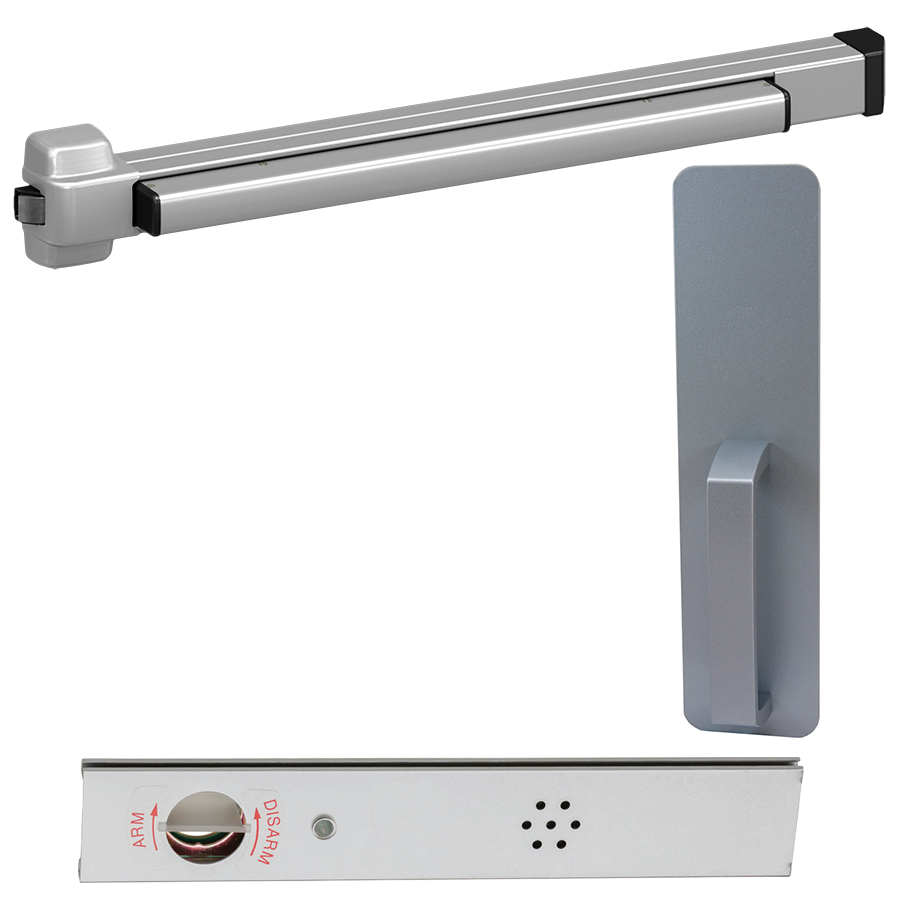

Von Duprin 22DT-230-689-48 ALK Alarmed Rim Exit Device Kit, 230DT Offset Pull Dummy Trim, Grade 1, Aluminum

Von Duprin 22DT-230-689-48 ALK KIT is an advanced alarmed rim exit device designed for both single and double doors with mullions. This high-quality device meets UL standards for panic exit hardware and boasts a Grade 1 rating in accordance with ANSI A156.3, 2014. With its non-handed design, the 22DT easily accommodates door stiles as narrow as 3 13/16 inches (97 mm), making it versatile for various applications. The alarm exit kit features a deadlocking latch bolt with a 3/4-inch (19 mm) throw, ensuring enhanced security. It is suitable for both rim and surface-mounted vertical applications and ships ready for multiple functions, including exit only and dummy trim. The device dimensions allow for a centerline height of 39-13/16 inches (1011 mm) from the finished floor and includes a comprehensive screw pack for easy installation on 1 3/4-inch (44 mm) and 2 1/4-inch (57 mm) doors. Available in a stylish powder-coated aluminum finish, the 22DT-230-689-48 ALK KIT combines functionality and aesthetics, making it an ideal choice for building professionals and discerning homeowners who prioritize safety and design. Whether you require access control or emergency egress, this exit device delivers reliable performance and peace of mind.

KIT - Alarmed Rim Exit Device, 230DT Offset Pull Dummy Trim, 48in x 84in, Grade 1, 689/SP28 Powder-Coated Aluminum

22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3 13⁄16" (97 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Device Centerline From Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking, 3/4" (19 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Notes:
• Black end caps are standard for all finishes, with the exception of 526.
• Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
• All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
• Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• AX: Accessible device
• GBK: Glass bead kit
• HW: Hurricane device - Wind-Only
• Dogging feature: Hex key dogging standard
• Dogging options: LD: less dogging, QEL option available
• Strikes: 299 - dull black

Minimum Door Opening for 3' Device:

• For 4' device, add 6" (152 mm)
• 26.500" (673 mm):
• Stop height: 1⁄2"
• Strike: 299
• Single door: Yes
• 25.687" (652 mm):
• Stop height: 1⁄2"
• Strike: 1439
• Single door: Yes
• 27.000" (686 mm):
• Stop height: 1⁄2"
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 25.812" (656 mm):
• Stop height: 1⁄2"
• Strike: 299
• Double door w/mullion: 5654
• 25.750" (679 mm):
• Stop height: 1⁄2"
• Strike: 1408
• Double door w/mullion: 5754
• 26.562" (675 mm):
• Stop height: 1⁄2"
• Strike: 1606
• Double door w/mullion: 1654
• 26.750" (679 mm):
• Stop height: 1⁄2"
• Strike: 299
• Single door: Yes
• 25.937" (659 mm):
• Stop height: 5⁄8"
• Strike: 1439
• Single door: Yes
• 27.125" (689 mm):
• Stop height: 5⁄8"
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 26.687" (678 mm):
• Stop height: 5⁄8"
• Strike: 299
• Double door w/mullion: 5654
• 25.875" (657 mm):
• Stop height: 5⁄8"
• Strike: 1408
• Double door w/mullion: 5754
• 26.687" (678 mm):
• Stop height: 5⁄8"
• Strike: 1606
• Double door w/mullion: 1654

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze
