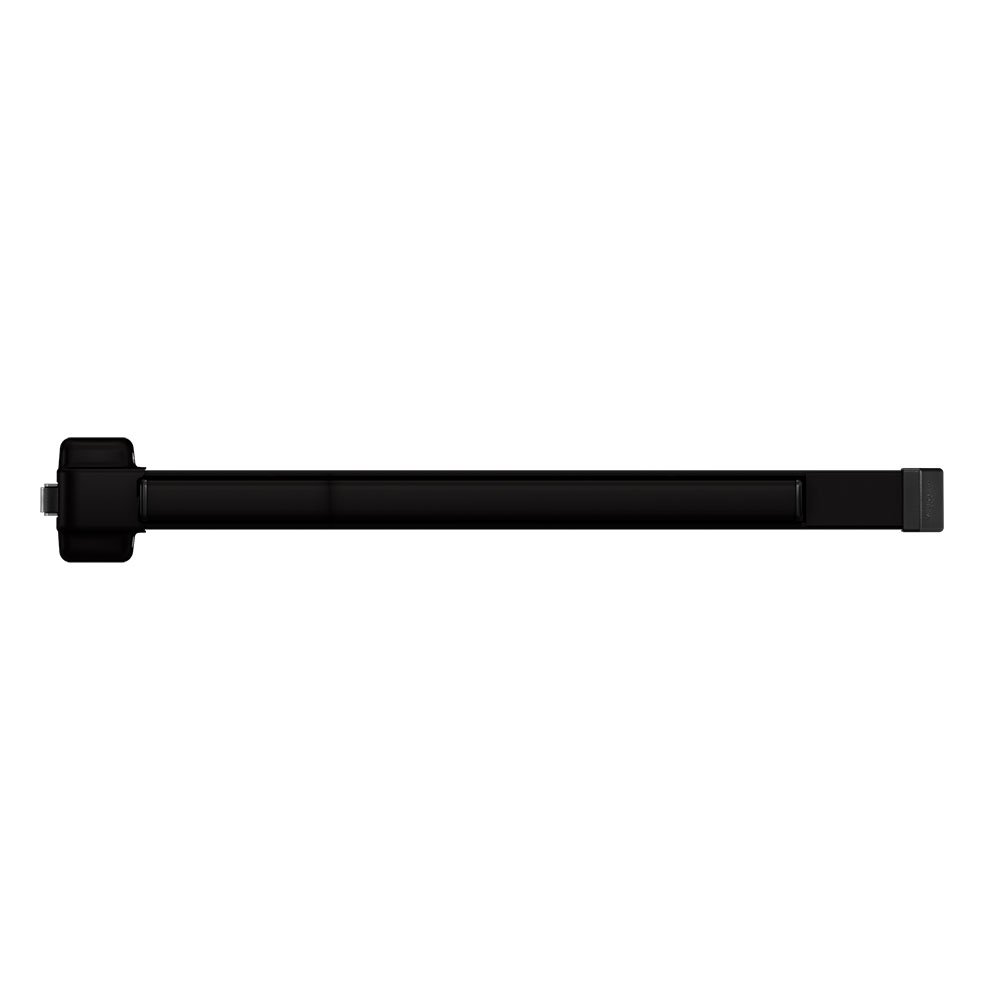

Von Duprin 22EO-F 3 695 Grade 1 Rim Exit Bar SP313

Von Duprin 22EO-F 3 695 Grade 1 Rim Exit Bar SP313 offers reliable emergency egress with its Grade 1 fire-rated construction. Designed for both single and double doors, this exit device features a wide stile pushpad that measures a convenient 36 inches, ensuring quick access in emergency situations. The device is UL listed for panic exit hardware and complies with ANSI A156.3, 2008 Grade 1 standards, providing peace of mind for commercial applications. Installation is straightforward, as the 22EO-F is non-handed and fits door stiles as narrow as 3 13/16 inches. The deadlocking latch bolt boasts a ¾-inch throw, enhancing security while the device is adaptable to various trims, allowing for customization to suit specific needs. The dark bronze painted finish adds an aesthetic touch that blends seamlessly with diverse architectural styles. Additional features include hex key dogging as standard, optional electric functions for enhanced monitoring, and compatibility with both metal and wood doors. This exit device is robust and durable, making it ideal for high-traffic commercial environments. With a limited three-year warranty and made in the USA, the Von Duprin 22EO-F 3 695 Rim Exit Bar stands as a reliable choice for ensuring safe and efficient exits in any building.

Grade 1 Rim Exit Bar SP313

Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, 36", Exit Only, Accepts Various Trim, Less Trim, Less Dogging, Dark Bronze Painted Finish, Non-Handed

22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.

Rim exit device for all types of single and double doors with mullion.

Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3' (914 mm), 4' (1219 mm)
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
• Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
• Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
• Latch bolt: Deadlocking, 3 /4" (19 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: GBK glass bead kit AX accessible device
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black
