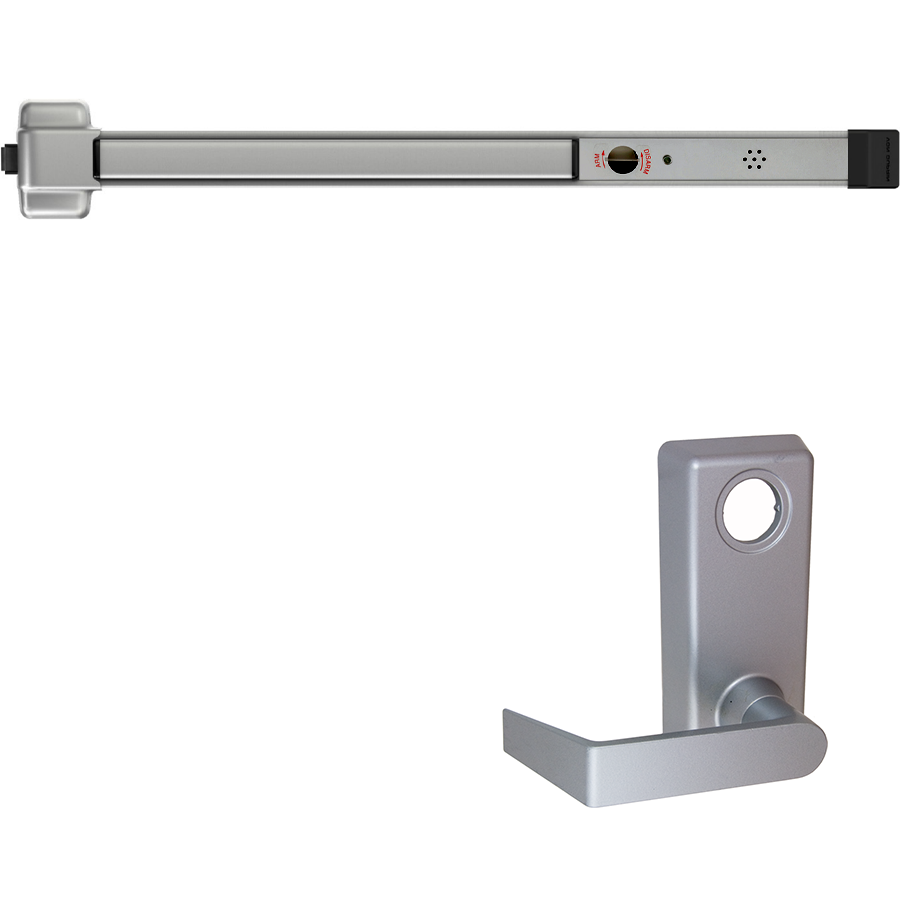

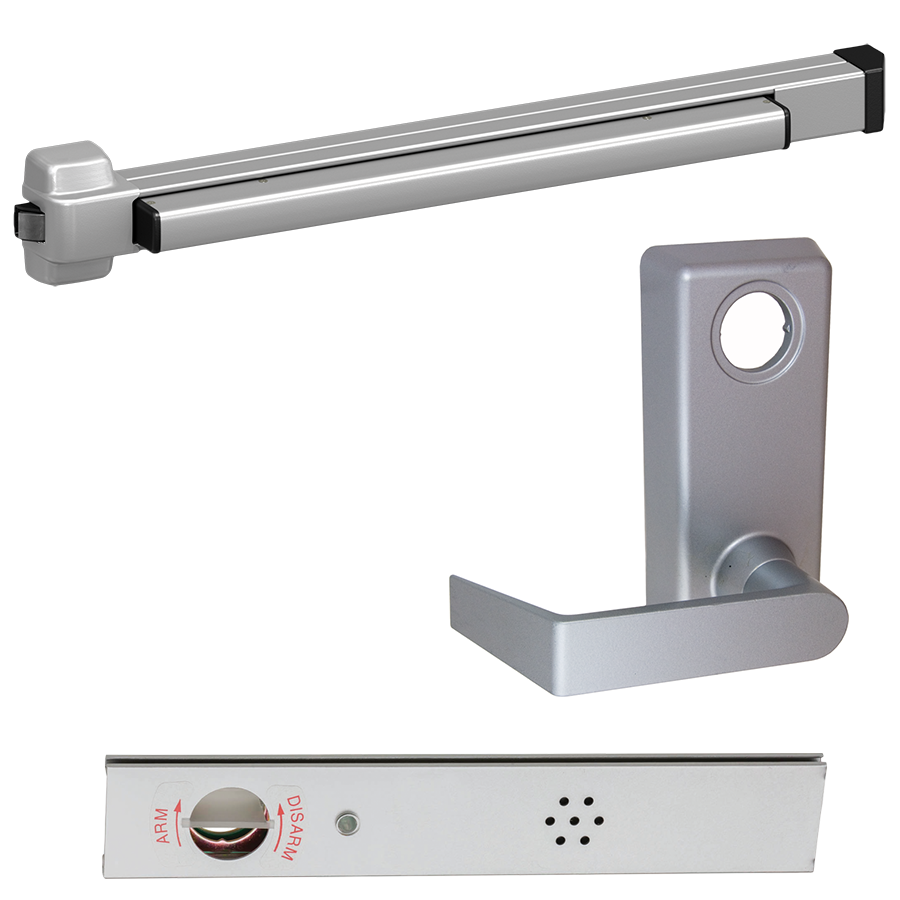

Von Duprin 22L-689-48 LHR ALK Alarmed Rim Exit Device, 230L Lever Trim, LHR, 48in, Grade 1, Aluminum

Von Duprin 22L-689-48 LHR ALK KIT is an advanced alarmed rim exit device designed to enhance security for both single and double doors with mullions. This Grade 1 rated device meets ANSI A156.3 standards, ensuring reliable performance under high-traffic conditions. Crafted from durable powder-coated aluminum, it offers impressive longevity and resistance to wear. This non-handed device can be installed on door stiles as narrow as 3 13⁄16" (97 mm) and features a deadlocking latch bolt with a 3/4" throw for optimal security. The versatile design allows for rim and surface-mounted vertical applications, accommodating various trim options. With a length of 48 inches, it is suitable for a range of door sizes. The 22L-689-48 includes an alarm exit kit (ALK) feature, providing an added layer of security by alerting users to unauthorized exit attempts. It ships ready for multiple functions, making it a versatile choice for diverse building requirements. Additional features include optional electrified options for enhanced control and monitoring. Available finishes include powder-coated aluminum for a sleek, modern look. For building professionals and discerning homeowners, the Von Duprin 22L-689-48 LHR ALK KIT stands as a reliable choice for securing entrances while ensuring ease of egress in emergencies.

KIT - Alarmed Rim Exit Device, 230L Lever Trim, LHR Left Hand Reverse/Reversible Handing, 48in, Grade 1, 689/SP28 Powder-Coated Aluminum

22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3 13⁄16" (97 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3' (914 mm) see minimum door opening chart in cut sheet
• 4' (1219 mm) see minimum door opening chart in cut sheet
• Device Centerline From Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center Case Dimensions: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
• Mechanism Case Dimensions: 2" (51 mm) x 2 3/8" (60 mm)
• Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
• Latch Bolt: Deadlocking, 3/4" (19 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors; optional SNB available for device
• Notes:
• Black end caps are standard for all finishes, with the exception of 526.
• Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
• All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
• Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• AX: Accessible device
• GBK: Glass bead kit
• HW: Hurricane device - Wind-Only
• Dogging feature: Hex key dogging standard
• Dogging options: LD: less dogging, QEL option available
• Strikes: 299 - dull black

Minimum Door Opening for 3' Device:

• For 4' device, add 6" (152 mm)
• 26.500" (673 mm):
• Stop height: 1⁄2"
• Strike: 299
• Single door: Yes
• 25.687" (652 mm):
• Stop height: 1⁄2"
• Strike: 1439
• Single door: Yes
• 27.000" (686 mm):
• Stop height: 1⁄2"
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 25.812" (656 mm):
• Stop height: 1⁄2"
• Strike: 299
• Double door w/mullion: 5654
• 25.750" (679 mm):
• Stop height: 1⁄2"
• Strike: 1408
• Double door w/mullion: 5754
• 26.562" (675 mm):
• Stop height: 1⁄2"
• Strike: 1606
• Double door w/mullion: 1654
• 26.750" (679 mm):
• Stop height: 1⁄2"
• Strike: 299
• Single door: Yes
• 25.937" (659 mm):
• Stop height: 5⁄8"
• Strike: 1439
• Single door: Yes
• 27.125" (689 mm):
• Stop height: 5⁄8"
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 26.687" (678 mm):
• Stop height: 5⁄8"
• Strike: 299
• Double door w/mullion: 5654
• 25.875" (657 mm):
• Stop height: 5⁄8"
• Strike: 1408
• Double door w/mullion: 5754
• 26.687" (678 mm):
• Stop height: 5⁄8"
• Strike: 1606
• Double door w/mullion: 1654

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim description: 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 02
• NL: Night latch
• Trim description: 210NL
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
• Projection: 1-31/32" (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim description: 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim description: 230TP
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2" (140 mm)
• Projection: 2" (51 mm)
• ANSI: 05
• K: Knob
• Trim description: 2227K
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
• Projection: 2-15/16" (75 mm)
• ANSI Function: 08
• L: Lever
• Trim description: 2227L
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
• Projection: 2-5/8" (67 mm)
• ANSI Function: 08

Finishes:

• 526 - Powder coated chrome
• 622 - Powder coated matte black
• 689 - Powder coated aluminum
• 695 - Powder coated dark bronze
