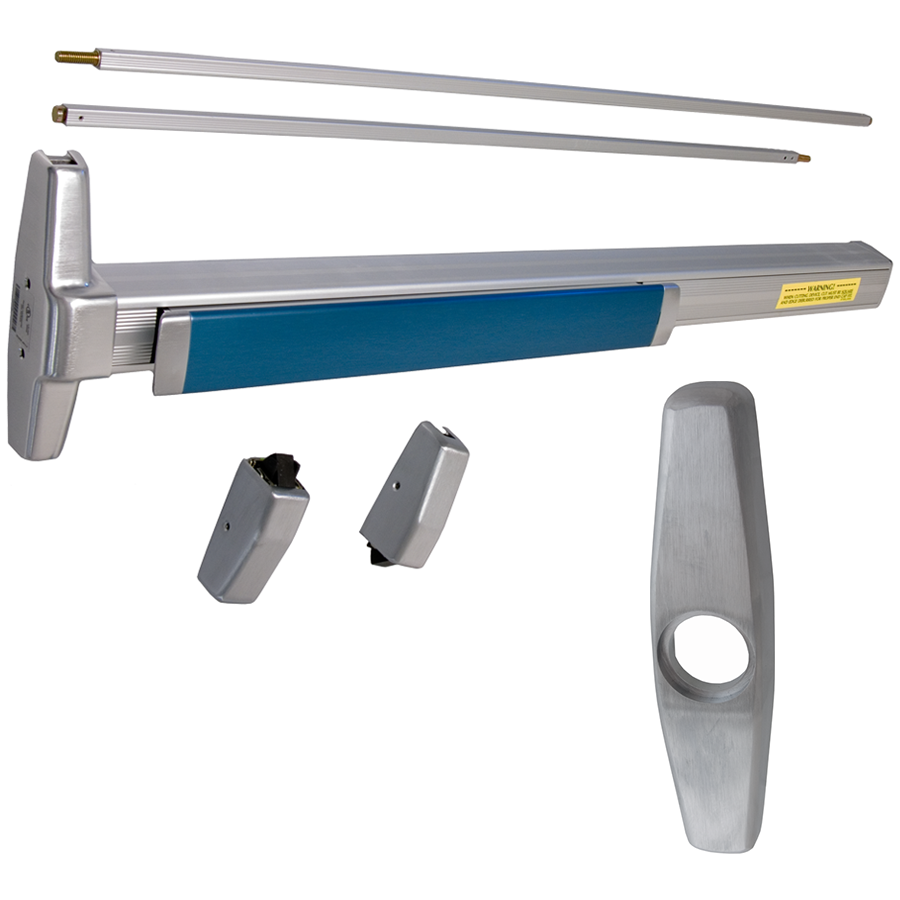

Von Duprin 3327A-NL-OP-626-36 Narrow Stile SVR Vertical Rod Exit Device w/ Nightlatch Trim, Satin Chrome

Von Duprin 3327A-NL-OP-626-36 KIT is a robust and versatile narrow stile surface vertical rod exit device designed for high-traffic environments such as schools, hospitals, and government facilities. With its Grade 1 rating, this device ensures reliability and durability, meeting ANSI A156.3 standards. The 3327A model features a grooved case and offers a modular design, allowing for easy upgrades to adapt to evolving security needs. This exit device fits door stiles as narrow as 1 3/4 inches (44mm) and is available for doors measuring 36 inches in width and up to 84 inches in height. The included NL-OP night latch trim allows for key access to retract the latch bolt, making it user-friendly and secure. Hex dogging enhances the functionality, allowing for easy operation while maintaining security. Designed for easy installation, the device is equipped with sex bolts and is available in a sleek satin chrome finish (626/US26D), providing both aesthetic appeal and long-lasting performance. The 3327A-NL-OP-626-36 KIT is UL listed for panic exit hardware, ensuring compliance with safety regulations while delivering peace of mind for building professionals and homeowners alike.

KIT - Narrow Stile SVR Surface Vertical Rod Exit Device, 388 NL-OP Nightlatch Trim Optional Pull, 36in x 84in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

3327A and 3527A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used. Fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 3' 2'4' to 3' (711mm to 914mm) Door size
• 4' 2'10" to 4' (864mm to 1219mm) Door size
• Device Centerline From Finished Floor: 39 13⁄16" (1011mm), 39 11⁄16" (1008mm) with mullion
• Center Case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral - 3-13/16" (97 mm)
• Push bar depressed - 3-1/16" (78 mm)
• Latch bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and sex bolts (SNB): 1/4" (7mm)
• Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood & metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• ESL: Emergency Secure Lockdown
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic
• QM: Quiet mechanical
• SG: Safety glow
• SEC: Security screws
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 266: Top Dull black, ships standard
• 248L-4: bottom strike unfinished, for use with threshold
• 304L: bottom strike unfinished

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
