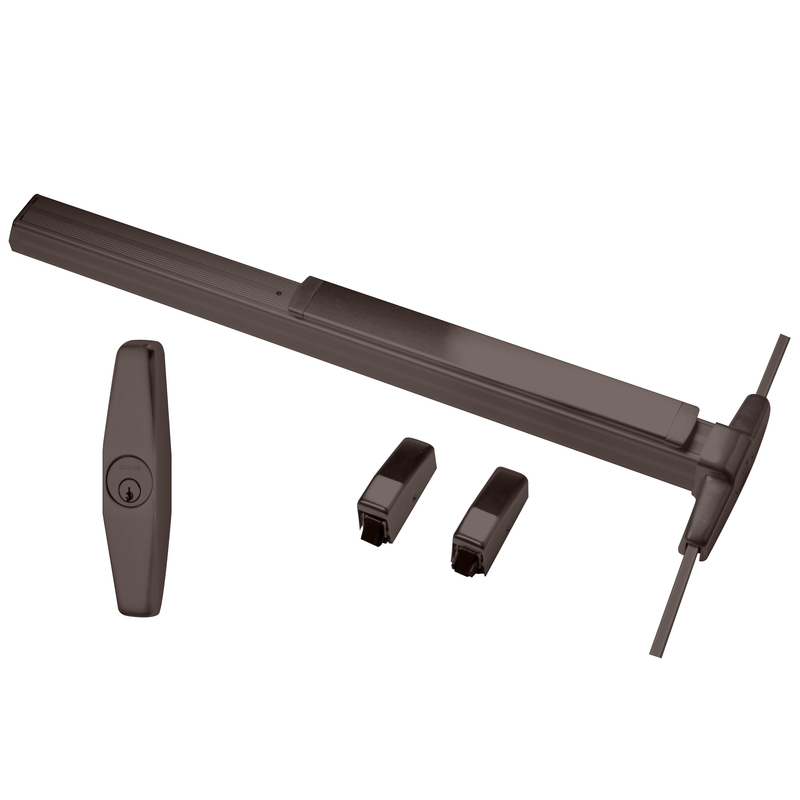

Von Duprin 3327ANL-OP 3 313 Grade 1 Narrow SVR Exit Device 710

Von Duprin 3327ANL-OP 3 313 Grade 1 Narrow SVR Exit 710 is a robust surface vertical rod exit device designed for both single and double doors. This Grade 1 model features a narrow stile pushpad and a night latch mechanism, ensuring reliable performance in commercial settings. The device measures 36 inches in length and is built from durable dark bronze anodized aluminum, providing both strength and aesthetic appeal. With a non-handed design, the 3327ANL-OP is versatile, accommodating various door configurations without the need for additional adjustments. The device is UL listed for panic exit hardware, conforming to ANSI A156.3 - 2008 standards, which guarantees high-quality safety and functionality. The deadlocking anti-friction top and bottom bolts have a 5/8 inch throw, ensuring secure locking. Installation is straightforward, suitable for wood or metal doors with a thickness of 1-3/4 inches and widths ranging from 28 to 36 inches. The hex key dogging feature adds convenience for maintenance, while the sleek mechanism case ensures a clean appearance. The 3327ANL-OP includes a cylinder-only trim design, making it an ideal choice for facilities focused on both security and ease of access. This exit device brings peace of mind while enhancing the overall accessibility of your commercial space.

Grade 1 Narrow SVR Exit 710

Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, 36", Night Latch, No Pull, Cylinder Only, Hex Key Dogging, Dark Bronze Anodized Aluminum Finish, Non-Handed

3327A and 3527A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

Devices are ANSI A156.3 – 2001 Grade 1.

The 3327A has grooved case and the surface vertical rod device is non-handed except when the SS (signal switch) option is used.

• Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
• Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm)
• Top & bottom latch: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: 1 /2" square tubing, standard rods accommodate 7'(2134mm) door Top rod length is 34 15/16" (887mm) Bottom rod length is 31 1/4" (794mm) Extension rods available 1' (205mm) or 3' (914mm) for doors over 7' One piece top rod available for 8' (2438mm) -10' (3048mm) door
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) #325 SNB furnished for top and bottom latches
