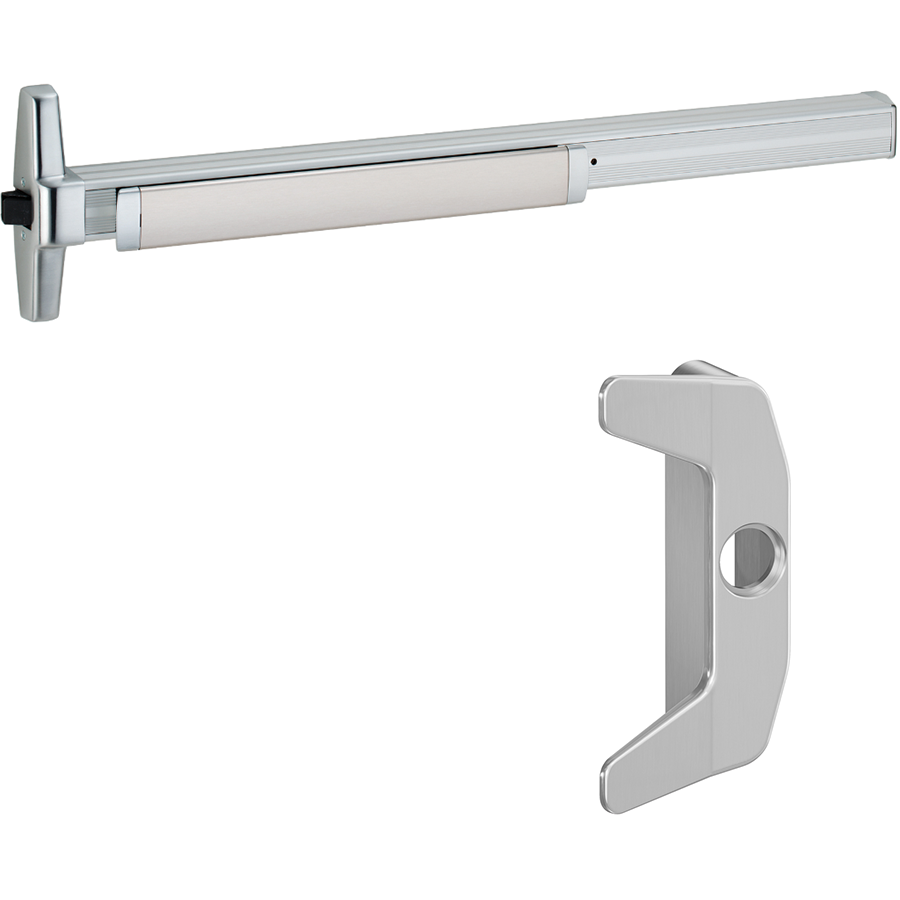

Von Duprin 33A-NL-626-48-RHR Narrow Stile Rim Exit Device w/ 386NL Nightlatch Trim, RHR, 48in, Satin Chrome

Von Duprin 33A-NL-626-48-RHR KIT is a robust narrow stile rim exit device designed for high-traffic institutional environments such as schools, hospitals, and government buildings. This Grade 1 device, featuring a 48-inch length, combines durability with advanced security functionality. The hex dogging feature ensures that the door remains securely in place when needed, while the night latch function allows for easy retraction of the latch bolt with a key, enhancing user convenience. Constructed with a satin chrome finish (626/US26D), the 33A-NL not only meets aesthetic standards but also withstands the demands of daily use. Its modular design supports various upgrades, enabling you to adapt to evolving security needs without replacing the entire unit. With options for mechanical and electronic configurations, including quiet electric latch retraction and request-to-exit capabilities, this device is versatile enough to cater to diverse applications. Installation is straightforward, as it accommodates standard wood and metal doors with included fasteners. The device is certified to ANSI and BHMA standards, ensuring compliance with industry regulations. Choose the Von Duprin 33A-NL-626-48-RHR KIT for a reliable and secure exit solution that protects your facility while enhancing accessibility.

KIT - Narrow Stile Rim Exit Device, 386NL Nightlatch Trim, RHR Right Hand Reverse, 48in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

The 33A/35A series is a narrow stile push pad device popular for its vast application coverage. With many field configurable and upgradeable solutions available, it’s easy to enhance the functionality of an existing device. Mechanical and electronic options include quiet electric latch retraction, delayed and controlled egress, concealed vertical cables and security indicators. It’s one way Von Duprin protects its customers’ investments long into the future. The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others. Architectural design elements differ slightly between the 33A and the 35A. The 35A series device has a smooth mechanism case, while the 33A series has a grooved mechanism case.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 3' - 2' 4" to 3' (711mm to 914 mm) Door size
• 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline From Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center Case Dimensions: 8-3/16" x 1-9/16" x 2-13/32" (208mm x 40mm x 62mm)
• Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar Neutral – 3-13/16" (97 mm)
• Push bar Depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB):
• Includes 1-3/4" (44mm) – 2-1/4" (57mm) wood & metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• ESL: Emergency secure lockdown
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic
• QM: Quiet mechanical
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 1439: Roller, dull black. Ships standard
• 299: Strike, needs to be specified for hollow metal frames

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommendedfor fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
