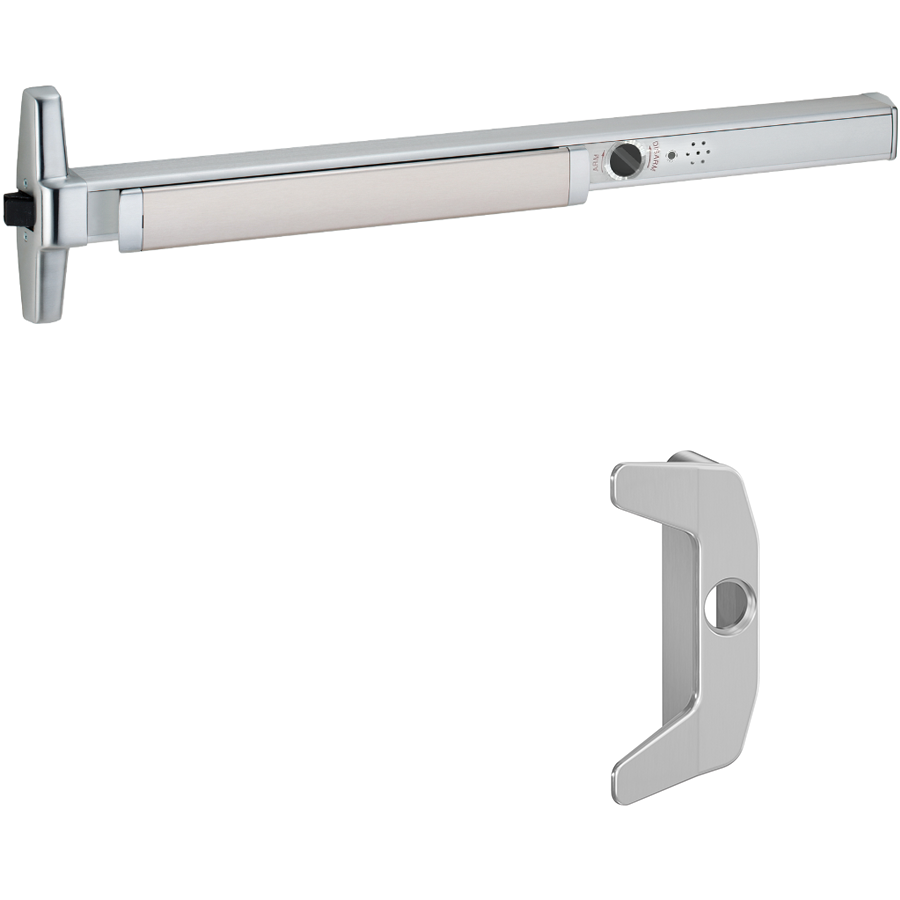

Von Duprin 35A-NL-626-36-RHR ALK Alarmed Narrow Stile Rim Exit Device with 386NL Nightlatch Trim, RHR, 36in

Von Duprin 35A-NL-626-36-RHR ALK KIT is an advanced alarmed narrow stile rim exit device designed for high-traffic environments. Engineered with a robust Grade 1 construction, this exit device ensures safety and security in commercial settings such as schools, hospitals, and government buildings. The 36-inch device features a right-hand reverse handing and a sleek satin chrome finish that complements any architectural style. This unit boasts a modular design, allowing for easy upgrades as technology evolves. Its mechanical and electronic options include quiet electric latch retraction, delayed egress, and security indicators, making it highly adaptable to meet various facility needs. The deadlocking latch bolt features a ¾" throw for added security, while the hex key dogging standard provides convenience for authorized personnel. The device's center case dimensions are 8-3/16" x 1-9/16" x 2-13/32", ensuring a secure fit. Additionally, it is equipped with a night latch trim, allowing key access to retract the latchbolt. With certifications from ANSI and UL, the Von Duprin 35A-NL-626-36-RHR ALK KIT stands out as a reliable choice for those seeking a combination of functionality, security, and style. Upgrade your safety solutions with this versatile exit device that guarantees peace of mind for both occupants and facility managers.

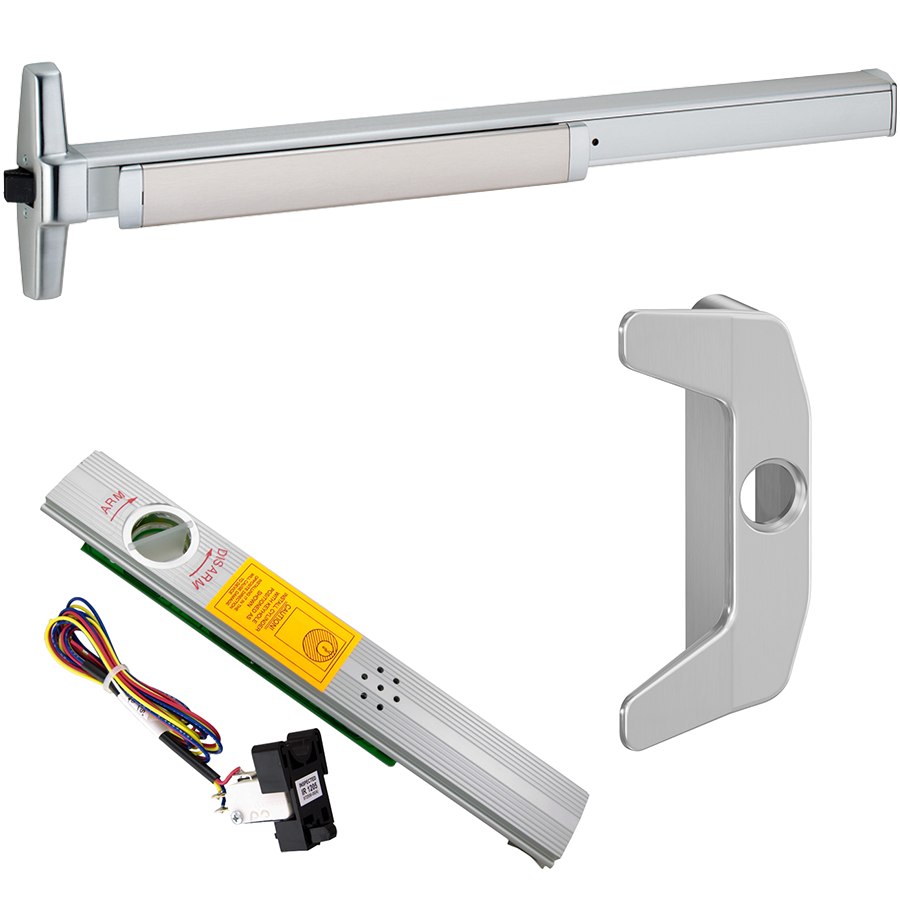

KIT - Alarmed Narrow Stile Rim Exit Device, 386NL Nightlatch Trim, RHR Right Hand Reverse, 36in, Grade 1, 626/US26D Satin Chrome

The 33A/35A series is a narrow stile push pad device popular for its vast application coverage. With many field configurable and upgradeable solutions available, it’s easy to enhance the functionality of an existing device. Mechanical and electronic options include quiet electric latch retraction, delayed and controlled egress, concealed vertical cables and security indicators. It’s one way Von Duprin protects its customers’ investments long into the future. The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others. Architectural design elements differ slightly between the 33A and the 35A. The 35A series device has a smooth mechanism case, while the 33A series has a grooved mechanism case.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 3' - 2' 4" to 3' (711mm to 914 mm) Door size
• 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline From Finished Floor:
• 39-13/16" (1011 mm)
• 39-11/16" (1008 mm) with mullion
• Center Case Dimensions: 8-3/16" x 1-9/16" x 2-13/32" (208mm x 40mm x 62mm)
• Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar Neutral – 3-13/16" (97 mm)
• Push bar Depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB):
• Includes 1-3/4" (44mm) – 2-1/4" (57mm) wood & metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• ESL: Emergency secure lockdown
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic
• QM: Quiet mechanical
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 1439: Roller, dull black. Ships standard
• 299: Strike, needs to be specified for hollow metal frames

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommendedfor fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
