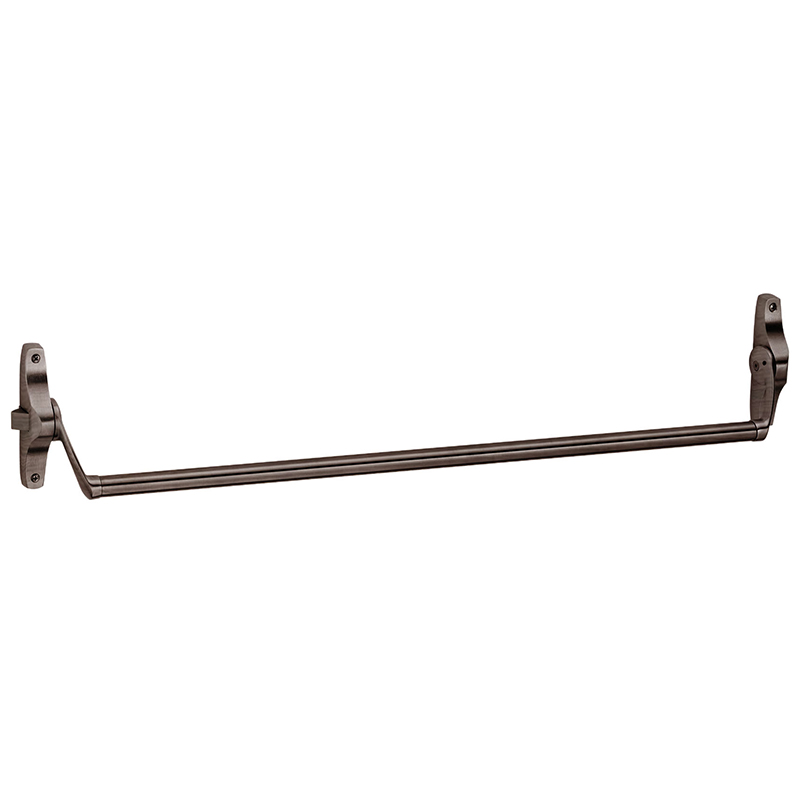

Von Duprin 55EO US10B RHR Narrow Rim Crossbar Exit Device 613

Von Duprin 55EO US10B RHR Narrow Rim Crossbar Exit is a Grade 1 Rim Exit Bar designed to provide reliable egress in commercial settings. Measuring 48 inches, this exit device features a narrow stile crossbar that seamlessly integrates into retro-inspired architecture and historical buildings. Its dark oxidized satin bronze oil-rubbed finish adds a sophisticated touch while ensuring durability. Field-reversible for right-hand reverse installations, this exit device is ideal for both single and double doors with mullions, accommodating stile widths as narrow as 1 3/4 inches. The device is UL listed, making it suitable for accident hazard installations. It operates on a hex key dogging mechanism, ensuring ease of access when needed. The 55 Series includes a concealed vertical rod exit device with dummy trim, designed for functionality and aesthetics. With a crossbar height of 36 13/16 inches at center, it offers optimal usability. Additionally, the product comes with a comprehensive screw pack for installation on 1 3/4-inch and 2 1/4-inch thick doors, ensuring a secure fit. Choose the Von Duprin 55EO for a reliable, stylish, and functional exit solution that meets the demands of modern commercial spaces while honoring traditional designs.

Narrow Rim Crossbar Exit 613

Grade 1 Rim Exit Bar, Narrow Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible, Right Hand Reverse

The 55 Series from Von Duprin are exit device crossbars with a classic design. The 55 Series is a narrow stile device and commonly used in retro-inspired architecture and historical buildings.

Concealed Vertical Rod Exit Device, Dummy Trim.

55 Series devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Fits doors stiles as narrow as 1 3/4" (44 mm).

• Device functions Device ships EO/DT/NL/L
• Crossbar length 42" (1067 mm)
• Crossbar height to finished floor 36 13/16" (935 mm) at center
• Lock stile case 7 1 /4" x 1 3 /16" x 2 1 /4" (184 mm x 30 mm x 57 mm)
• Hinge stile case 7 1 /4" x 1 3 /16" x 2 1 /4" (184 mm x 30 mm x 57 mm)
• Crossbar tubing 1" (25 mm)
• Projection Crossbar neutral – 3 3/4" (95 mm) Crossbar depressed – 2 3/8" (60 mm)
• Latch bolt 3/4" (19 mm), throw
• Fasteners and Sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included.
