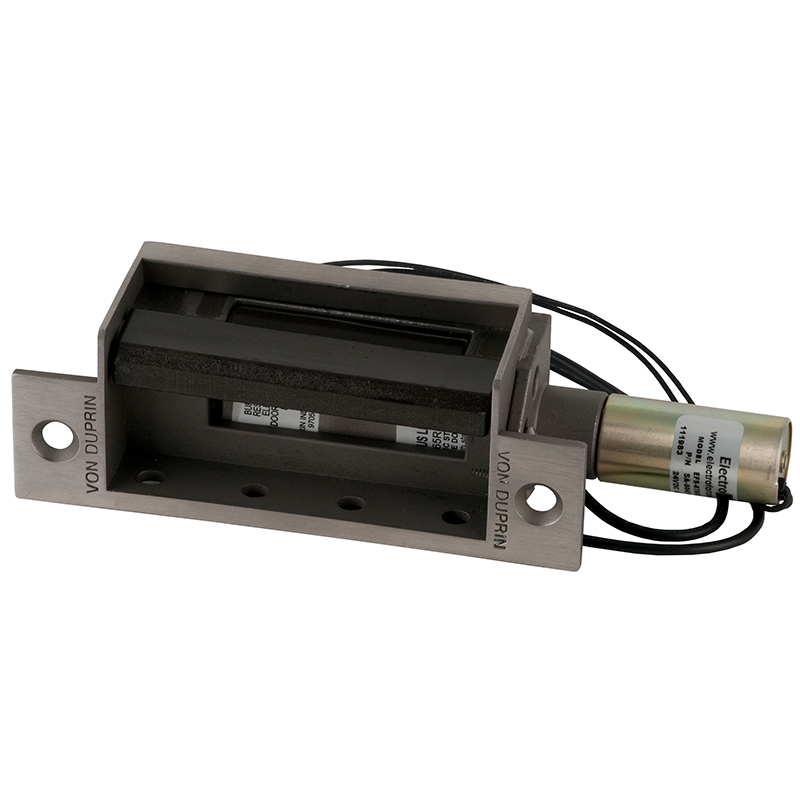

Von Duprin 6210 24V 32D FS Electric Strike, Mts 630 offers robust security with its Grade 1 construction and fail-safe operation, designed to provide peace of mind for single door applications. This electric strike operates on 24 VDC and features a durable satin stainless steel finish, ensuring both longevity and aesthetic appeal. Measuring 4-7/8" x 1-1/4", it is compatible with mortise locks on hollow metal or aluminum frames, making it a versatile choice for various installations. Engineered for resilience, the 6200 Series strikes are UL1034 listed, showcasing their ability to withstand significant abuse with a hold-force rating of 1500 lbs and static strength of 1300 lbs. The non-handed design allows for greater flexibility during installation, while the adjustable strike box compensates for any door or frame misalignment. Additionally, the two-piece plug connectors facilitate easy installation and maintenance. Recognized for its durability, the strike is built to endure up to 1,000,000 cycles, making it ideal for high-traffic environments. With its ANSI 156.5 Grade 1 rating and options for various finishes, the Von Duprin 6210 provides a reliable solution for enhancing security and managing traffic control in commercial settings.
Electric Strike, Mts 630
Grade 1 Electric Strike, Fail Safe (Electrically Locked) 24 VDC, 4-7/8" x 1-1/4" Faceplate, For use with Mortise Locks on Single Doors, Hollow Metal or Aluminum Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Amp Draw: 330mA
Application: Single Door
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Universal
Country of origin: USA
Faceplate Size: 4-7/8" x 1-1/4"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
For Use With: Mortise Locks
Frame Application: Hollow Metal or Aluminum
Frame Depth: 1-3/4"
Function: Fail Safe
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.63"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88"
Product Height: 1.56"
Product Length: 4.88"
Product Width: 1.25"
Ramp Cut Out: 3-3/8"
Restrictions: None
Series: 6200 Series Electric Strikes
Ship Weight: 1.8 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
Upc: 1.95E+11
