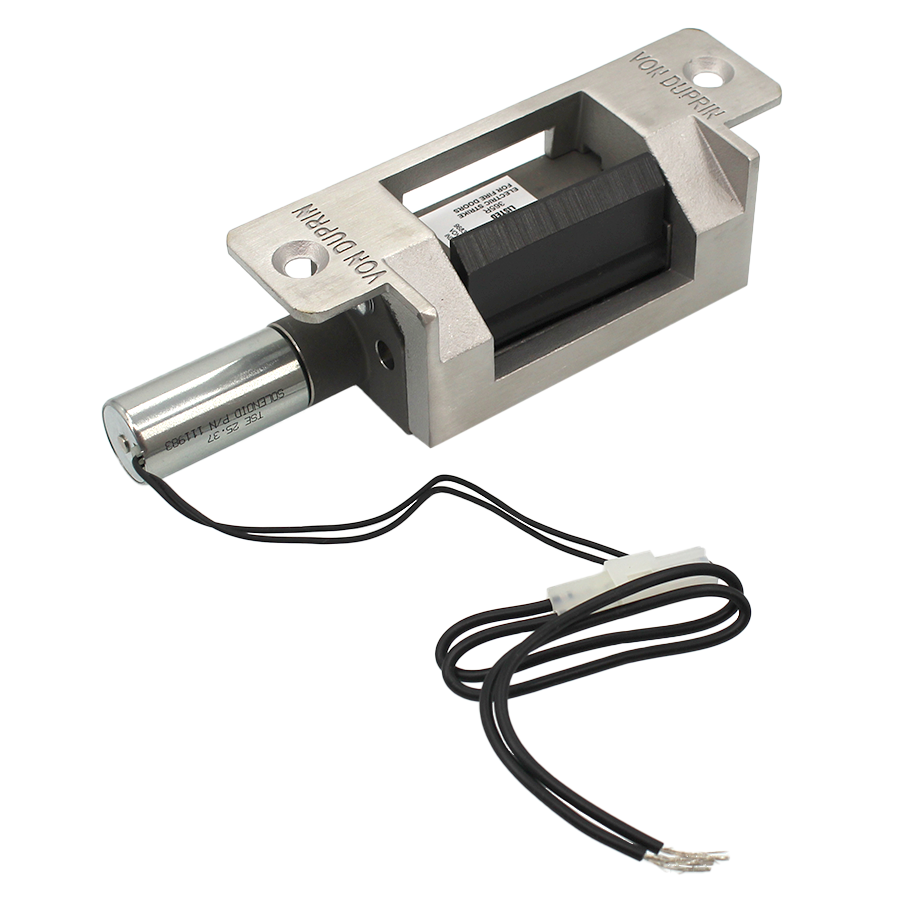

Von Duprin 6211AL-630-24VDC-FSE Fire Rated Electric Strike for Mortise/Cylindrical Locks, 24VDC, Fail SecureVon Duprin 6211AL-630-24VDC-FSE Fire Rated Electric Strike offers a robust solution for securing your aluminum frame doors. Designed for both mortise and cylindrical locks, this electric strike combines durability with advanced functionality. Constructed from heavy-duty satin stainless steel, it is fully compliant with UL 1034 and UL 10C standards, ensuring resistance against burglary and fire hazards. Operating on a standard 24 VDC, the 6211AL model is configured in a fail secure mode, providing reliable security during power outages. The electric strike allows for remote door access through a credential reader or entry button, making it ideal for both retrofit applications and new constructions. Its flexible design features 17 available configurations, accommodating various locksets, including popular brands such as Von Duprin, Adams Rite, and Schlage. With a latchbolt throw of 3/4" and a faceplate length of 4-7/8", installation is straightforward, thanks to the included two-piece plug connectors that simplify servicing. This model also supports optional accessories like dual monitor switches and entry buzzers, enhancing its functionality for access control systems. Choose the Von Duprin 6211AL-630 for a secure, reliable, and customizable access solution suitable for any professional setting.
Fire Rated Electric Strike for Mortise or Cylindrical Locks Radius Corner, 24VDC, Fail Secure FSE, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
Von Duprin electric strikes are known for their reliability, durability and security. The 6200 series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is fully UL 1034 and UL 10C listed. 6200 Series electric door strikes are designed for use with a variety of mortise or cylindrical locksets. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6200 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs. Use 6200 series electric strikes for retrofit applications or new construction.
Features:
- 17 configurations available for cylindrical and mortise applications
- Heavy-duty stainless steel construction
- 24 VDC standard with 12, 16 and 28 VDC operation optional
- Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
- Options include rectifier kit for VAC to VDC conversion, dual monitor switches, entry buzzer and Allegion Connect wire extension
- Six popular finishes available to suite with existing hardware
- UL 10C 3-hour fire-rated (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- Static strength: 1500 lbs
- Dynamic strength: 70 ft-lbs
- UL 294 listed for access control system
Power Requirements:
| Model |
Voltage |
Current |
Duty |
Amps |
Ohms |
| 6200 |
12V |
DC |
Continuous |
0.60 |
21 |
| 6200 |
16V |
DC |
Continuous |
0.40 |
38 |
| 6200 |
24V |
DC |
Continuous |
0.33 |
83 |
| 6200 |
28V |
DC |
Continuous |
0.25 |
111 |
Specifications:
- Model number: 6211AL
- Retrofits model: FA 722
- Latchbolt throw: 3/4"
- Face plate length: 4-7/8"
- Backbox depth: 1-11/16"
- Lockset: Mortise without deadbolt, cylindrical
- Number of doors: Single
- Door and frame type: Aluminum
- Options:
- DS or DS-LC (dual monitor switches)
- EB (entry buzzer - fail-secure only
- 28 VDC AC rectifier kit
- 16 VDC solenoid
Mortise Lockset Compatibility:
- Von Duprin: Model number - 7500
- Adams Rite: Model number - 4510, 4710
- Baldwin: Model number - 6000
- Best: Model number - 24H, 30H, 45H
- Corbin: Model number - 9000
- Falcon: Model number - MA2300, MA2500, MA2600, MA3300, MA3500, MA3600
- Precision Model number - Mortise
- Russwin Model number - Mortise
- Sargent: Model number - 7700, 8100, 9000
- Schlage: Model number - L9000, K30, K40, K50, K60
- Yale: Model number - 7030, 7130, 8600, 8700
Finishes:
- US3/605 - Plated polished brass
- US4/606 - Plated satin brass
- US10/612 - Plated satin bronze
- US10B/613 - Plated dark bronze
- US32/629 - Stainless steel, polished
- US32D/630 - Stainless steel, satin
Attributes
Alternate Codes: 6211AL-630-24VDC-FSE, 6211AL63024VDCFSE, VON6211AL 24V 32D, VON6211AL 24V 32D., VON6211AL-24VDC 32D, VON6211AL 24V US32D, VON6211AL 630, VON6211AL-FSE-24VDC-630, VON6211AL FSE 24VDC US32D, VON6211AL-FSE-630, VON6211AL FSE US32D, VON6211AL-FSE US32D, VON62
Category: Access Control, Electric Strikes
Current Draw: 0.25A @ 28VDC, 0.33A @ 24VDC, 0.40A @ 16VDC, 0.60A @ 12VDC
Door Application: Electric Strikes
Door Frame Type: Aluminum Frame
Electric Strike Compatibility: Cylindrical Lockset, Mortise Lockset
Electric Strike Faceplate Size: 4-7/8" x 1-1/4"
Electrical Option: Connectors
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: 630
Finish Color: Satin Stainless Steel
Grade: Grade 1
Manufacturer: Von Duprin
Material: Stainless Steel
Series: 6200
Throw: 3/4"
Voltage: 24
Voltage Type: VDC - Direct
