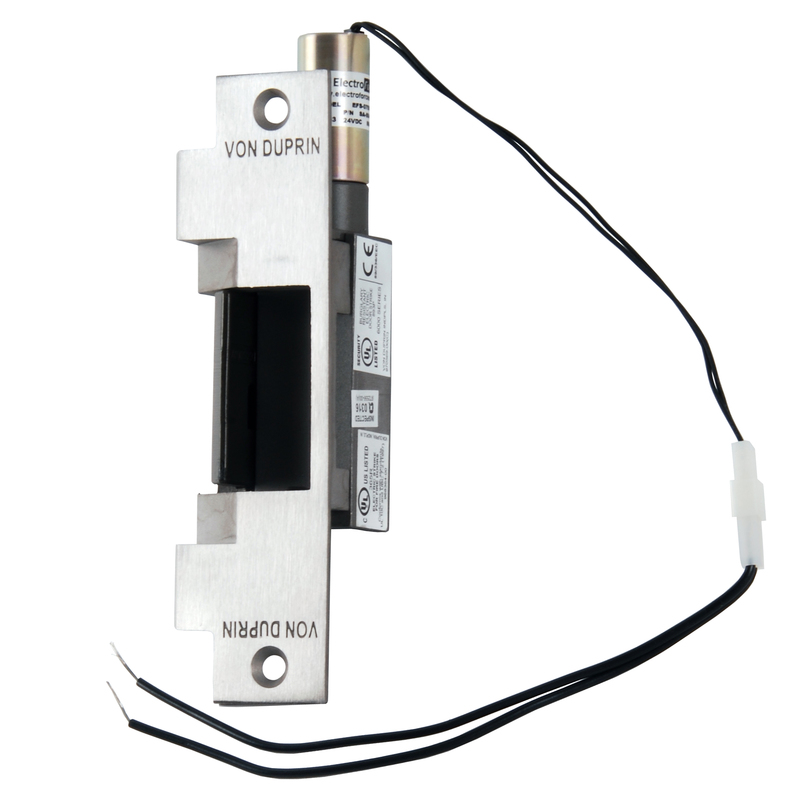

Von Duprin 6212 24V 32D Electric Strike, Mts/Cyl 630 offers a robust and reliable security solution designed for single doors in commercial settings. This Grade 1 electric strike operates on a fail secure mechanism, ensuring that the door remains locked when power is lost. With a 24 VDC operation and a heavy-duty satin stainless steel finish, it not only provides aesthetic appeal but also withstands the rigors of daily use. Measuring 6-3/8" x 1-1/4", the strike is engineered for compatibility with both cylindrical and mortise locks, making it versatile for various door configurations. The non-handed design allows for greater installation flexibility, while the adjustable strike box accommodates misalignments between the door and frame, ensuring reliable performance in a range of conditions. Certified to ANSI 156.5 Grade 1 standards, this electric strike boasts a 1500 lb hold-force rating and is UL1034 listed for burglary resistance. Additionally, it is fire-rated, making it suitable for applications where safety is paramount. With an endurance rating of 1,000,000 cycles, the Von Duprin 6212 is built to last, making it an excellent choice for security-conscious professionals.
Electric Strike, Mts/Cyl 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 24 VDC, 6-3/8" x 1-1/4" Faceplate, Fire Rated, For use with Cylindrical or Mortise Locks on Single Doors, Hollow Metal or Aluminum Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Amp Draw: 330mA
Application: Single Door
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 6-3/8" x 1-1/4"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Cylindrical/Mortise Locks
Frame Application: Hollow Metal or Aluminum
Frame Depth: 1-21/32"
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.63"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88"
Product Height: 1.47"
Product Length: 6.38"
Product Width: 1.25"
Ramp Cut Out: 3-3/8"
Restrictions: None
Series: 6200 Series Electric Strikes
Ship Weight: 1.8 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
