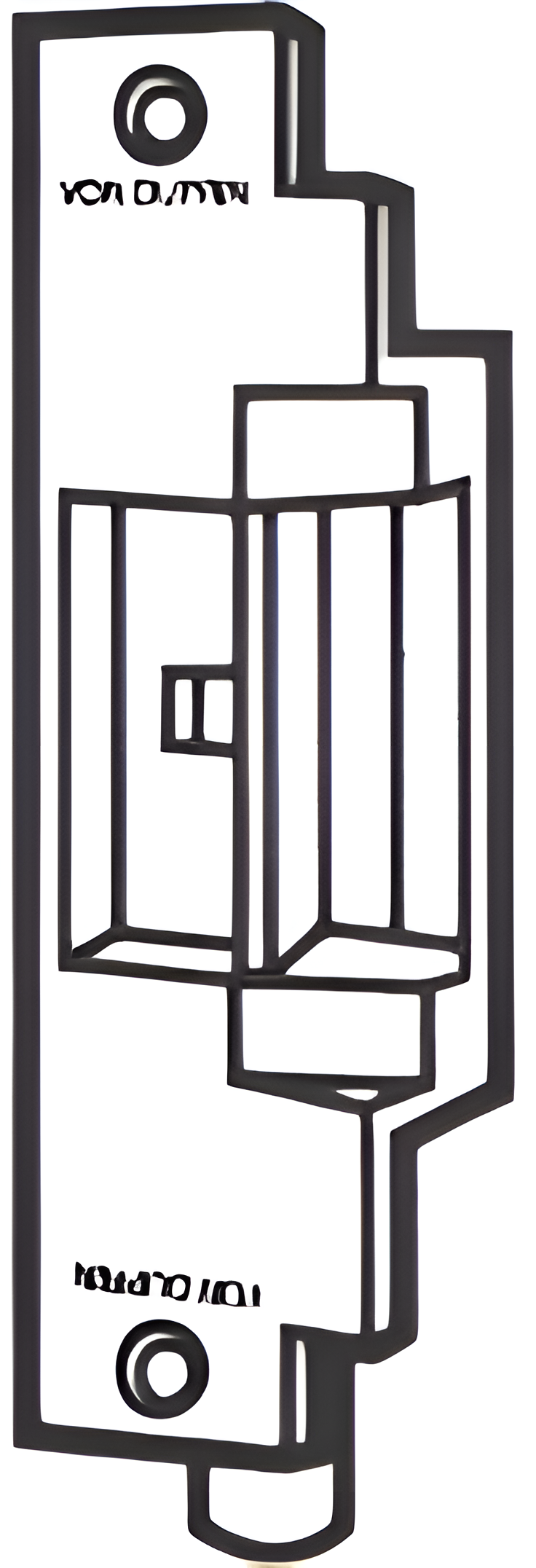

Von Duprin 6212-630-24VDC-FSE Fire Rated Electric Strike, 24VDC, Fail Secure, Satin Stainless Steel

Von Duprin 6212-630-24VDC-FSE Fire Rated Electric Strike provides a robust solution for securing your premises with advanced access control. Designed for both mortise and cylindrical locks, this electric strike features a fail secure (FSE) mode, ensuring that when power is lost, the door remains locked. Constructed from heavy-duty satin stainless steel, it meets UL 10C and UL 1034 standards, making it ideal for high-security applications. This model operates on a 24VDC power supply and boasts a static strength of 1500 lbs and a dynamic strength of 70 ft-lbs, ensuring it can withstand significant force. The two-piece plug connectors simplify installation and maintenance, while the variety of configurations available allows for easy integration into existing systems. Compatible with a wide range of locksets, including those from Von Duprin, Adams Rite, and Schlage, this strike is suitable for both retrofit and new construction projects. It also offers optional features like dual monitor switches and an entry buzzer for enhanced functionality. With its sleek satin stainless steel finish and versatile design, the Von Duprin 6212-630-24VDC-FSE is the perfect choice for professionals seeking reliability, durability, and security in access control solutions.

Fire Rated Electric Strike for Mortise or Cylindrical Locks, 24VDC, Fail Secure FSE, 630/US32D Satin Stainless Steel

Von Duprin electric strikes are known for their reliability, durability and security. The 6200 series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is fully UL 1034 and UL 10C listed. 6200 Series electric door strikes are designed for use with a variety of mortise or cylindrical locksets. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6200 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs. Use 6200 series electric strikes for retrofit applications or new construction.

Features:

• 17 configurations available for cylindrical and mortise applications
• Heavy-duty stainless steel construction
• 24 VDC standard with 12, 16 and 28 VDC operation optional
• Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
• Options include rectifier kit for VAC to VDC conversion, dual monitor switches, entry buzzer and Allegion Connect wire extension
• Six popular finishes available to suite with existing hardware
• UL 10C 3-hour fire-rated (fail secure only)
• UL 1034 listed for burglary-resistant electric door strikes
• Static strength: 1500 lbs
• Dynamic strength: 70 ft-lbs
• UL 294 listed for access control system

Power Requirements:

Specifications:

• Model number: 6212
• Retrofits model: VD 3146
• Latchbolt throw: 3/4"
• Face plate length: 6-3/8"
• Backbox depth: 1-21/32"
• Lockset: Mortise without deadbolt, cylindrical
• Number of doors: Single
• Door and frame type: Hollow metal/aluminum
• Options:
• DS or DS-LC (dual monitor switches)
• EB (entry buzzer - fail-secure only
• 28 VDC AC rectifier kit
• 16 VDC solenoid
• Application Notes: Fits modified ANSI 115.2 cutout. Designed to replace Von Duprin 3146

Mortise Lockset Compatibility:

• Von Duprin: Model number - 7500
• Adams Rite: Model number - 4510, 4710
• Baldwin: Model number - 6000
• Best: Model number - 24H, 30H, 45H
• Corbin: Model number - 9000
• Falcon: Model number - MA2300, MA2500, MA2600, MA3300, MA3500, MA3600
• Precision Model number - Mortise
• Russwin Model number - Mortise
• Sargent: Model number - 7700, 8100, 9000
• Schlage: Model number - L9000, K30, K40, K50, K60
• Yale: Model number - 7030, 7130, 8600, 8700

Finishes:

• US3/605 - Plated polished brass
• US4/606 - Plated satin brass
• US10/612 - Plated satin bronze
• US10B/613 - Plated dark bronze
• US32/629 - Stainless steel, polished
• US32D/630 - Stainless steel, satin
