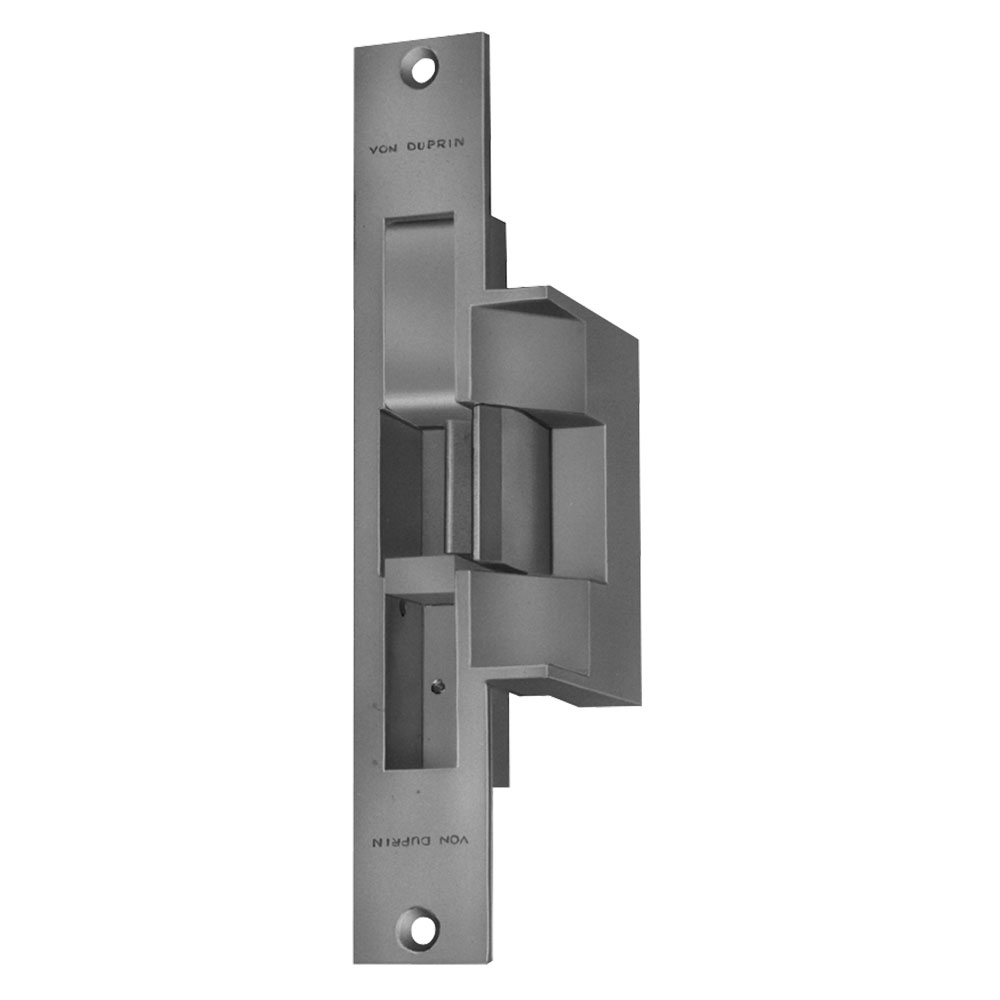

Von Duprin 6216 24V 32D Electric Strike, Mts/Cyl 630 offers unparalleled security and reliability for commercial applications. This Grade 1 electric strike is designed to be fail secure, meaning it remains locked when power is off, enhancing safety and control. With a robust 24 VDC operation, it features a 9" x 1-3/8" fire-rated faceplate that is compatible with mortise and deadbolt locks on single doors, suitable for hollow metal, aluminum, or wood frames. Constructed from durable stainless steel, the Von Duprin 6216 is UL1034 listed for burglary resistance and UL10C certified for fire door applications. Its non-handed design allows for flexible installation, while the adjustable strike box compensates for any misalignment, ensuring a perfect fit every time. This electric strike is rated for a static strength of 1,300 lbs and a dynamic strength of 70 ft-lbs, with an impressive endurance of 1,000,000 cycles. Designed for both retrofit and new construction, the 6216 is the ideal choice for those seeking a reliable, high-performance strike that meets ANSI 156.5 Grade 1 standards. Available in a satin stainless steel finish, it provides a seamless look that integrates well with existing hardware.
Electric Strike, Mts/Cyl 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 24 VDC, 9" x 1-3/8" Faceplate, Fire Rated, For use with Mortise/Deadbolt Locks on Single Doors, Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Amp Draw: 330mA
Application: Single Door
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Size: 9" x 1-3/8"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Mortise/Deadbolt Locks
Frame Application: Hollow Metal, Aluminum, or Wood
Frame Depth: 3-5/32"
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.63"
Pack Length: 10.5"
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88"
Product Height: 2.88"
Product Length: 9"
Product Width: 1.38"
Ramp Cut Out: 3-3/4"
Restrictions: None
Series: 6200 Series Electric Strikes
Ship Weight: 3.1 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
